Timing Drive Components: Notes

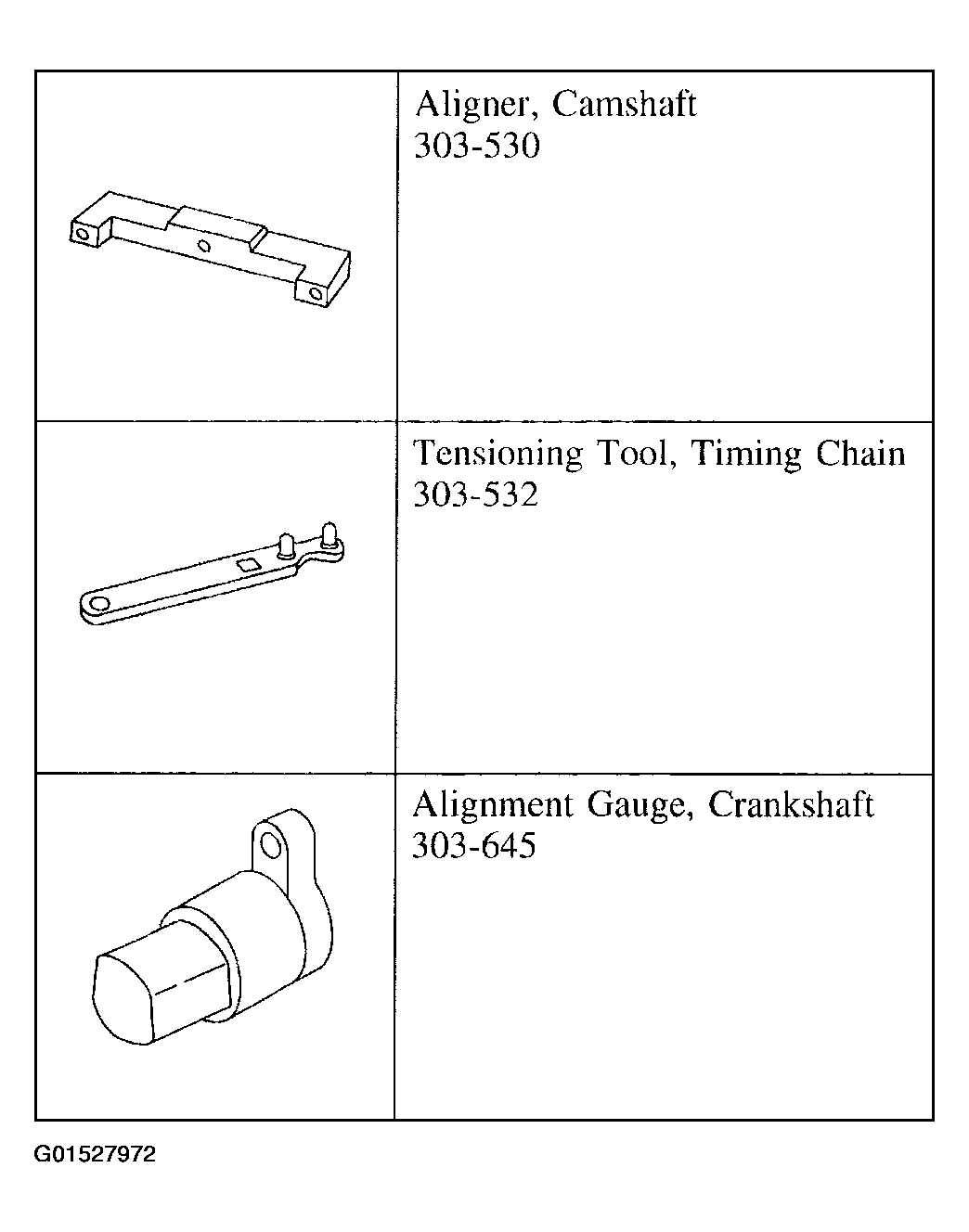

Special Tool(s)

1. Remove the engine front cover. For additional information, refer to ENGINE FRONT COVER .
2. Remove the components in the order indicated in the following illustration and table. To remove individual components, only carry out the listed steps.

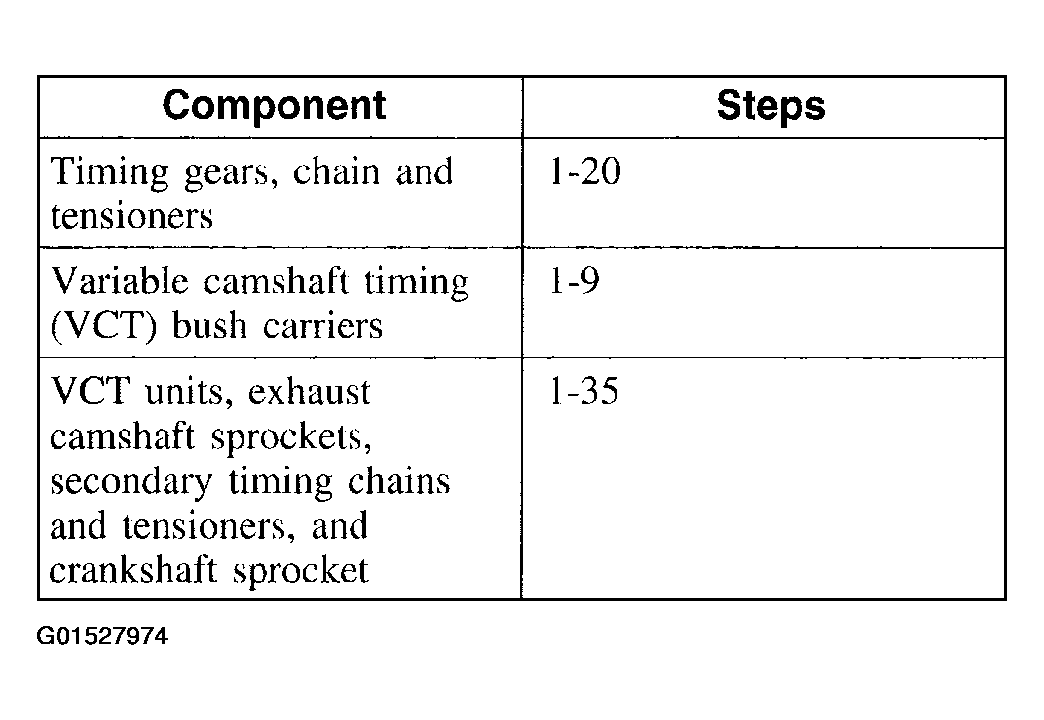

   Fig 3: Timing Drive Components Removal Chart

   Courtesy of FORD MOTOR CO.
3. Remove the components in the order indicated in the following illustration and table.

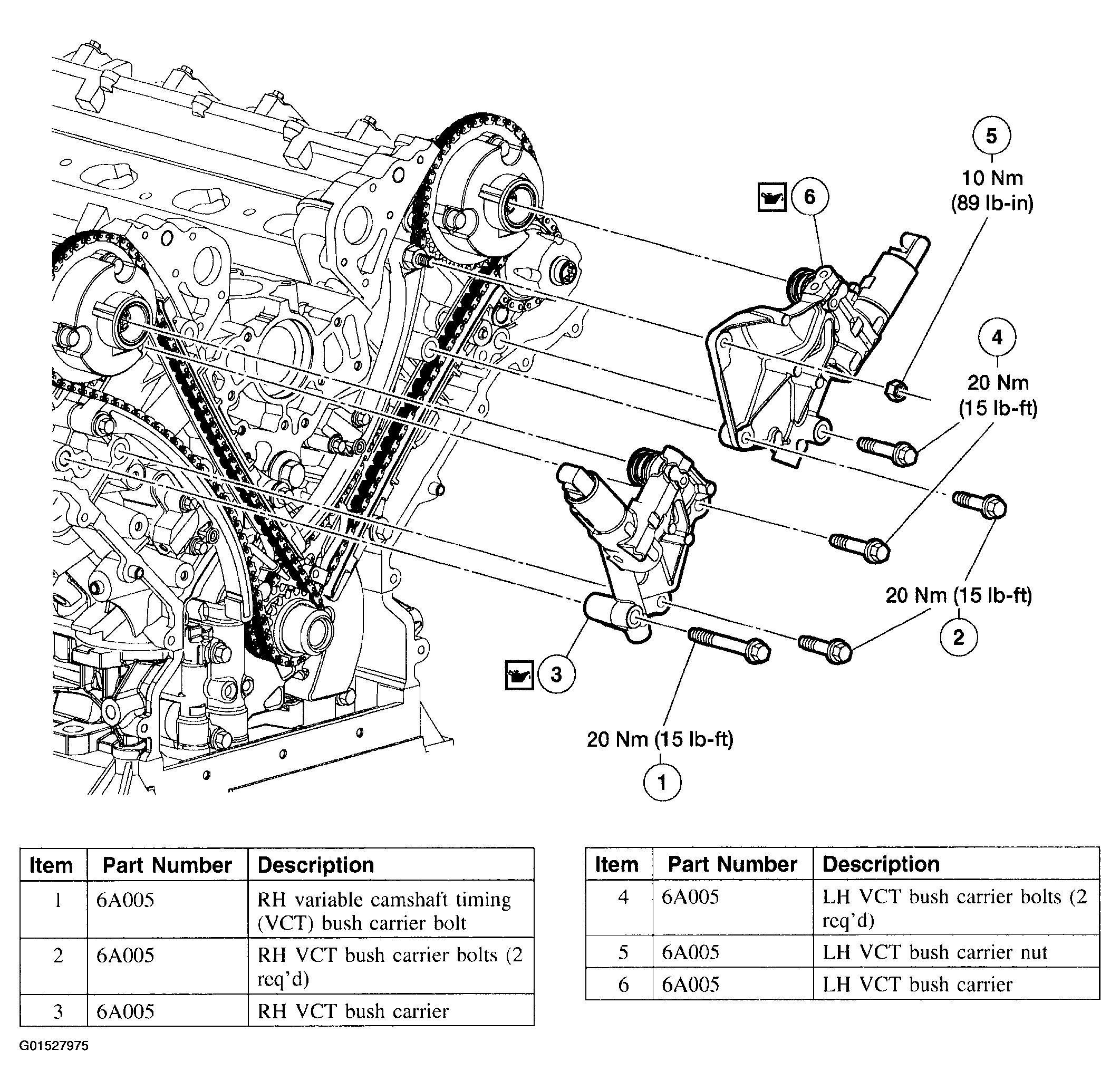

   Fig 4: Timing Drive Component Locator (Items 1-6)

   Courtesy of FORD MOTOR CO.
4. Remove the components in the order indicated in the following illustration and table.

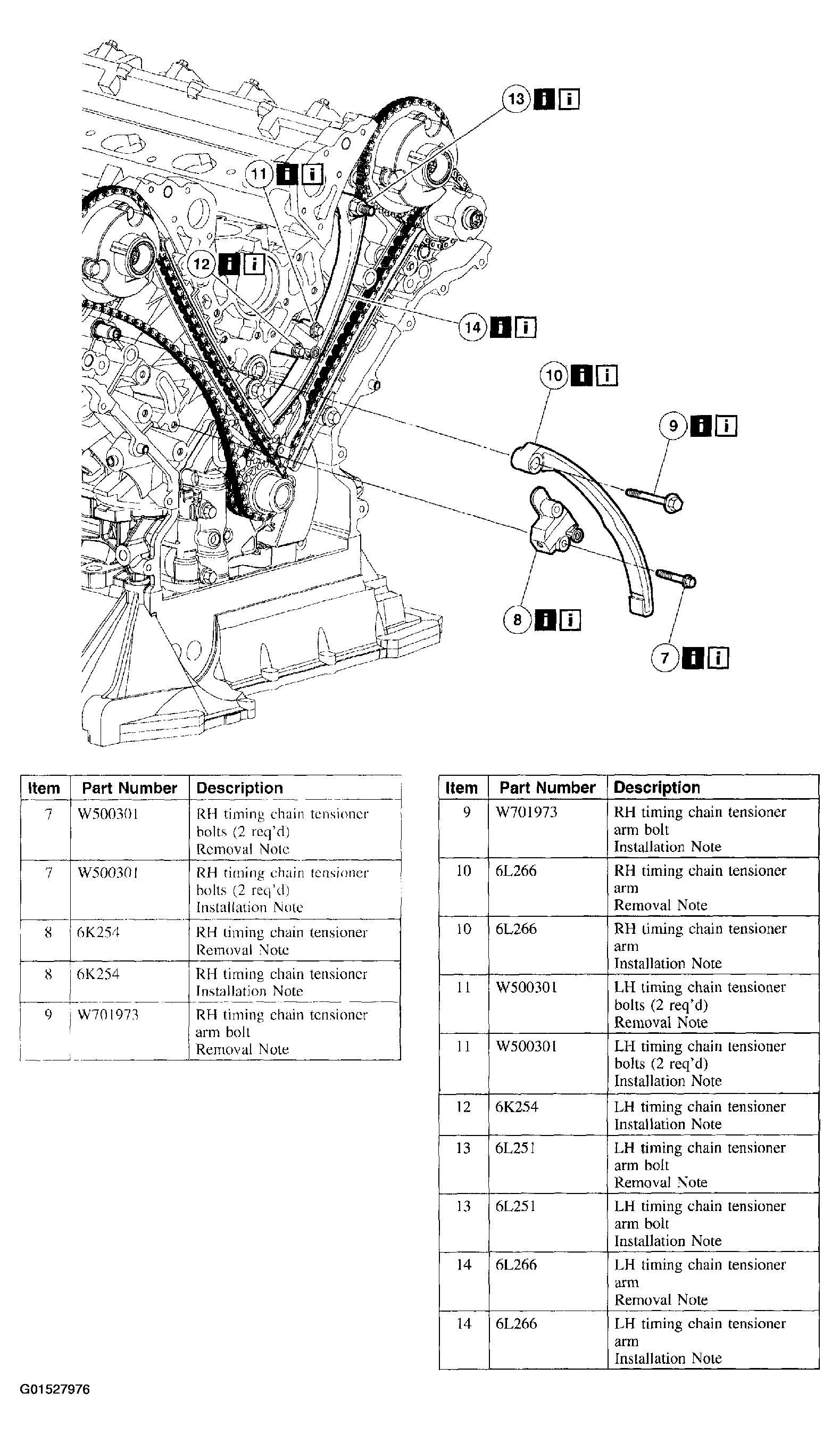

   Fig 5: Timing Drive Component Locator (Items 7-14)

   Courtesy of FORD MOTOR CO.
5. Remove the components in the order indicated in the following illustration and table.

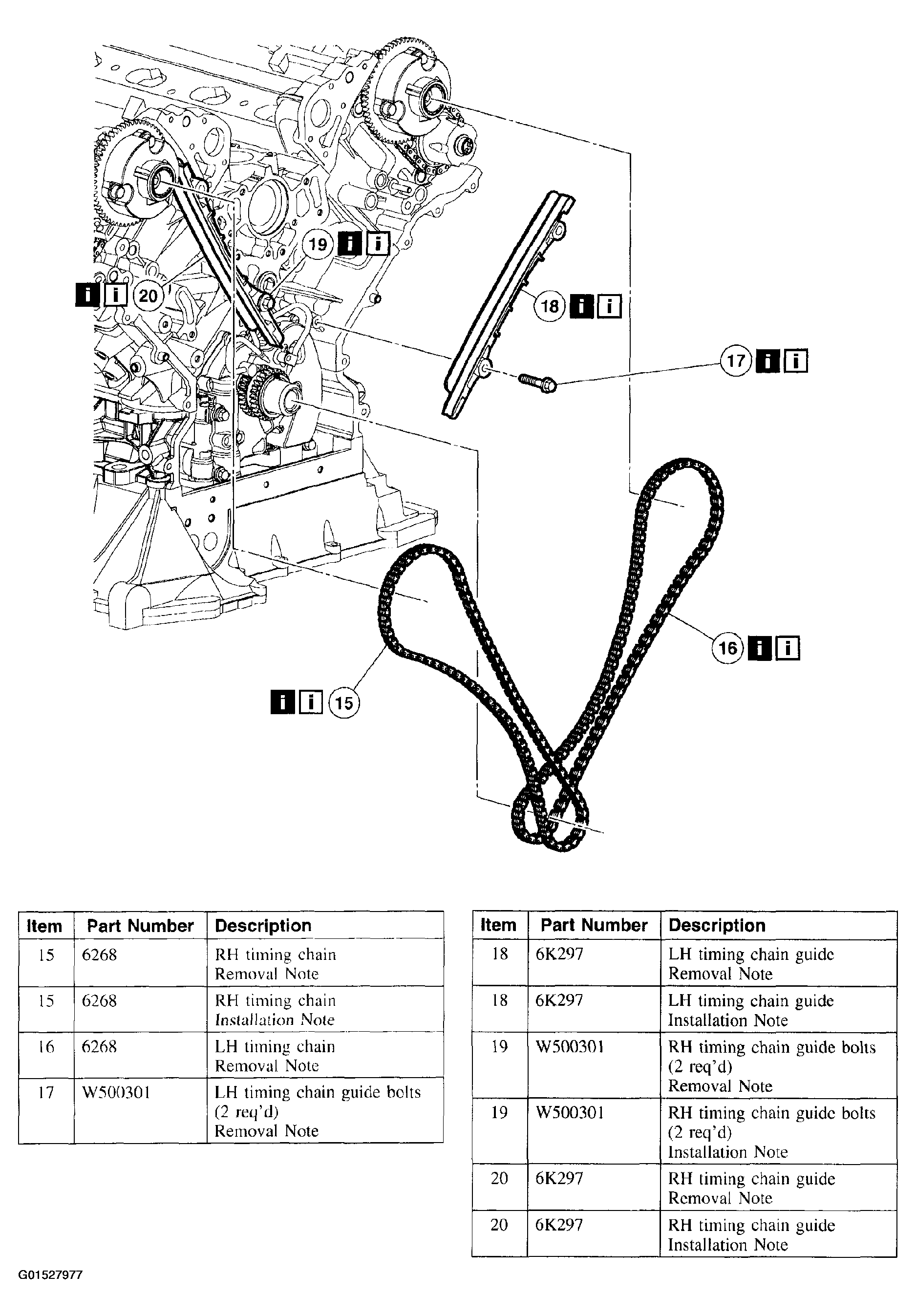

   Fig 6: Timing Drive Component Locator (Items 15-20)

   Courtesy of FORD MOTOR CO.
6. Remove the components in the order indicated in the following illustration and table.
   Fig 7: Timing Drive Component Locator (Items 21-23)

   Courtesy of FORD MOTOR CO.

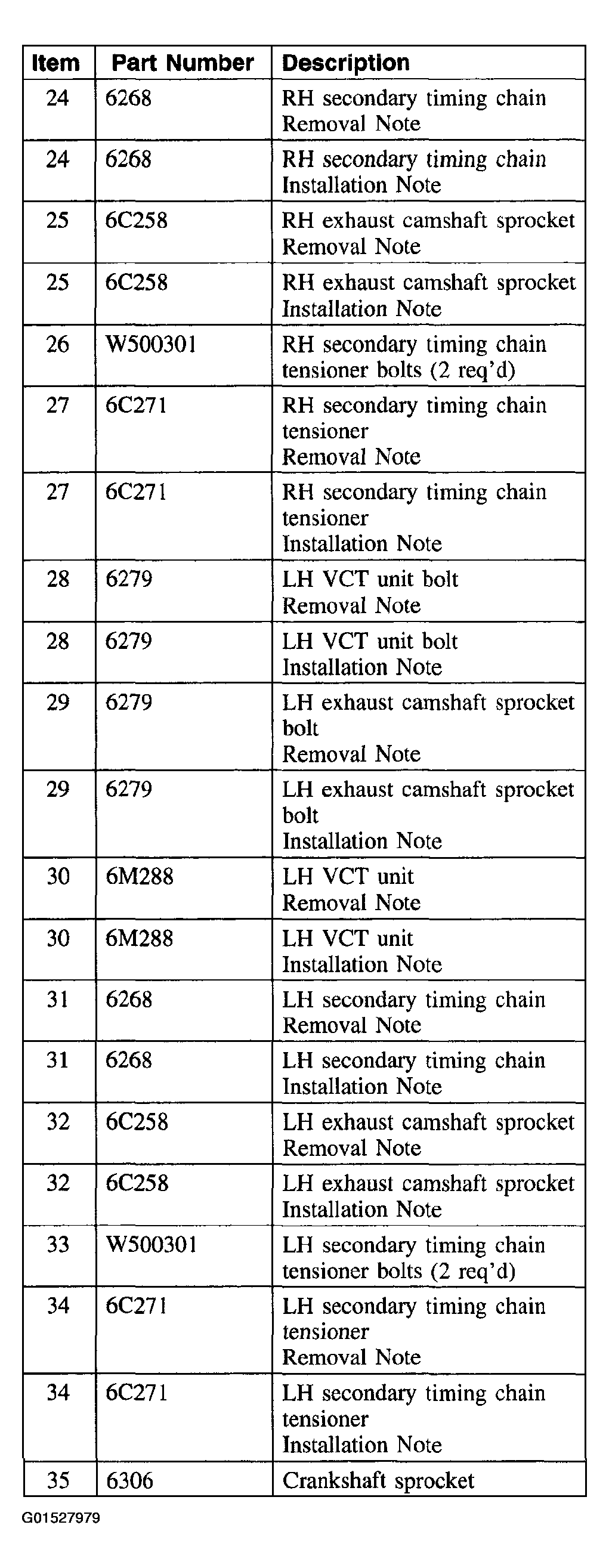

   Fig 8: Item Description Chart (24-34)

   Courtesy of FORD MOTOR CO.
7. To install, reverse the removal procedure.
