Valve Cover LH: Notes

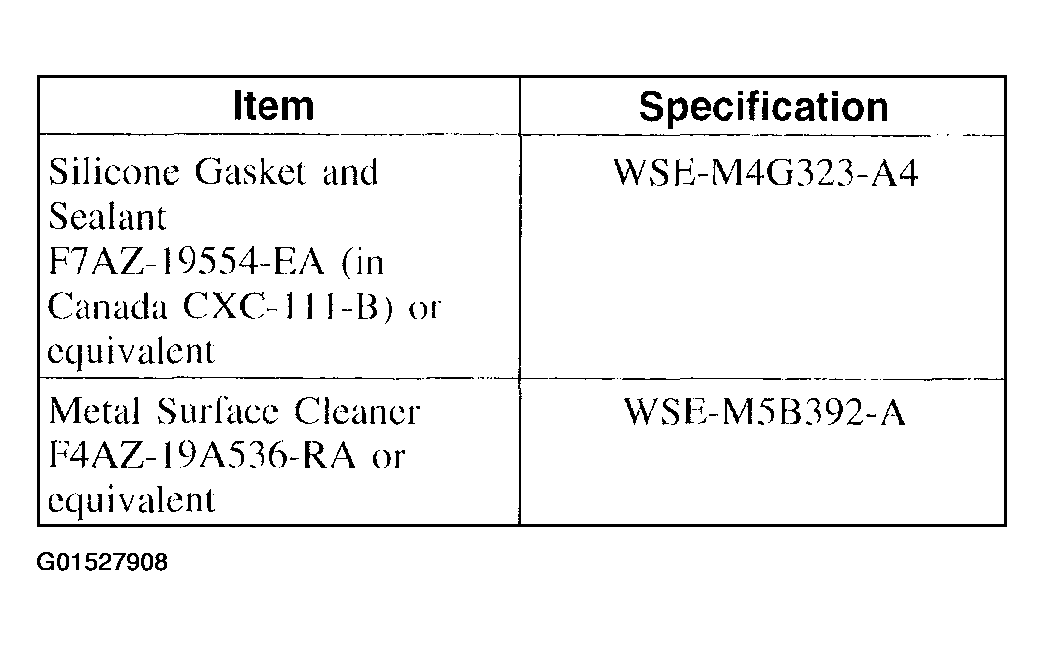

Fig 1: Material Chart
G01527908Courtesy of FORD MOTOR CO.
  1. Remove the air cleaner outlet tube. .
  2. Remove the LH ignition coils. For additional information, refer to IGNITION COILS & SPARK PLUGS .
  3. Remove the components in the order indicated in the following illustration and table.

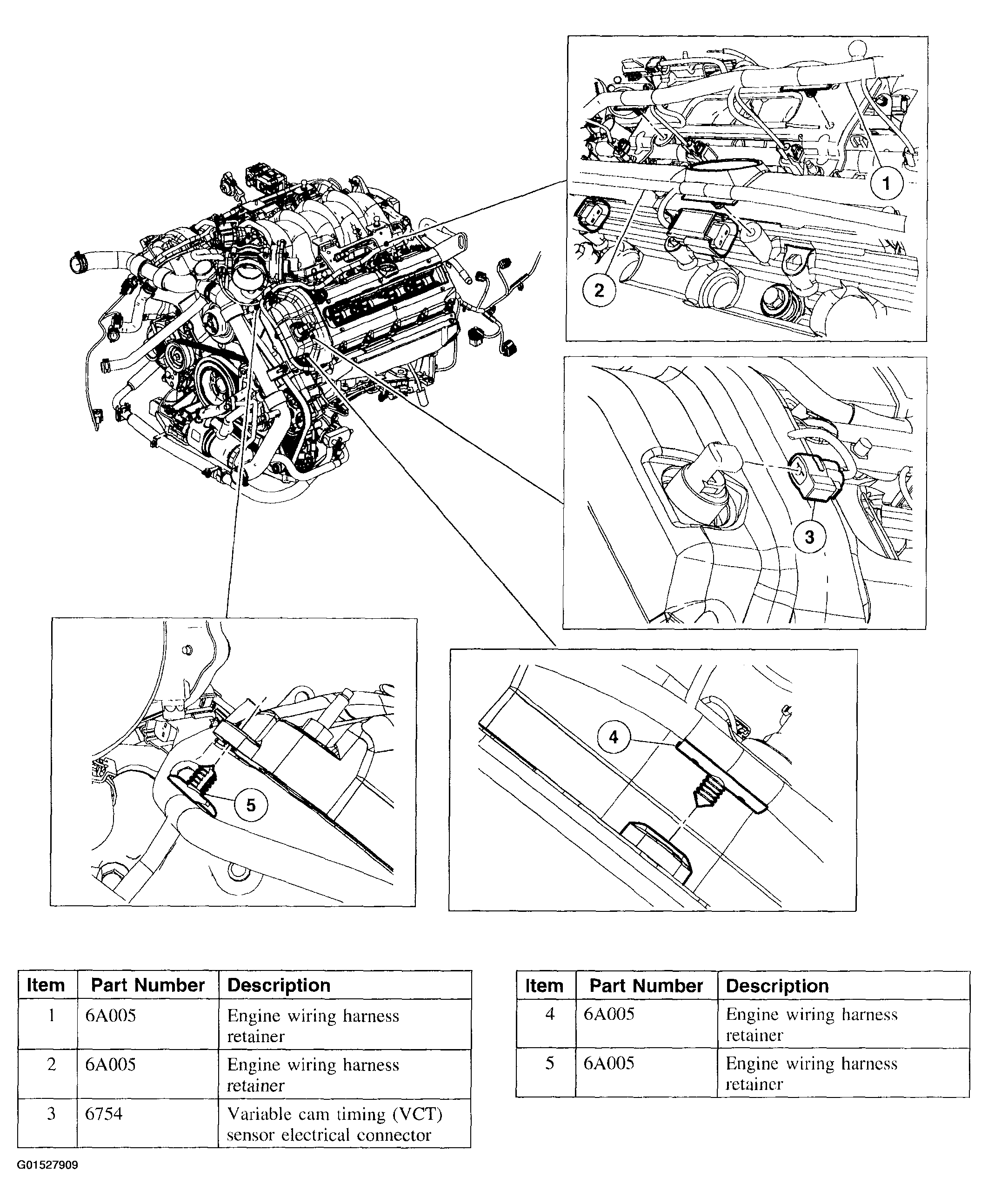

    Fig 2: LH Valve Cover Component Removal Chart (Items 1-5)
    G01527909Courtesy of FORD MOTOR CO.
  4. Remove the components in the order indicated in the following illustration and table.

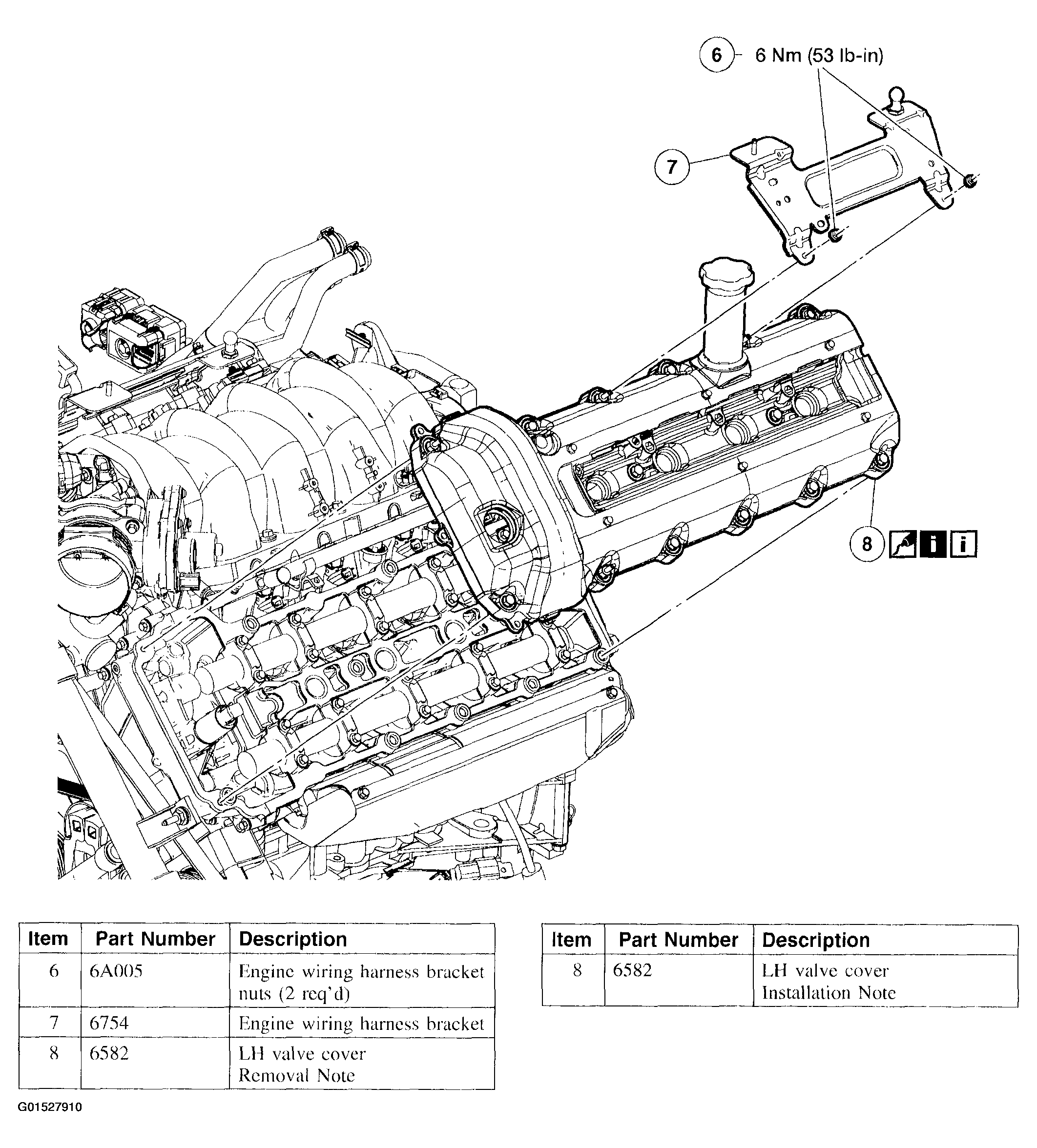

    Fig 3: LH Valve Cover Component Removal Chart (Items 6-8)
    G01527910Courtesy of FORD MOTOR CO.
