Valve Cover RH: Notes

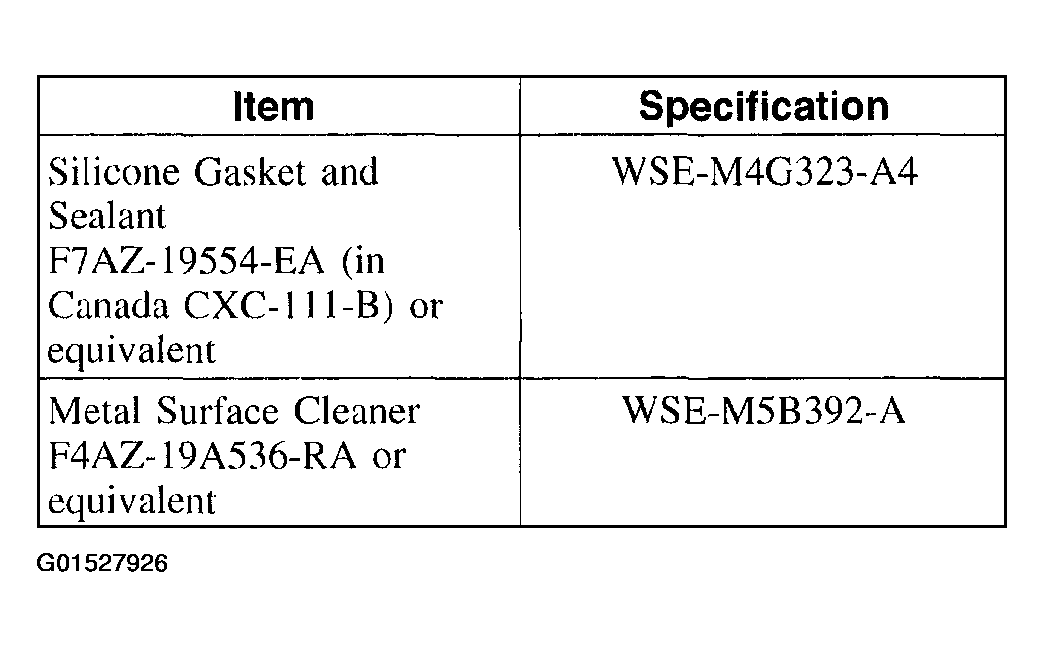

Fig 1: Material Chart
G01527926Courtesy of FORD MOTOR CO.
  1. Remove the air cleaner outlet tube. .
  2. Remove the RH ignition coils. For additional information, refer to IGNITION COILS & SPARK PLUGS .
  3. Remove the components in the order indicated in the following illustration and table.

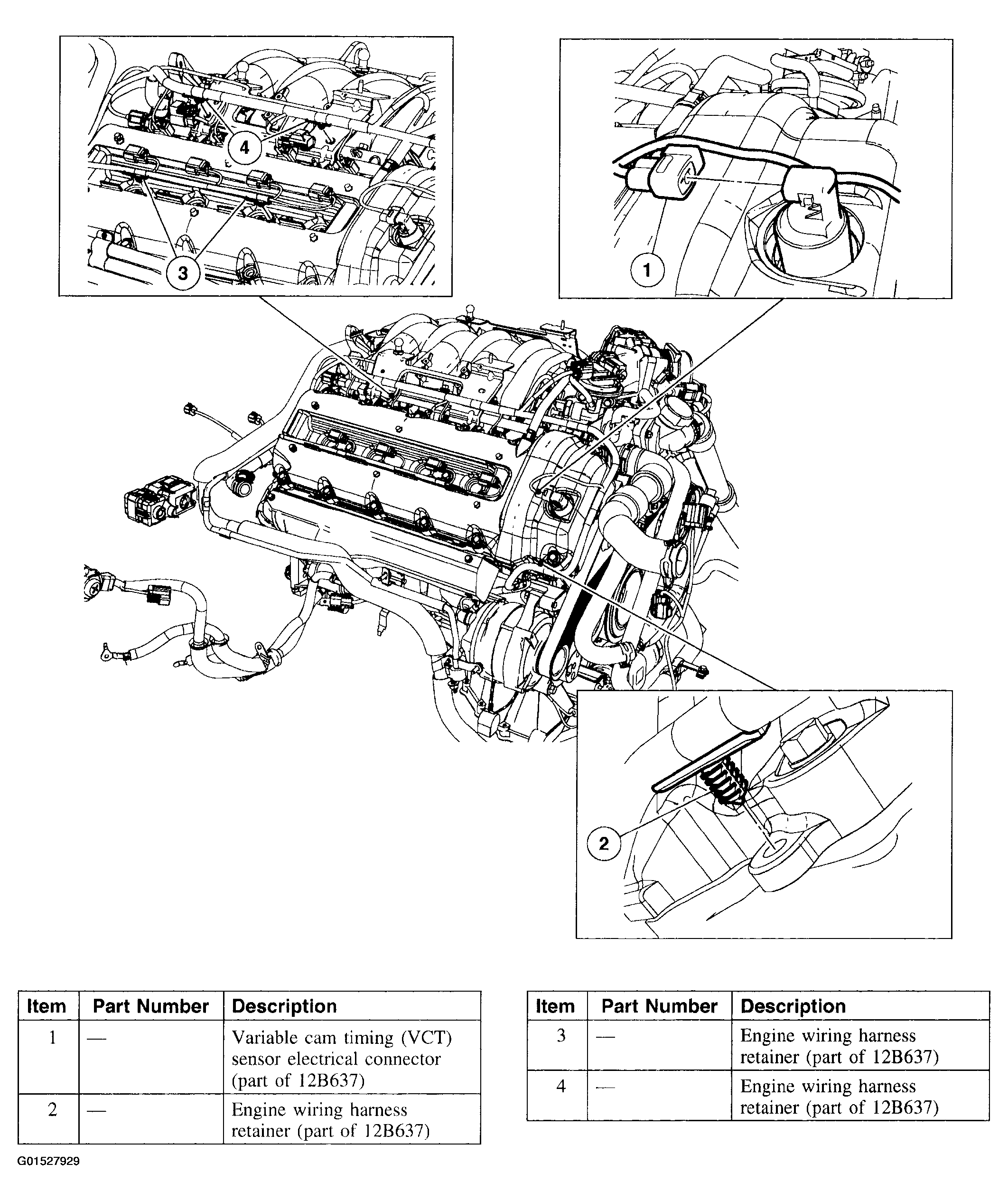

    Fig 2: RH Valve Cover Component Removal Chart (Items 1-4)
    G01527929Courtesy of FORD MOTOR CO.
  4. Remove the components in the order indicated in the following illustration and table.

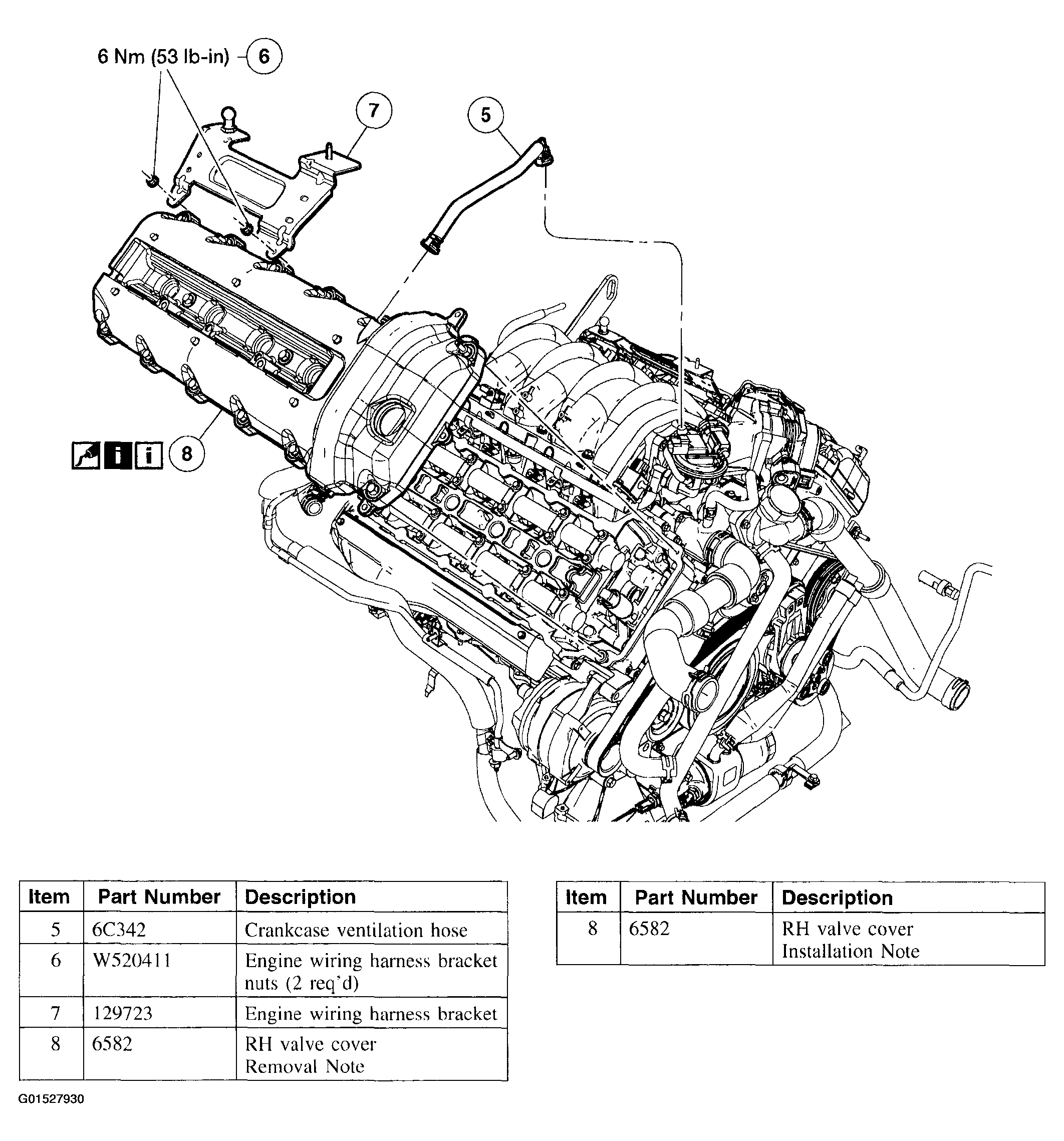

    Fig 3: RH Valve Cover Component Removal Chart (Items 5-8)
    G01527930Courtesy of FORD MOTOR CO.
