Cylinder Block Distortion

Special Tool(s)

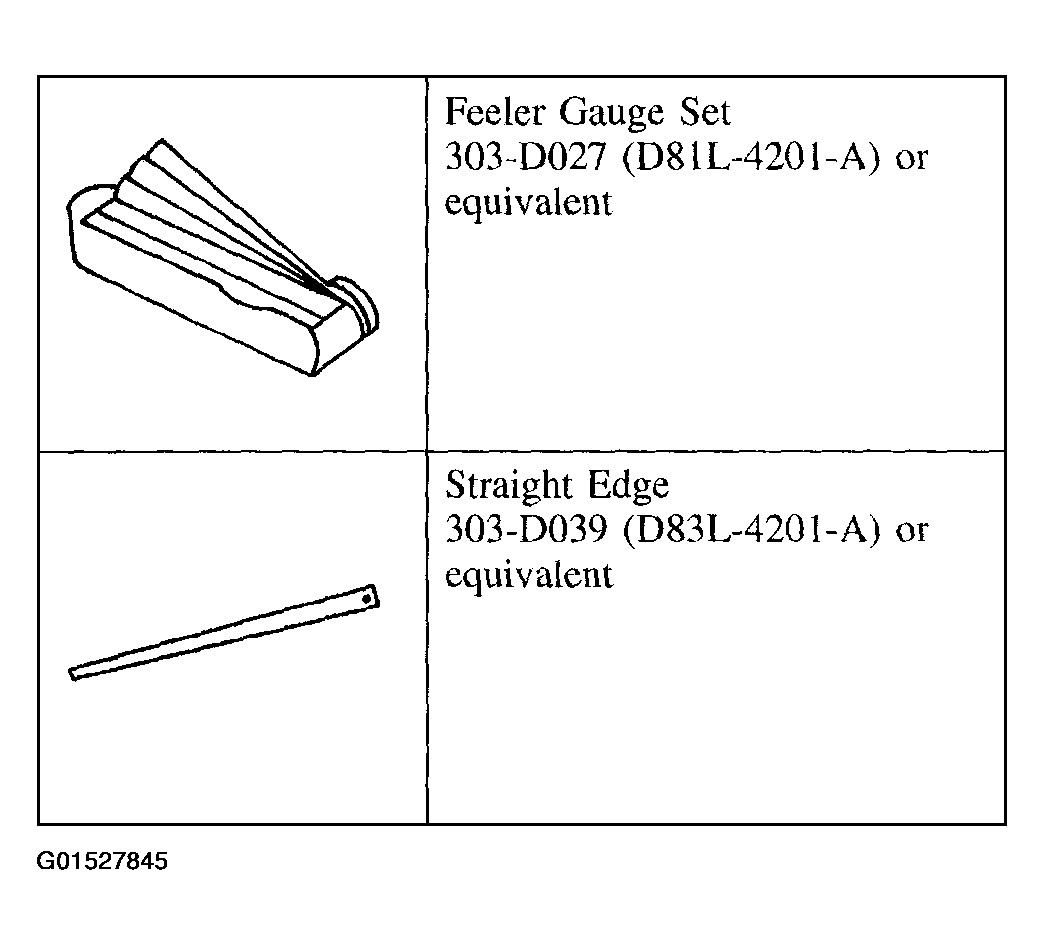

Fig 1: Identifying Special Tool(s)
G01527845Courtesy of FORD MOTOR CO.
  1. Use a straight edge and a feeler gauge to inspect the cylinder block for flatness. If the cylinder block is distorted, install a new short block assembly.

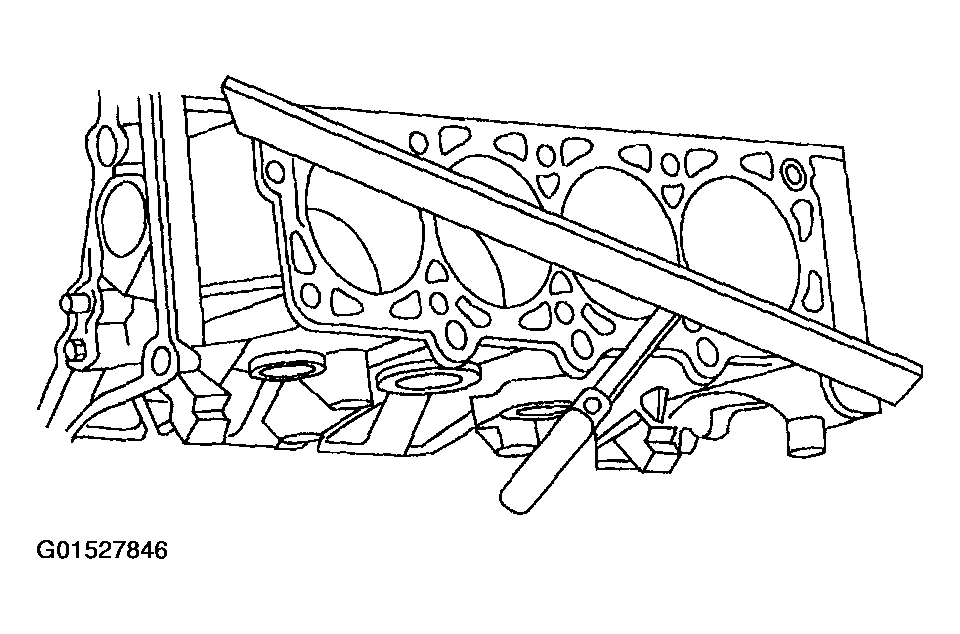

    Fig 2: Inspecting Cylinder Block
    G01527846Courtesy of FORD MOTOR CO.
