Item 23: Fuel Delivery Module Lock Ring Installation Note

Using the special tool, install the fuel delivery module lock ring.

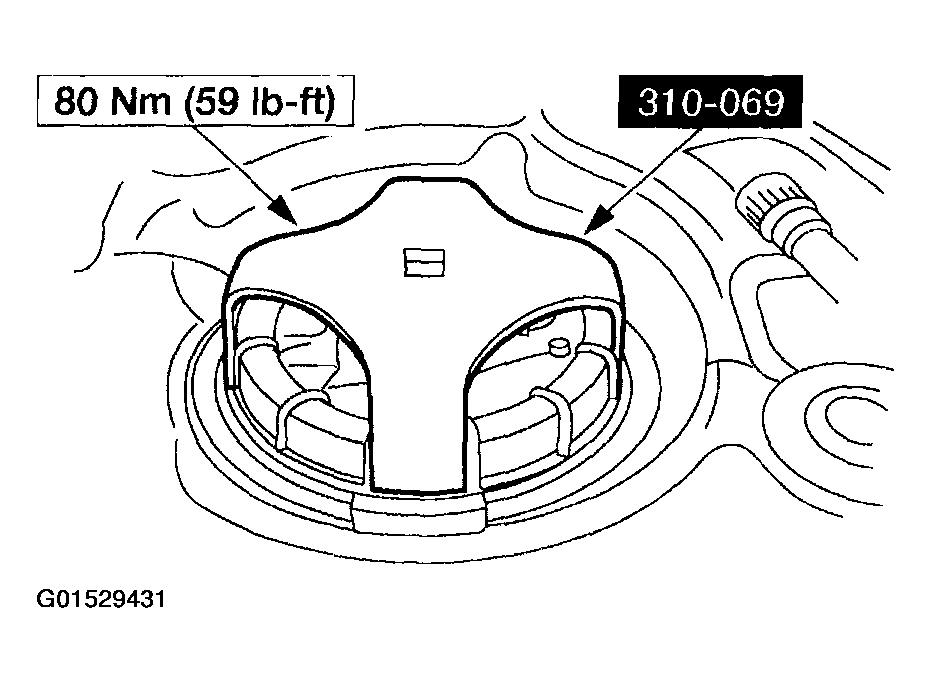

Fig 1: Installing Fuel Delivery Module Lock Ring
Courtesy of FORD MOTOR CO.
