Climate Control Assembly

NOTE: If installing a new climate control assembly (DATC module), the new module must be configured for the vehicle. For additional information, refer to MODULE COMMUNICATIONS NETWORK .
  1. Remove the components in the order indicated in the following illustration.

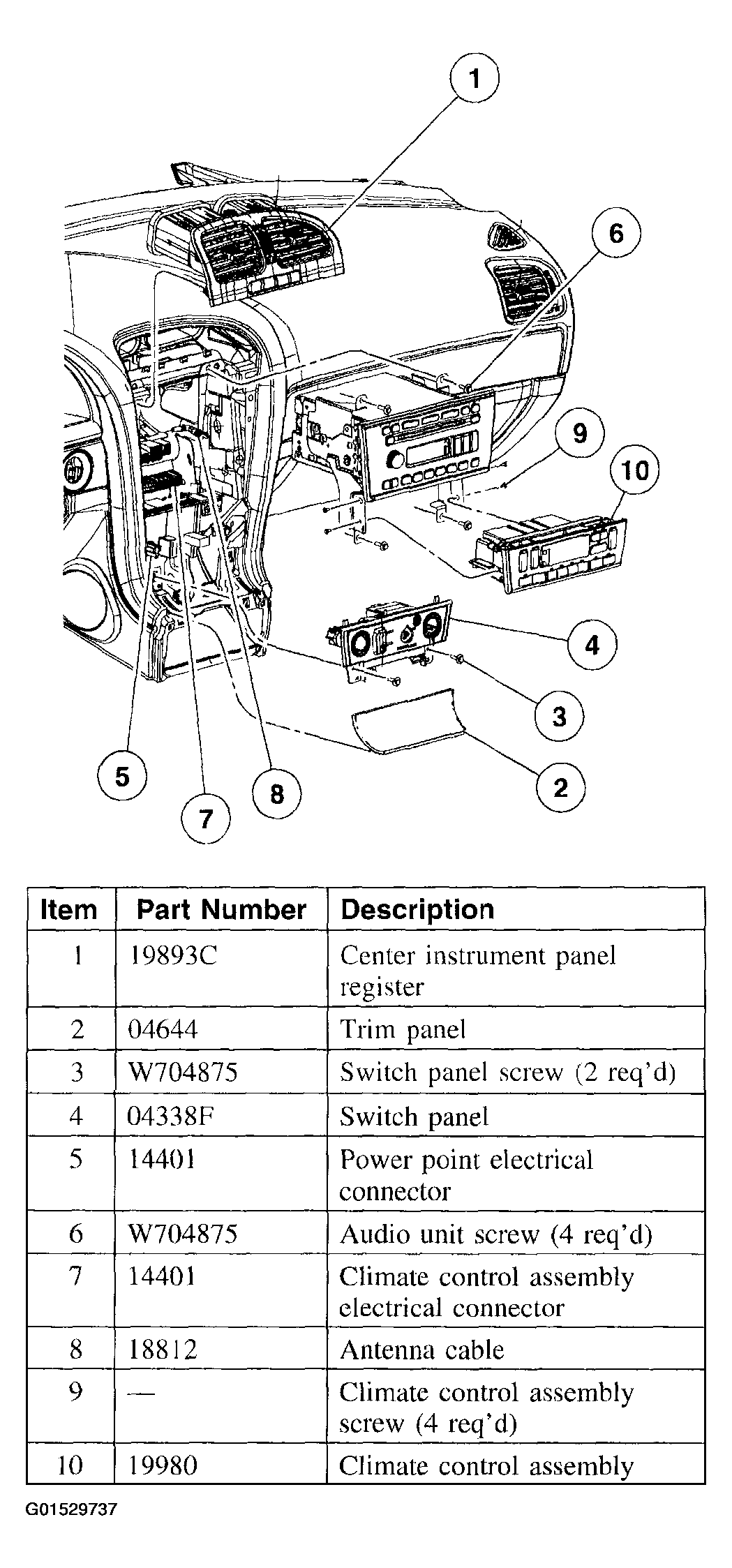

    Fig 1: Climate Control Assembly Component Removal Sequence
    G01529737Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
