Power Steering Fluid Cooler: Notes

Special Tool(s)

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

1. Remove the air conditioning condenser. For additional information, refer to CLIMATE CONTROL SYSTEM .
2. Remove the components in the order indicated in the following illustration and table.

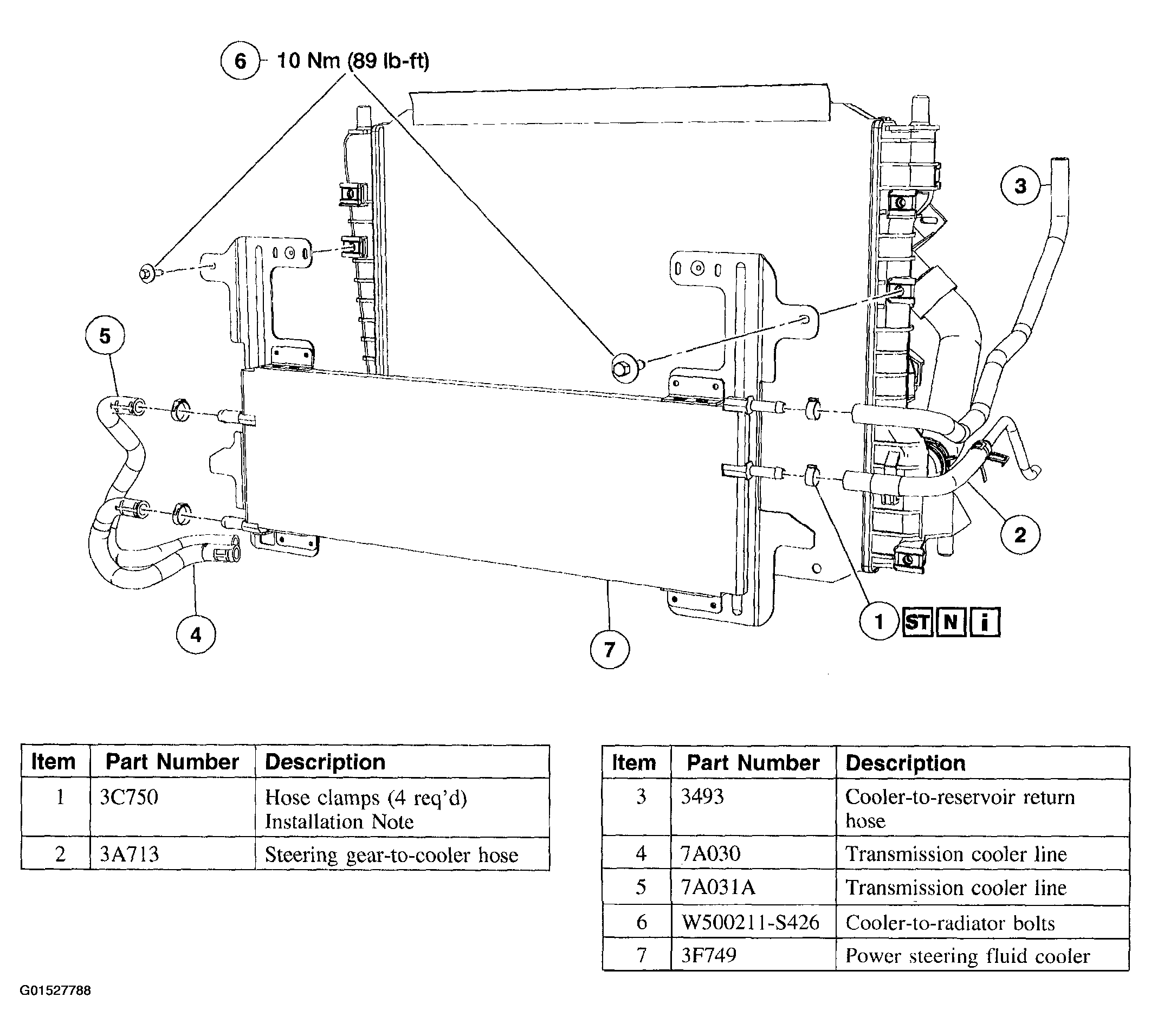

   Fig 2: Power Steering Fluid Color Component Locator

   Courtesy of FORD MOTOR CO.
3. To install, reverse the removal procedure.
4. Fill, purge and leak test the system. For additional information, refer to POWER STEERING SYSTEM PURGING  and POWER STEERING SYSTEM FILLING .
