Power Steering Reservoir: Notes

  1. Remove the components in the order indicated in the following illustration and table.

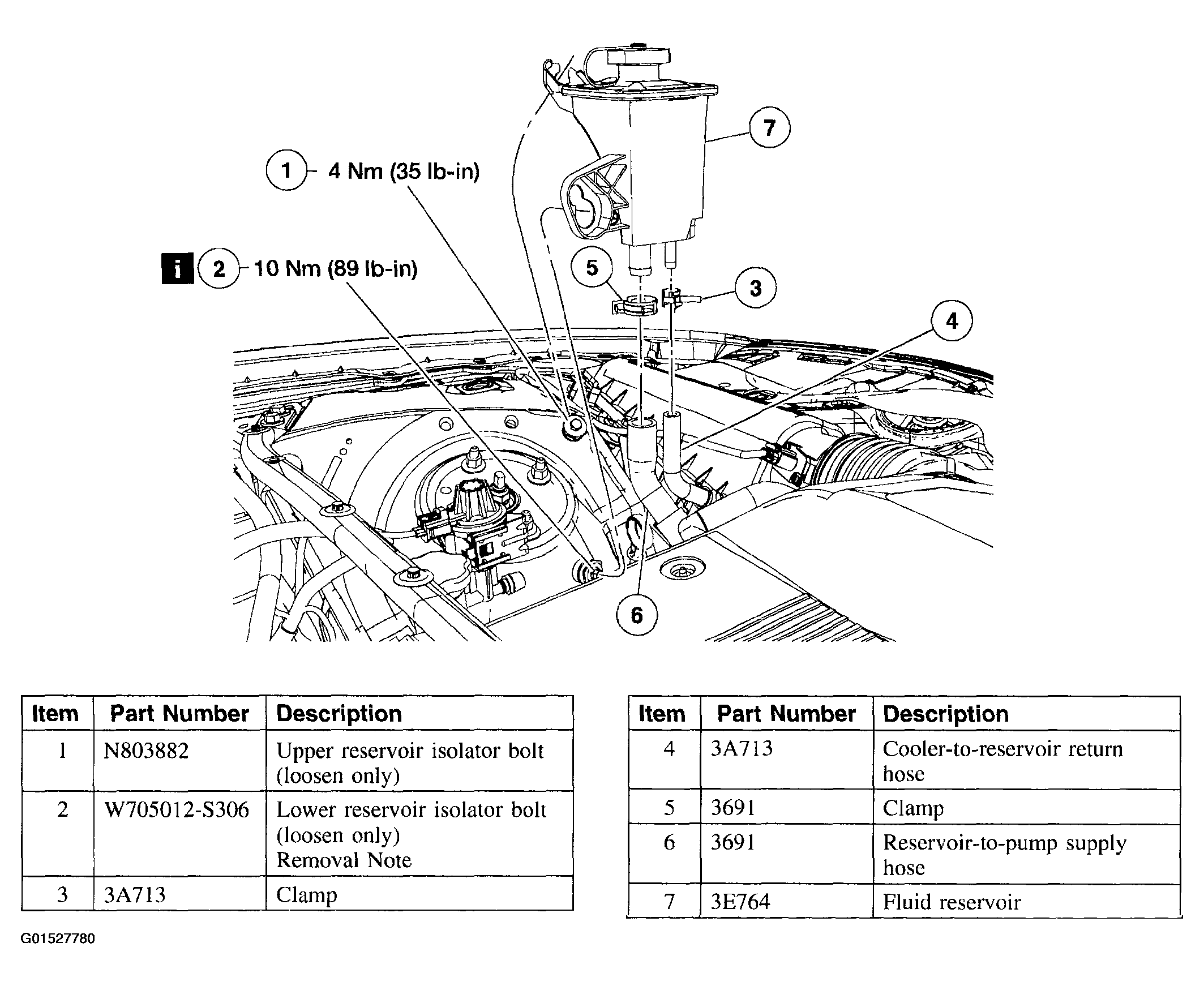

    Fig 1: Power Steering Reservoir Component Locator
    G01527780Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
  3. Fill, purge and lead test the system. For additional information, refer to POWER STEERING SYSTEM FILLING .
