Front Toe Adjustment

Start the engine and center the steering wheel.
Turn the engine off, and hold the steering wheel in the "straight forward" position using a suitable holding device.
Loosen the nuts and remove the clamps.

Fig 1: Locating Nut And Clamp
Courtesy of FORD MOTOR CO.

NOTE: Do not allow the steering gear bellows to twist when the front wheel spindle tie-rod is rotated.

Fig 2: Rotating Front Wheel Spindle Tie-Rods

Courtesy of FORD MOTOR CO.

Rotate the front wheel spindle tie-rods.
Tighten the nuts. Install the clamps.

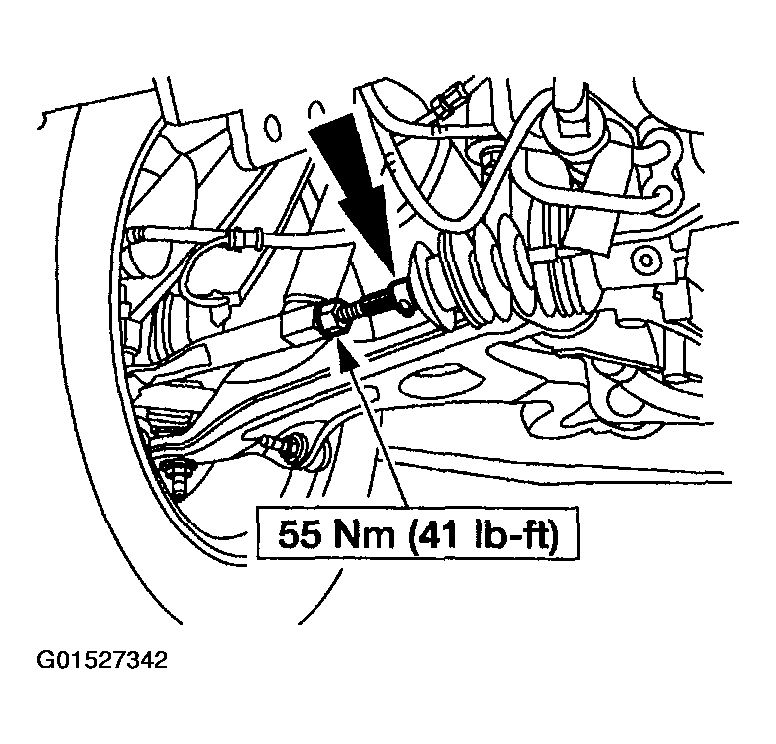

Fig 3: Locating Nuts And Clamps Of Front Toe
Courtesy of FORD MOTOR CO.
Start the engine and recenter the steering wheel.
- Recheck the toe settings and adjust if necessary.
