Disassembled Views

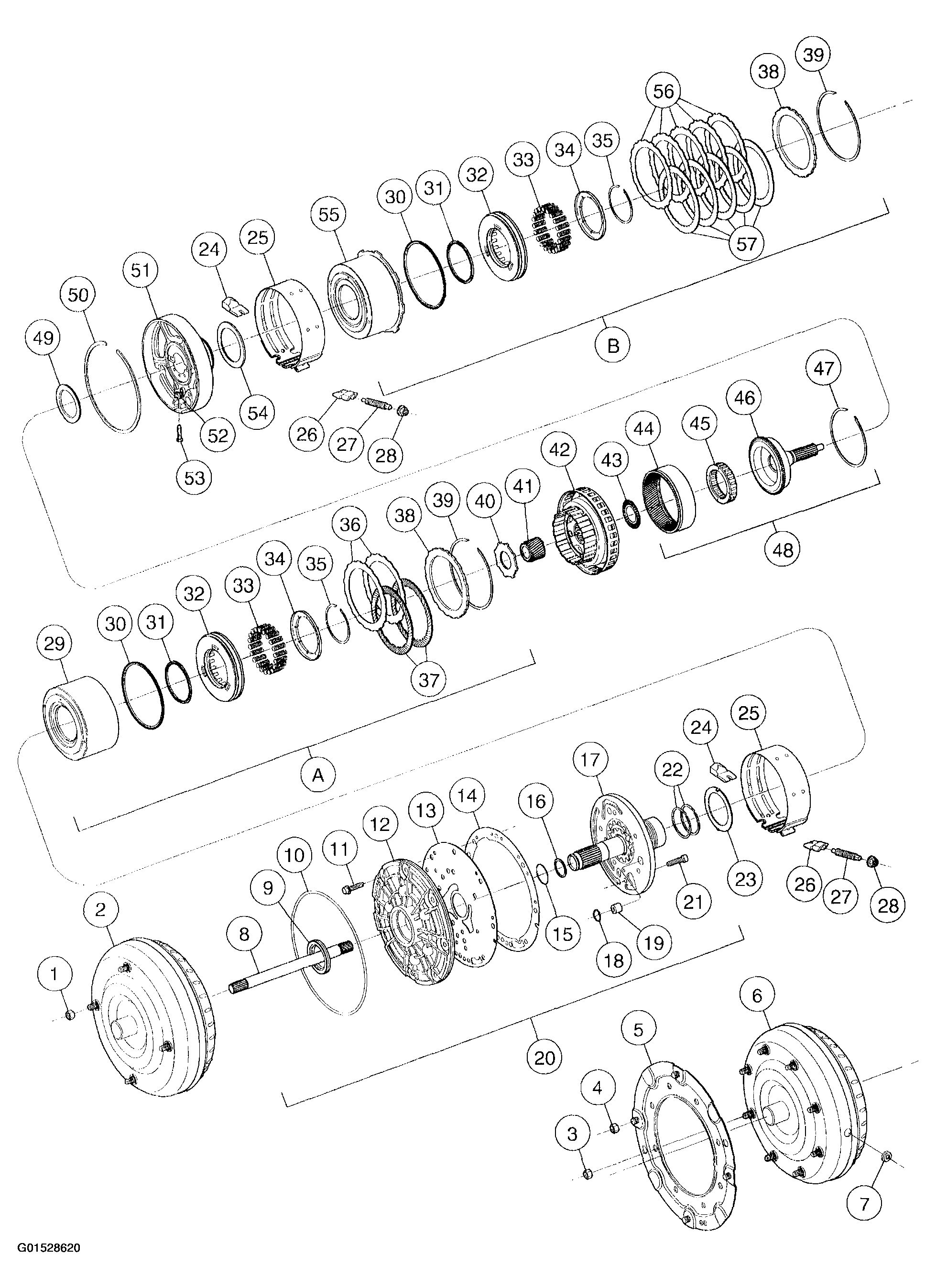

Fig 1: Automatic Transmission Disassembled Views (1 Of 3)

Courtesy of FORD MOTOR CO.

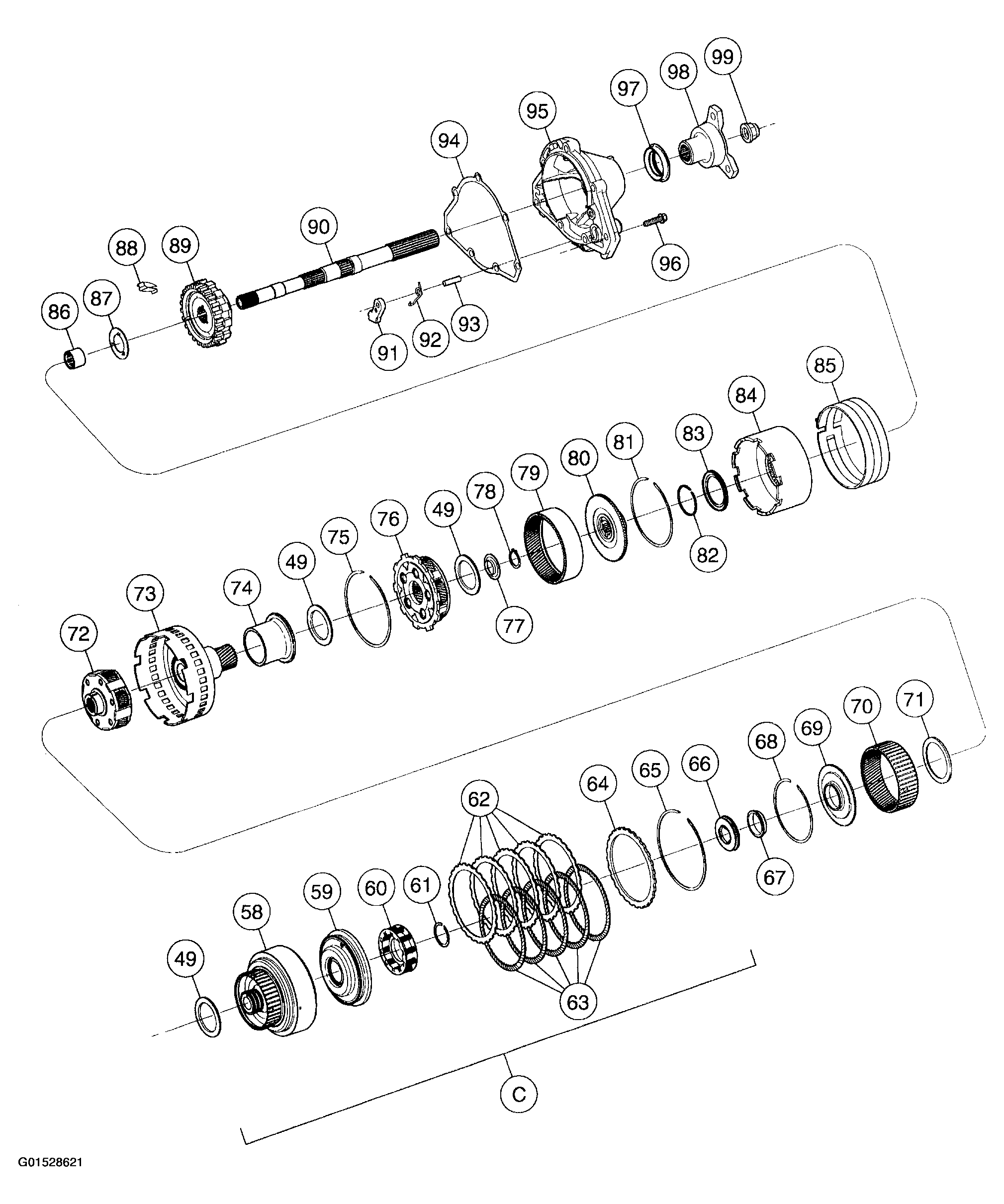

Fig 2: Automatic Transmission Disassembled Views (2 Of 3)

Courtesy of FORD MOTOR CO.

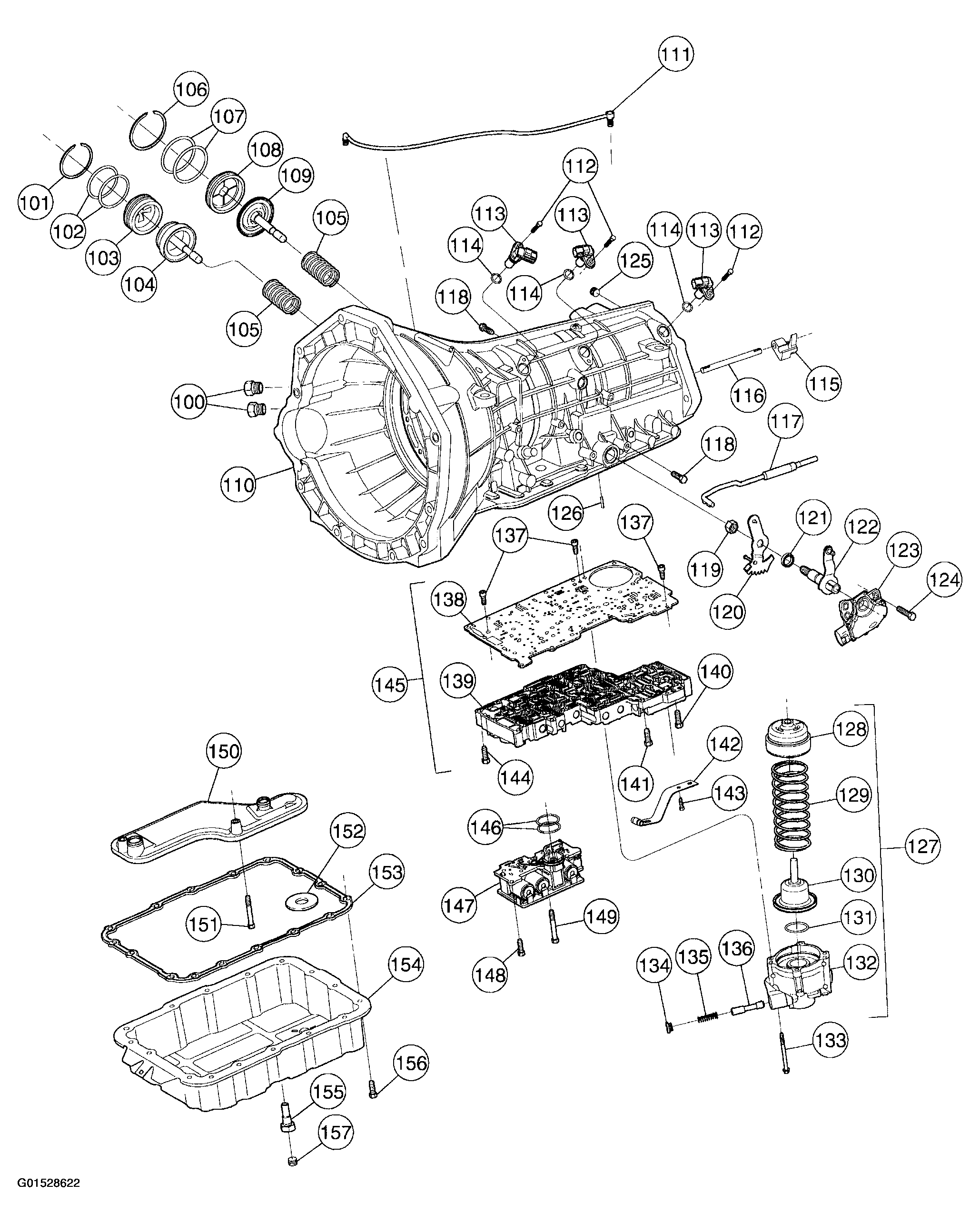

Fig 3: Automatic Transmission Disassembled Views (3 Of 3)

Courtesy of FORD MOTOR CO.

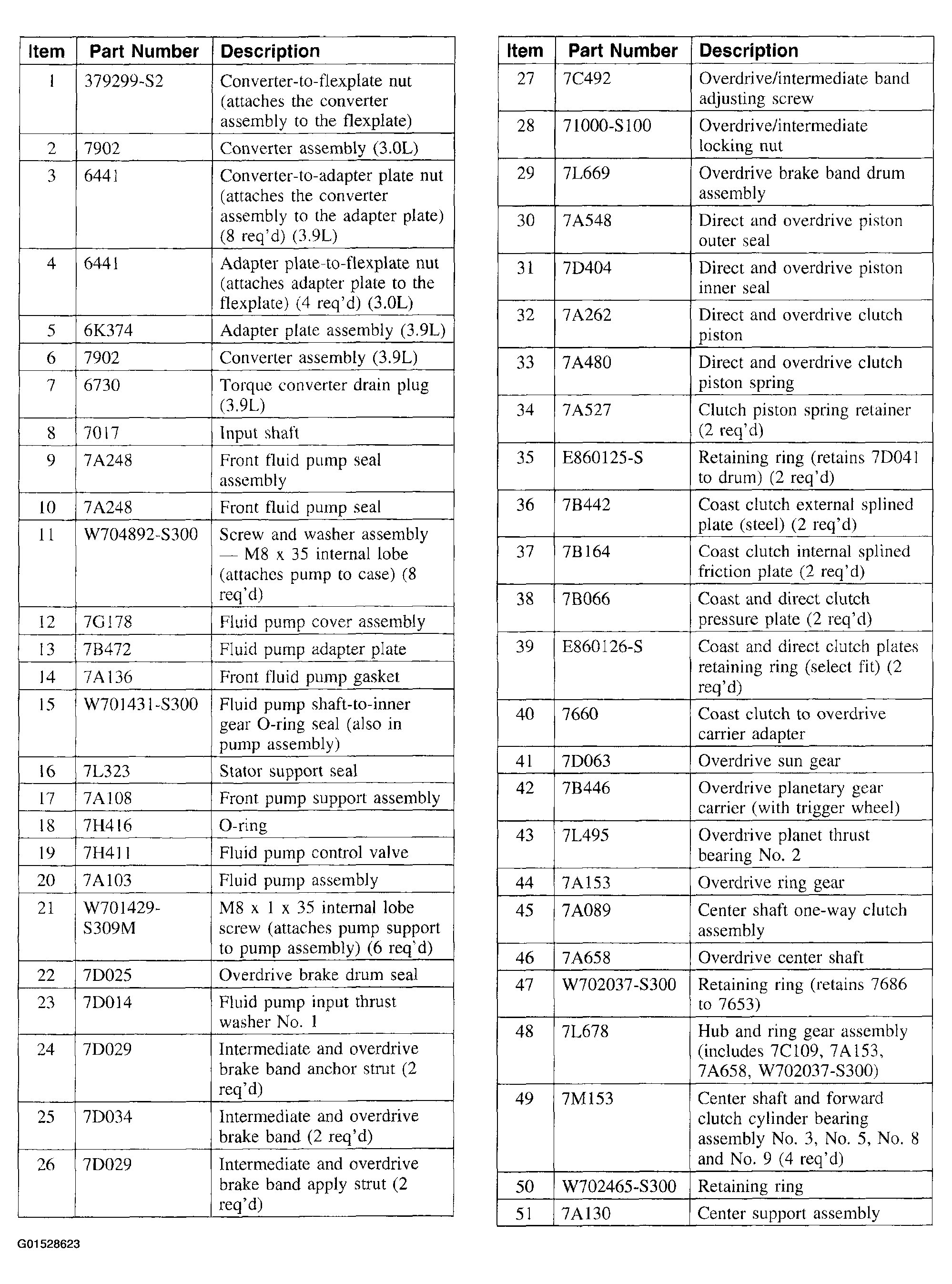

Fig 4: Automatic Transmission Disassembled Views (Items 1-51)

Courtesy of FORD MOTOR CO.

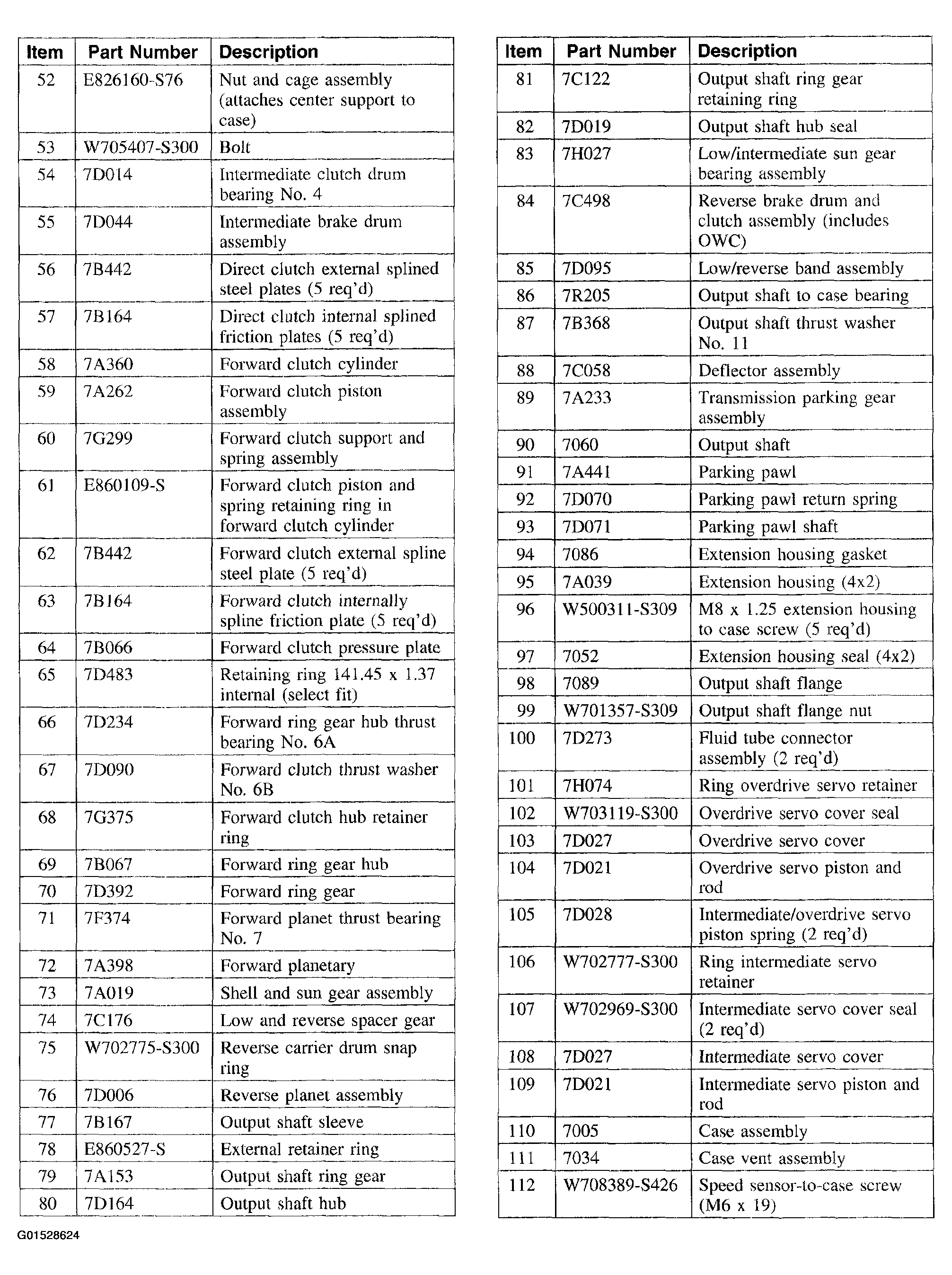

Fig 5: Automatic Transmission Disassembled Views (Items 52-112)

Courtesy of FORD MOTOR CO.

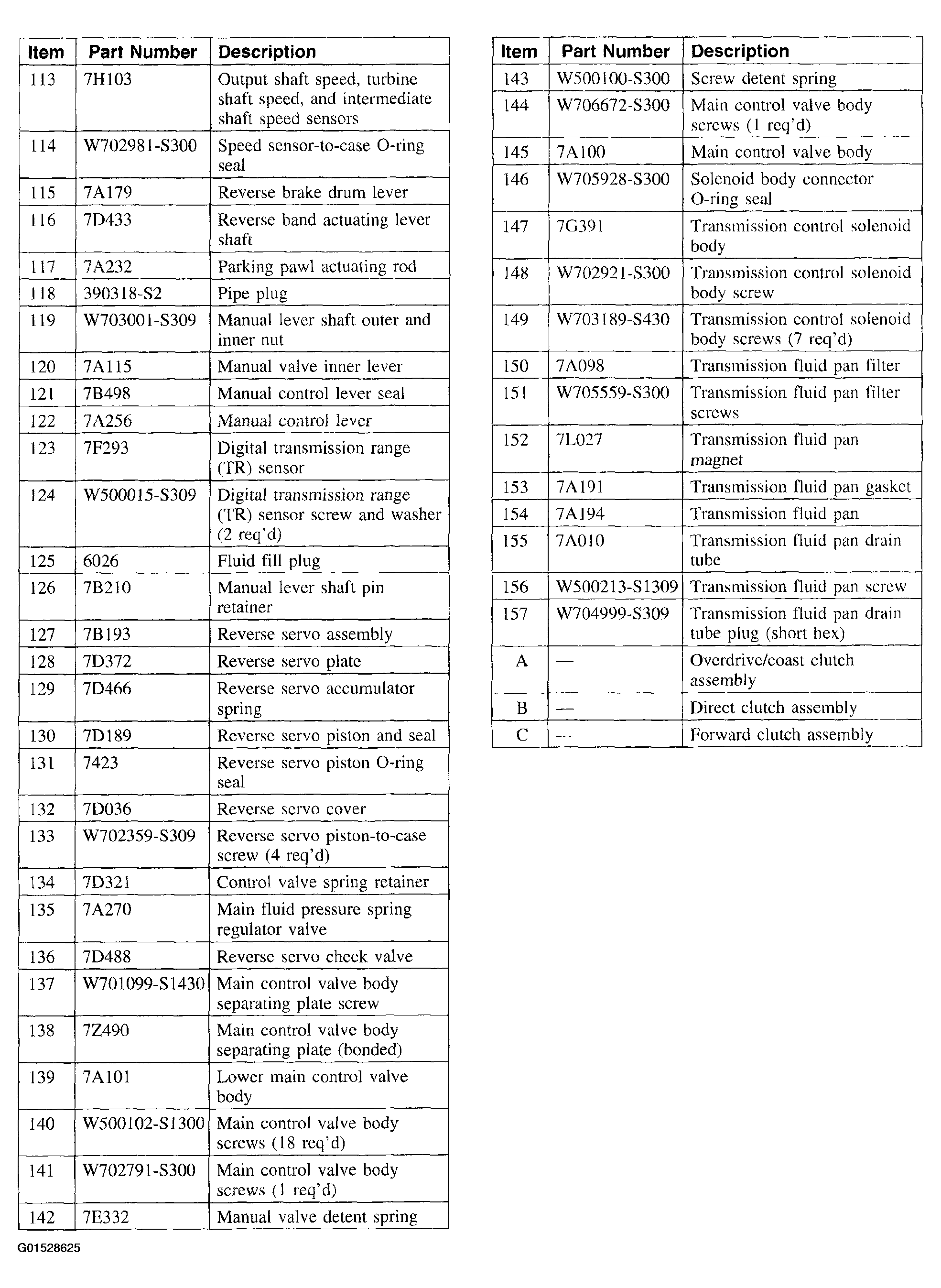

Fig 6: Automatic Transmission Disassembled Views (Items 113-157 And A-C)

Courtesy of FORD MOTOR CO.
