Pinpoint Test J: Brake Shift Interlock Inoperative

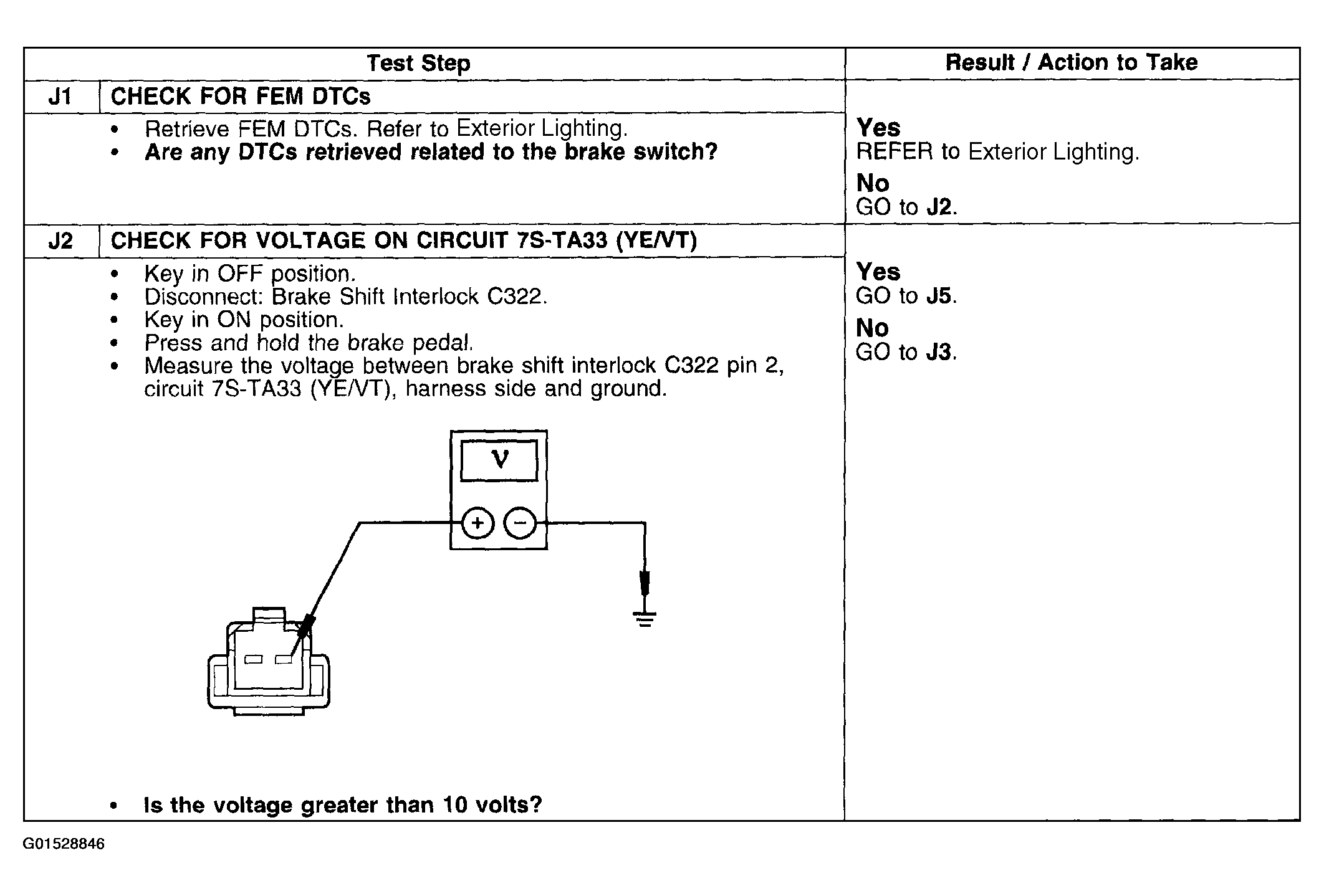

Fig 1: Pinpoint Test J: Brake Shift Interlock Inoperative (J1-J2)
G01528846Courtesy of FORD MOTOR CO.

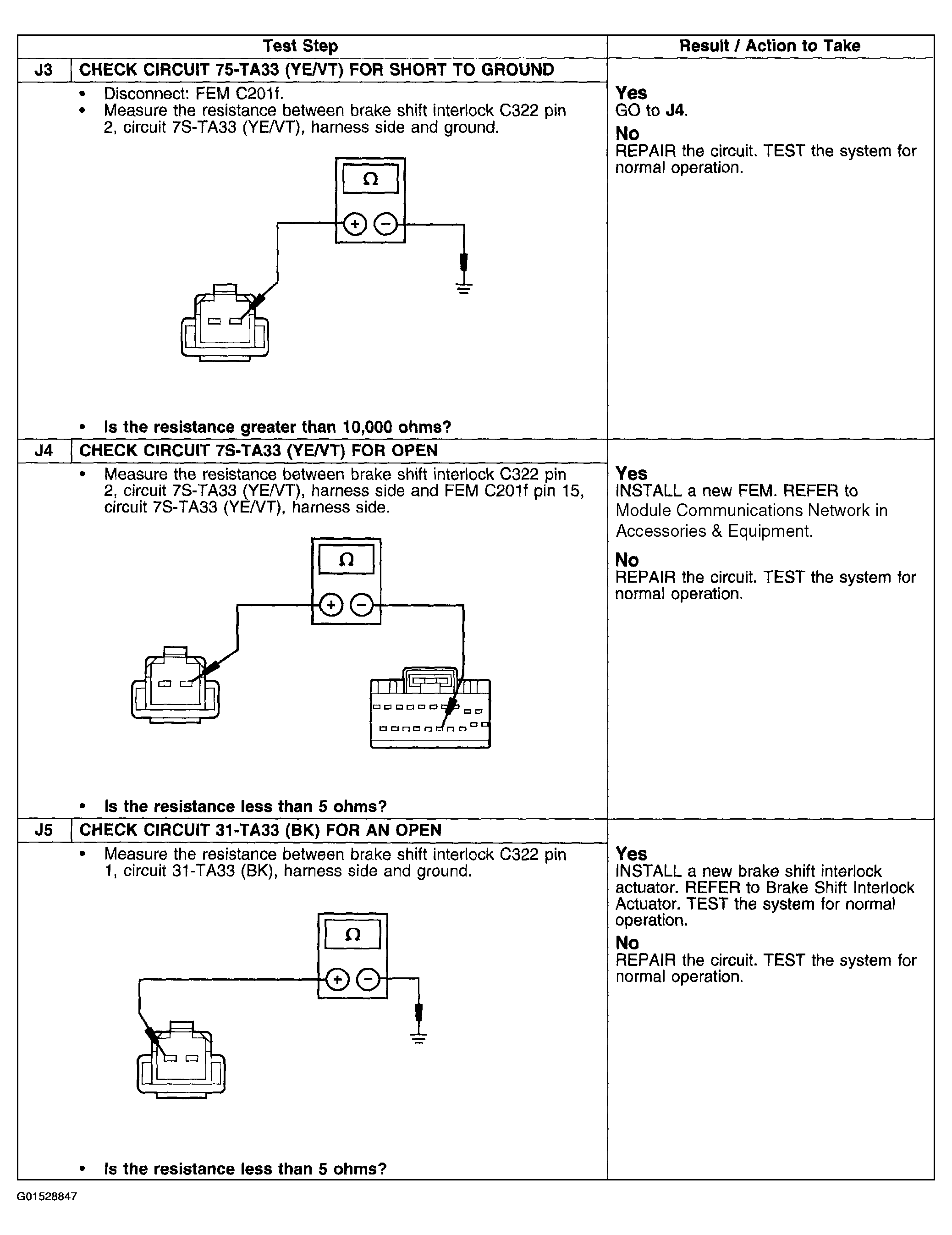

Fig 2: Pinpoint Test J: Brake Shift Interlock Inoperative (J3-J5)
G01528847Courtesy of FORD MOTOR CO.
