Symptom Chart

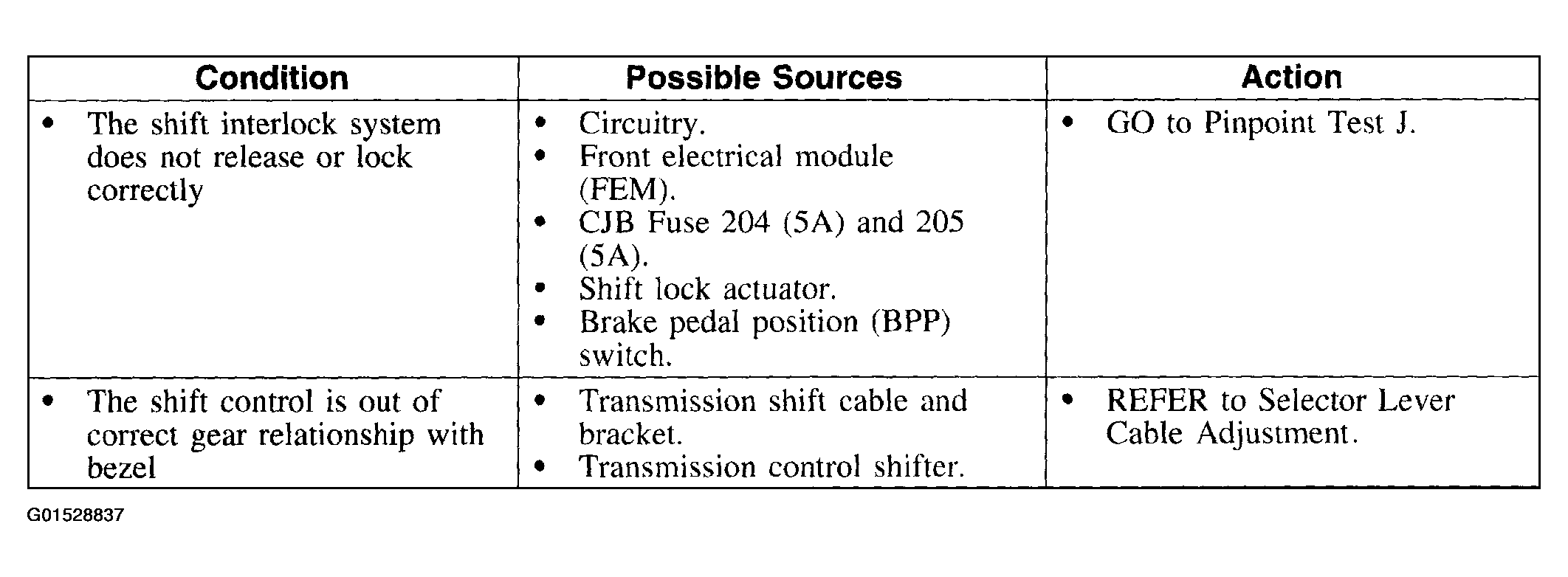

Fig 1: Automatic Transmission Symptom Chart (1 Of 3)
G01528837Courtesy of FORD MOTOR CO.

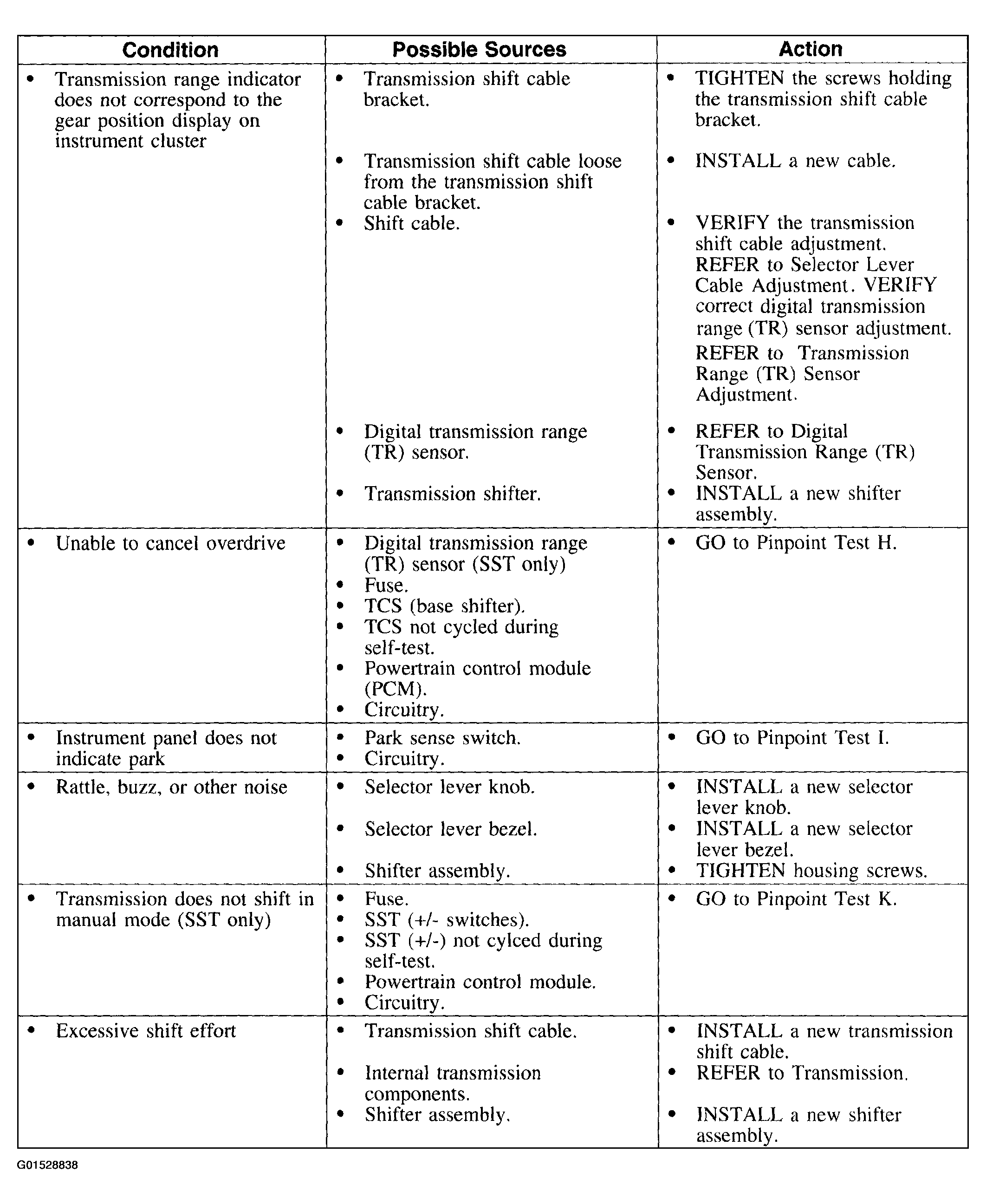

Fig 2: Automatic Transmission Symptom Chart (2 Of 3)
G01528838Courtesy of FORD MOTOR CO.

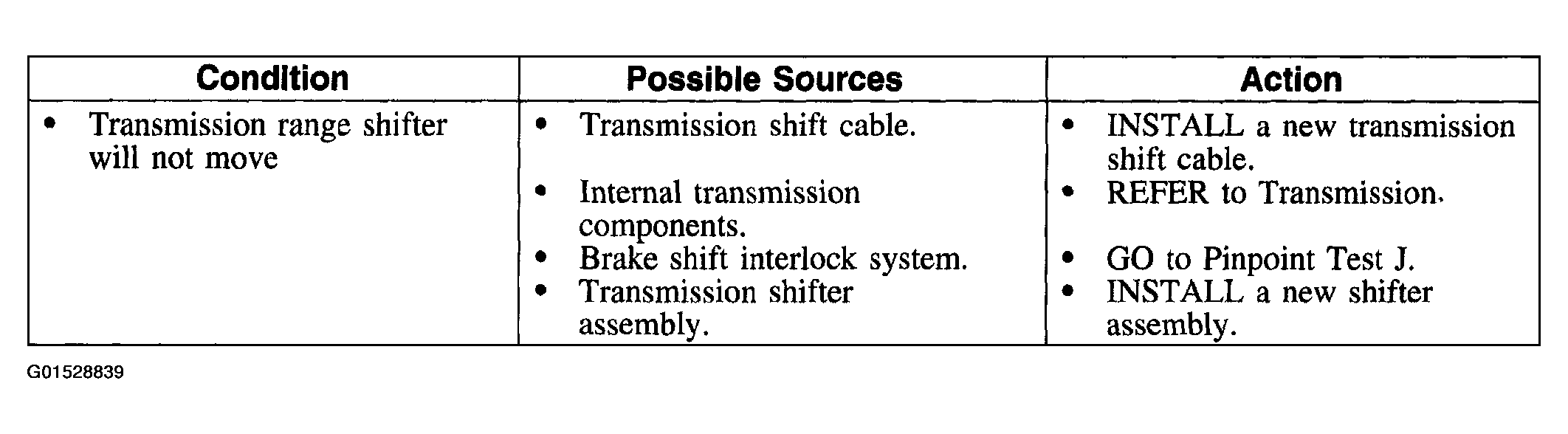

Fig 3: Automatic Transmission Symptom Chart (3 Of 3)
G01528839Courtesy of FORD MOTOR CO.
