Item 5: Fluid Pump Control Valve Assembly Note

  1. Install the valve with the tab facing down.

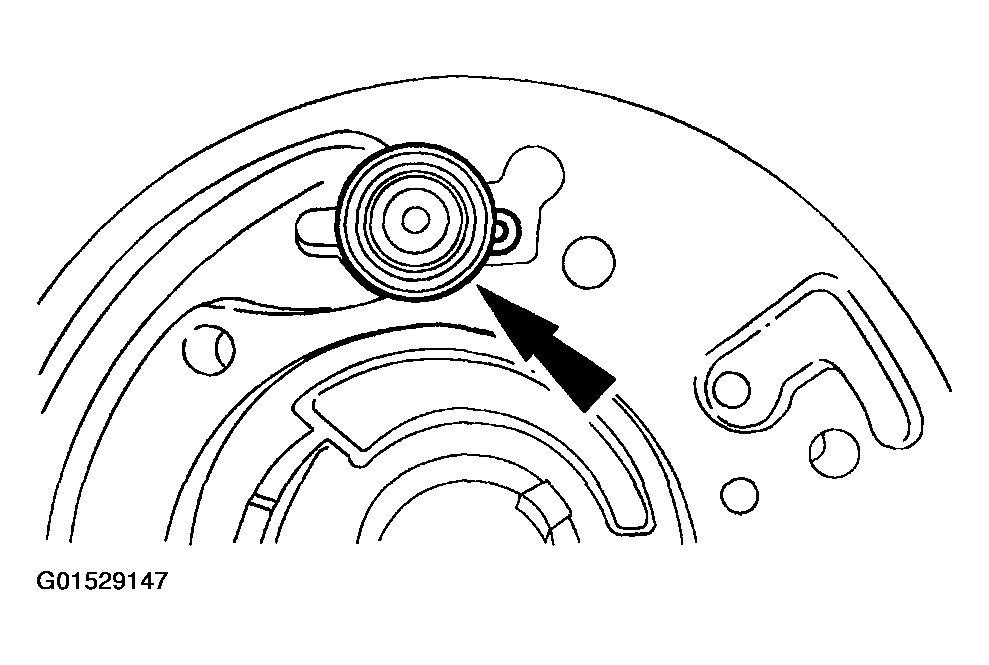

    Fig 1: Identifying Fluid Pump Control Valve
    G01529147Courtesy of FORD MOTOR CO.
