Item 5: Retaining Ring Disassembly Note

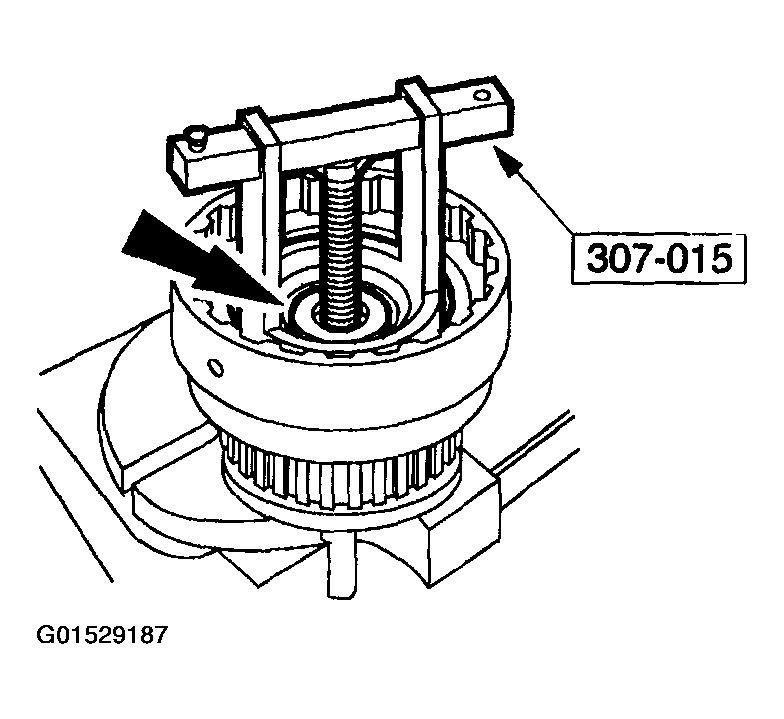

- Using the special tool, remove the forward clutch piston retaining ring.
WARNING:
Use caution when releasing tool pressure on the clutch piston springs. Failure to follow these instructions may result in personal injury.
CAUTION:
Do not fully depress the special tool or damage to the spring retainer may occur.
