Item 6: Manual Control Lever Inner Nut Installation Note

    CAUTION: To avoid damage, do not allow the wrench to strike the manual valve inner lever pin.

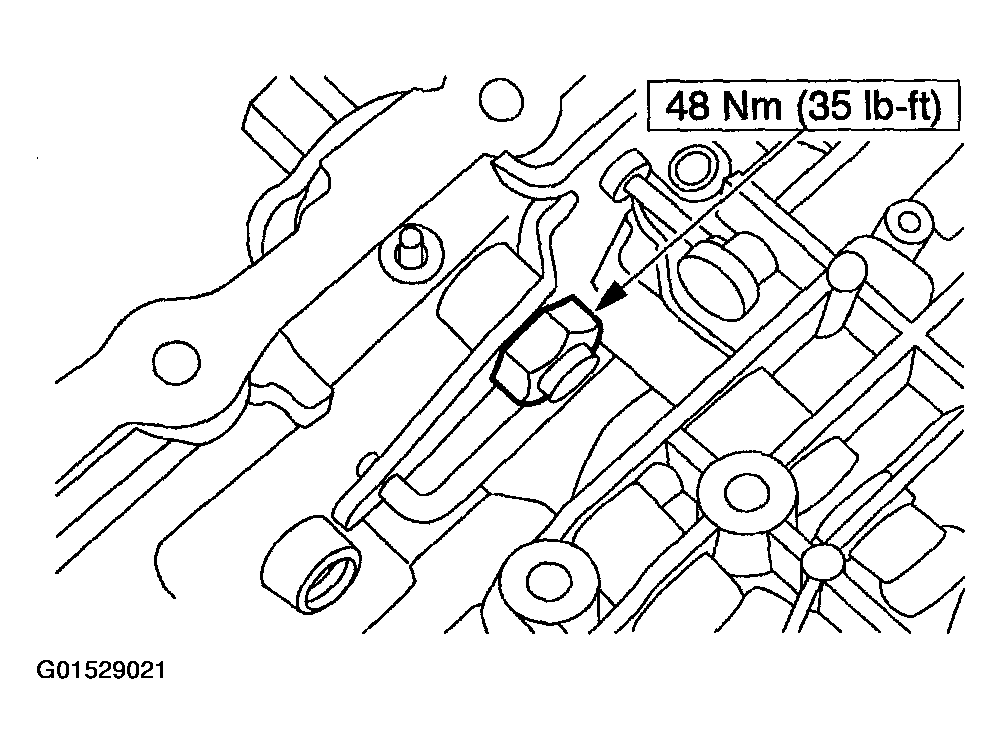

    Fig 1: Manual Control Lever Inner Nut Torque Specifications
    G01529021Courtesy of FORD MOTOR CO.
  1. Tighten the nut.
