Band/Clutch Application Chart A

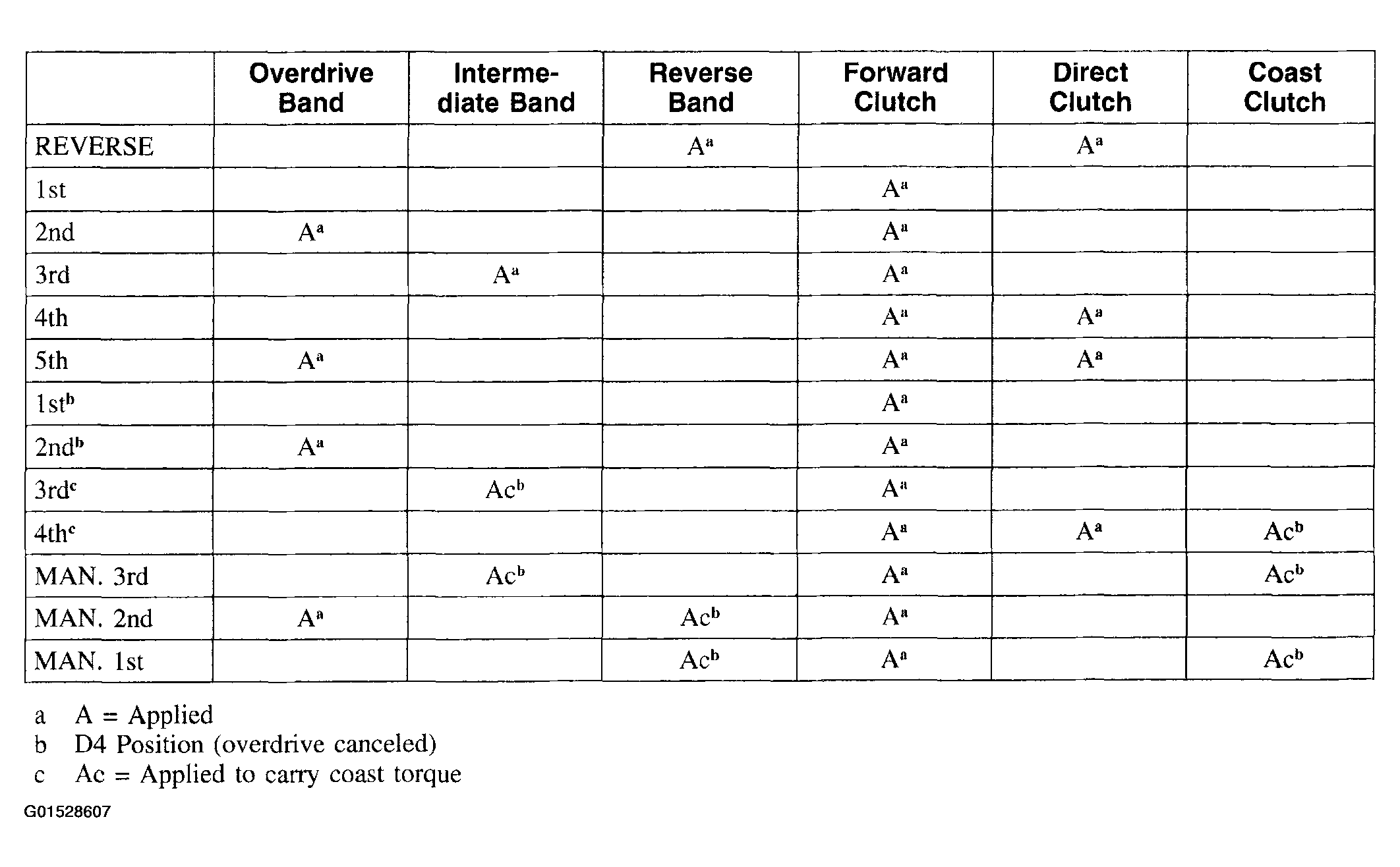

Fig 1: Band/Clutch Application Chart A
G01528607Courtesy of FORD MOTOR CO.
