Automatic Transaxle/Transmission
›
Specifications
›
Band/Clutch Application Chart B
Band/Clutch Application Chart B

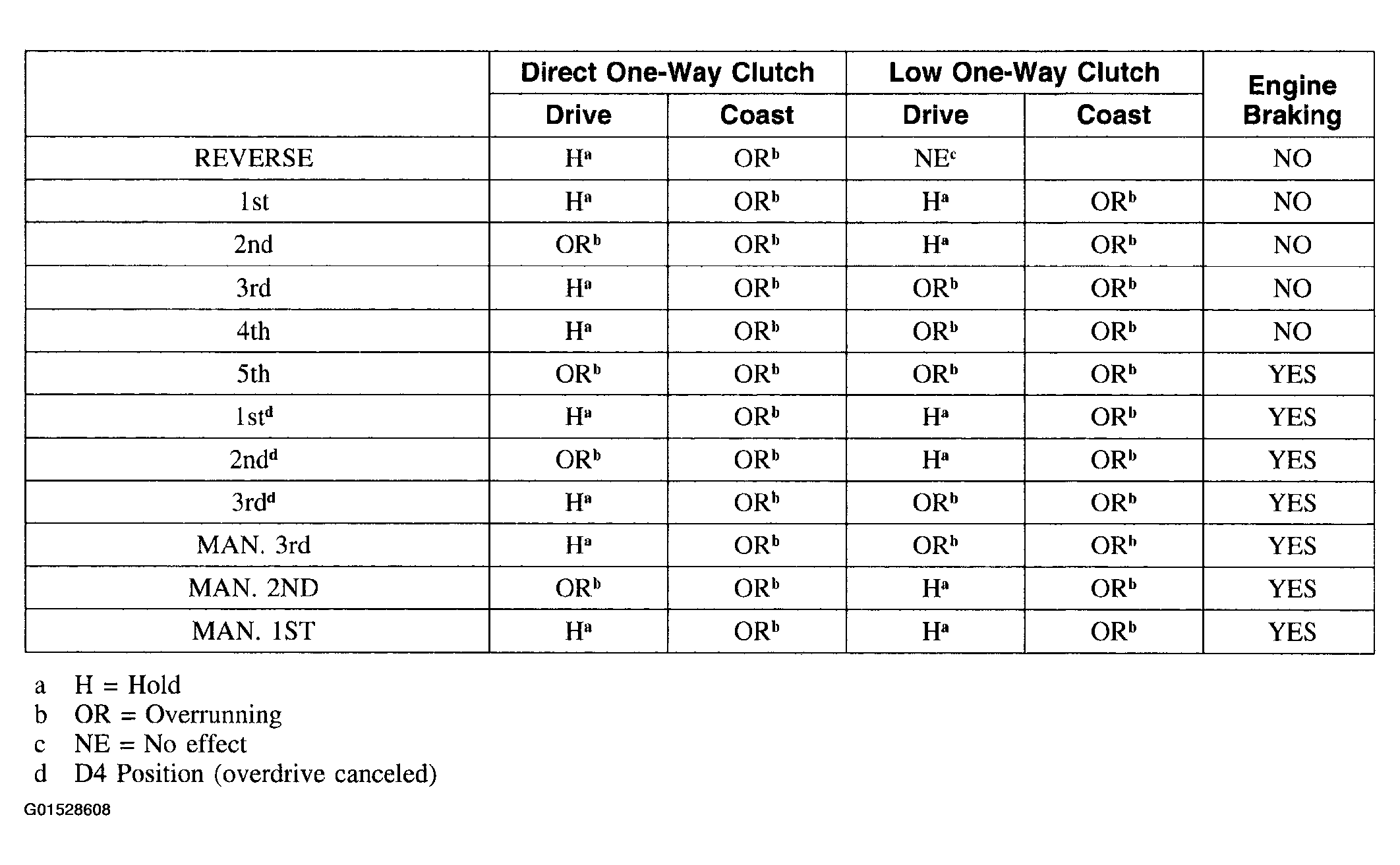

Fig 1: Band/Clutch Application Chart B
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
