Pinpoint Test C: No Communication With The Remote Keyless Entry (RKE) Module

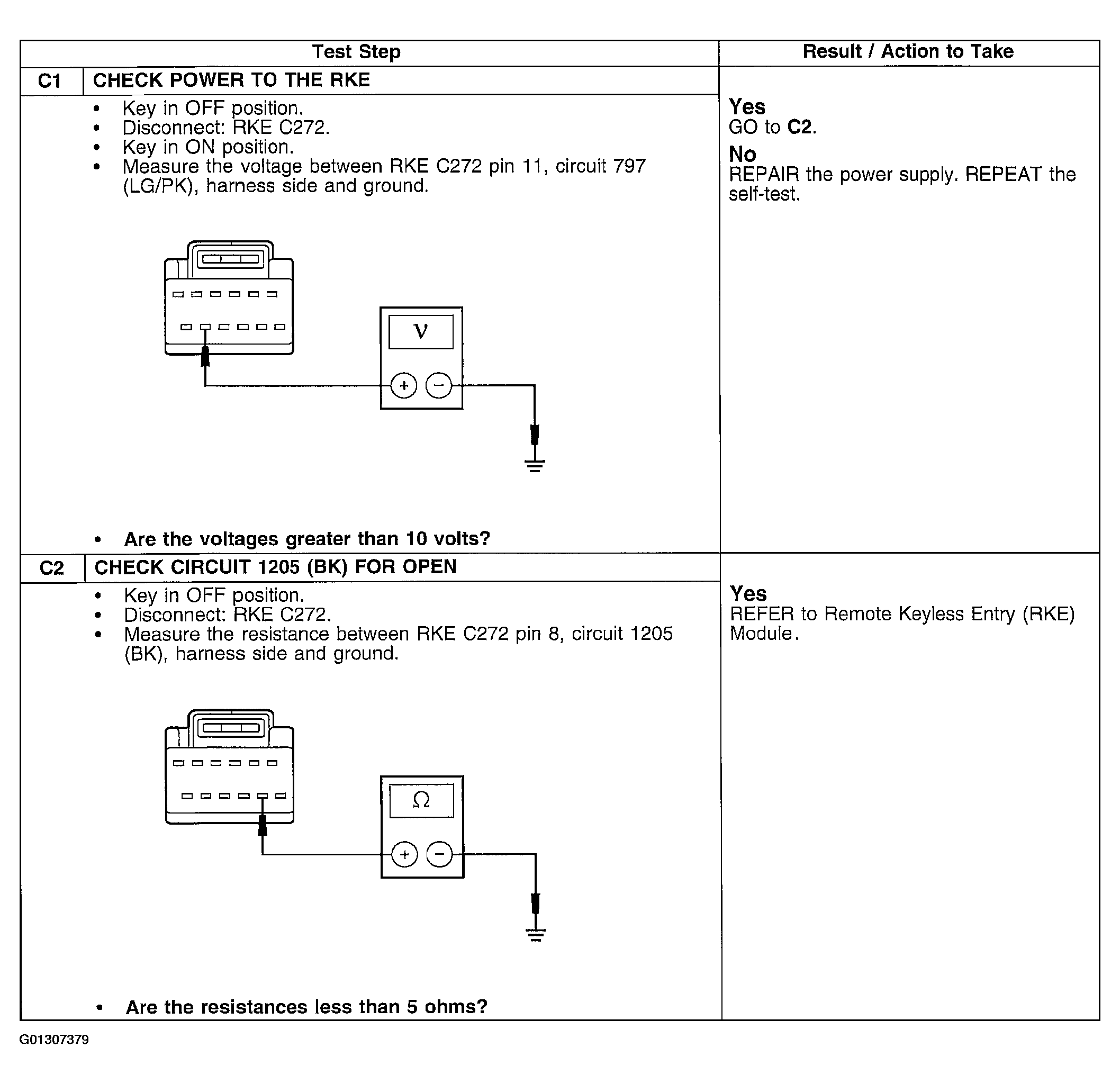

Fig 1: Pinpoint Test C: No Communication With Remote Keyless Entry (RKE) Module (Steps C1-C2)
G01307379Courtesy of FORD MOTOR CO.
