Armrest - Bucket With Console, 2nd Row

  1. Open the armrest and remove the liner.

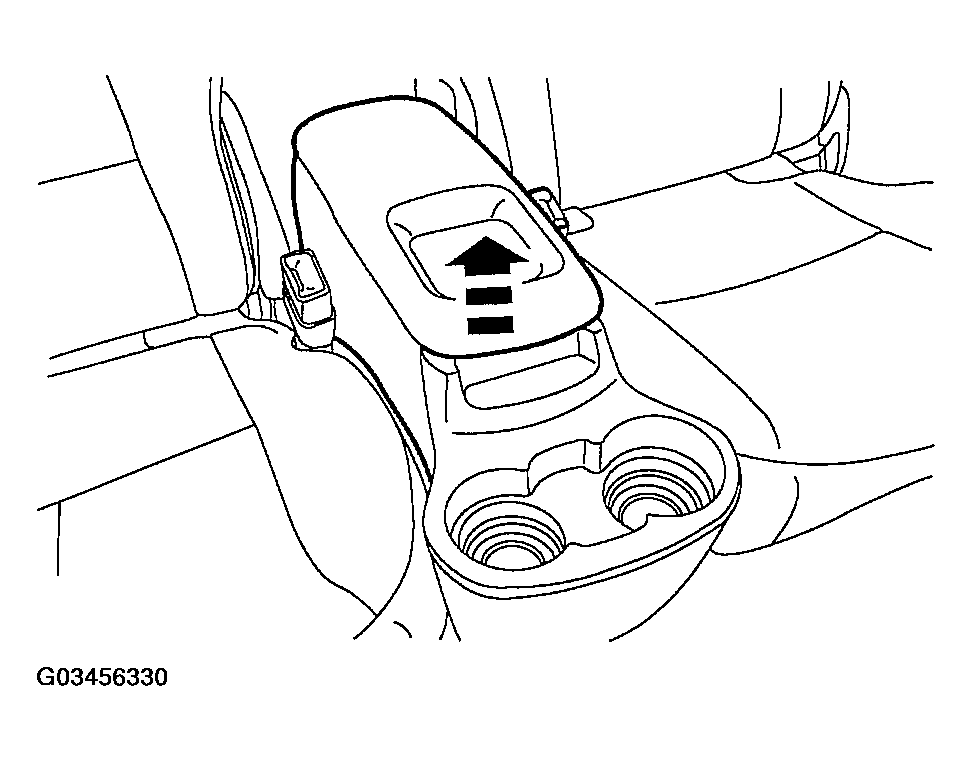

    Fig 1: Opening Armrest
    G03456330Courtesy of FORD MOTOR CO.
  2. Remove the bolts.

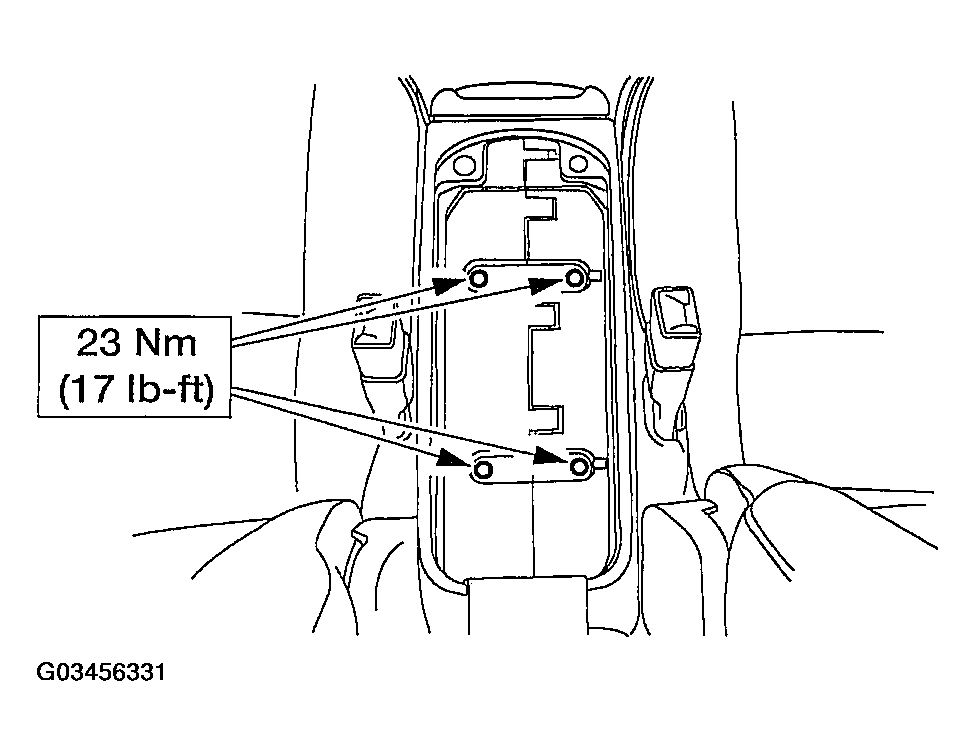

    Fig 2: Removing Bolts
    G03456331Courtesy of FORD MOTOR CO.
  3. Remove the armrest from the seat assembly.
  4. To install, reverse the removal procedure.
