Switch - Window Regulator Control: Removal

CAUTION: Use a shop towel or similar material between the tool and the front door trim panel or damage to the front door trim panel may occur.

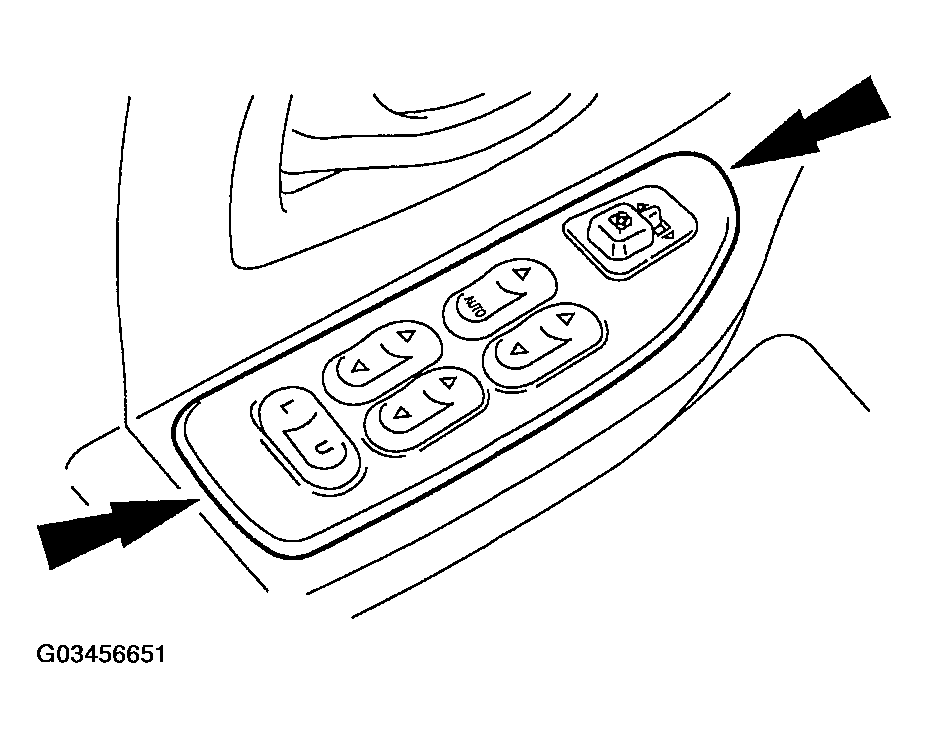

Fig 1: Disengaging Window Regulator Control Switch

G03456651

Courtesy of FORD MOTOR CO.

Disengage the window regulator control switch.
Disconnect the electrical connectors.

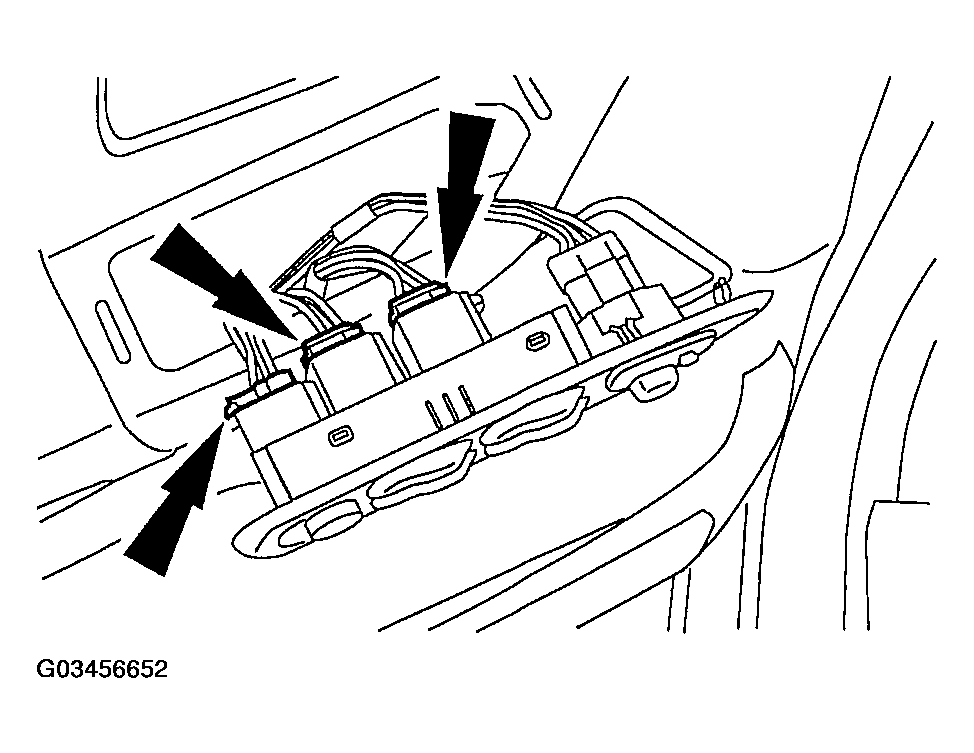

Fig 2: Disconnecting Electrical Connectors
Courtesy of FORD MOTOR CO.
Release the clips and remove the window regulator control switch.
