Pinpoint Test B: The Key-In-Ignition Chime Is Inoperative

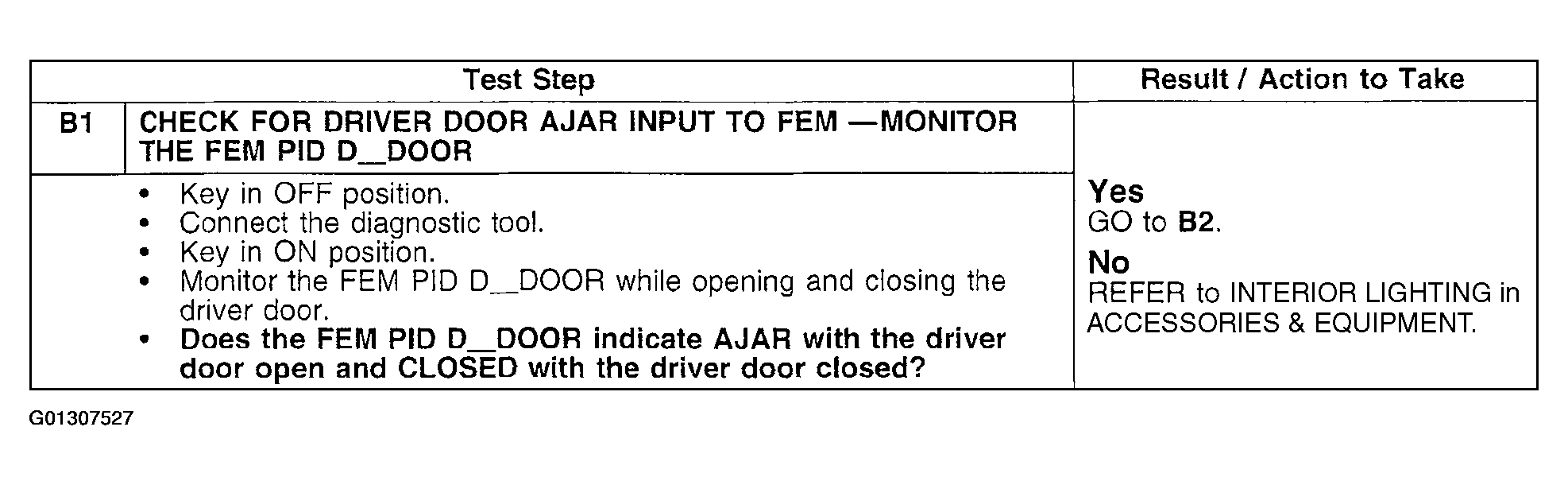

Fig 1: Pinpoint Test B: Key-In-Ignition Chime Is Inoperative (Steps B1)

Courtesy of FORD MOTOR CO.

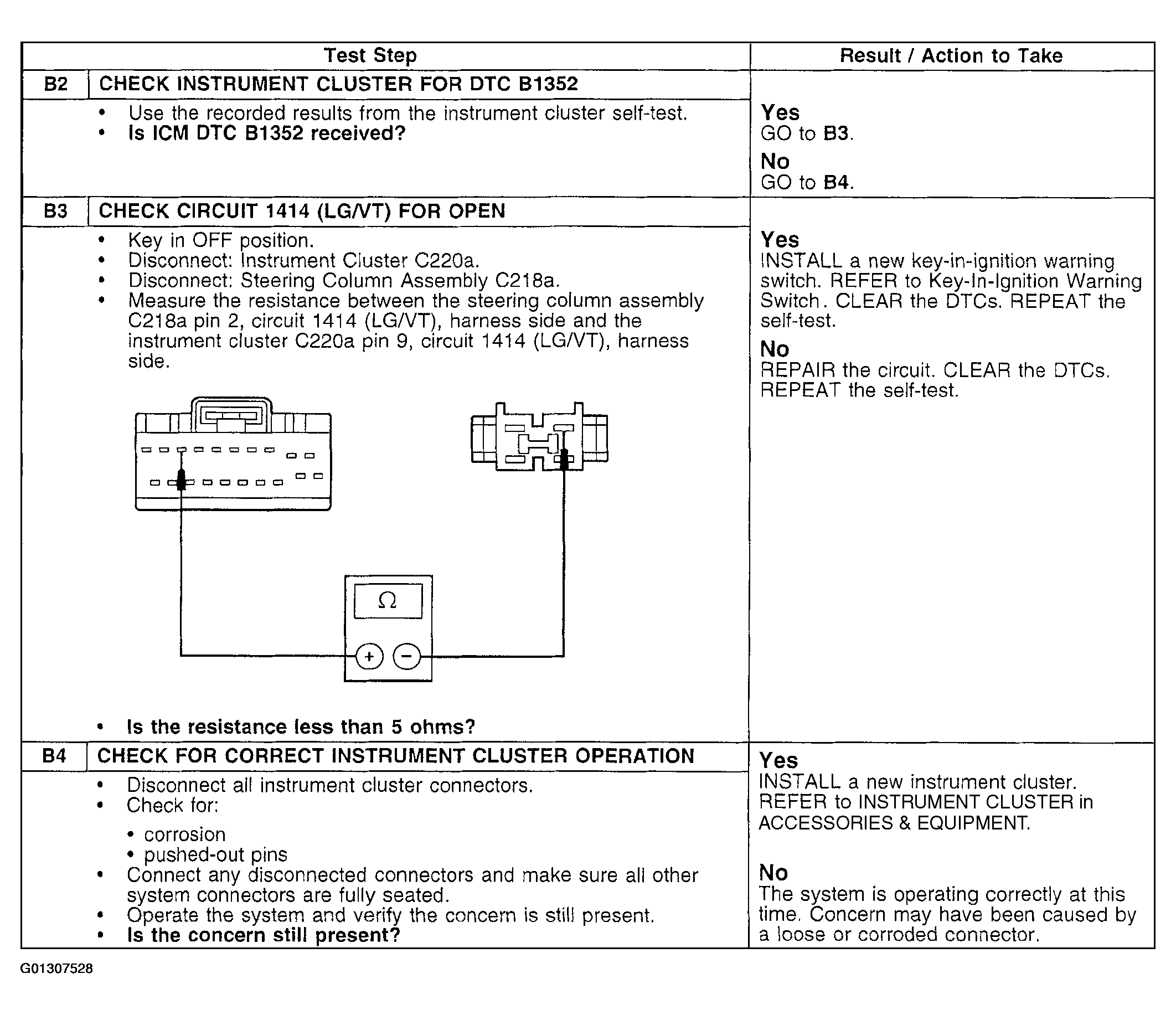

Fig 2: Pinpoint Test B: Key-In-Ignition Chime Is Inoperative (Steps B2-B4)

Courtesy of FORD MOTOR CO.
