Crankshaft Pulley: Removal

Remove the accessory drive belt (8620). For additional information, refer to ACCESSORY DRIVE .
Raise and support the vehicle. For additional information, refer to JACKING & LIFTING .
Remove the RH front wheel (1007).
Remove the splash shield.
- Remove the pin-type retainers.

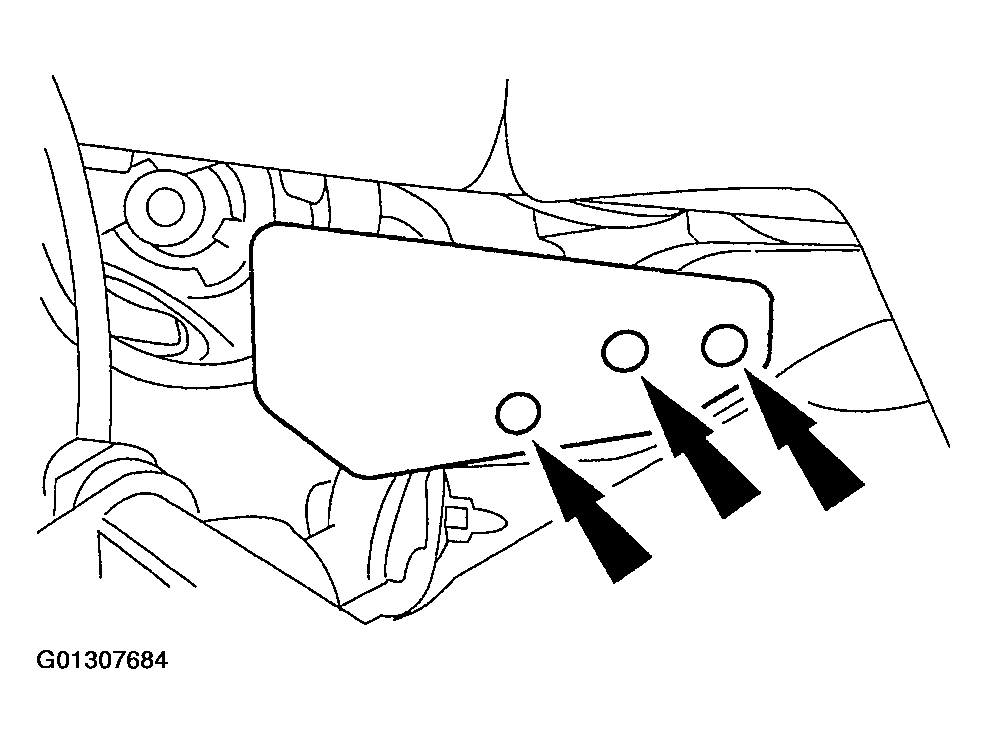

  Fig 1: Identifying Splash Shield
  Courtesy of FORD MOTOR CO.
Remove the crankshaft pulley bolt.

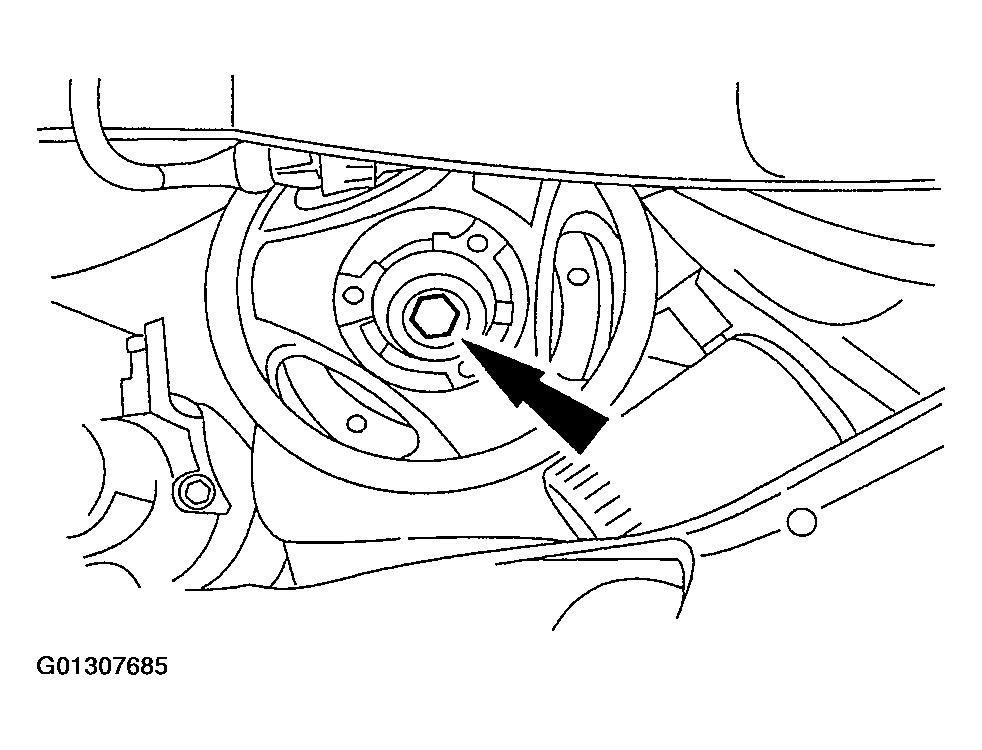

Fig 2: Identifying Crankshaft Pulley Bolt
Courtesy of FORD MOTOR CO.
Disconnect the anti-lock brake wheel sensor connector.

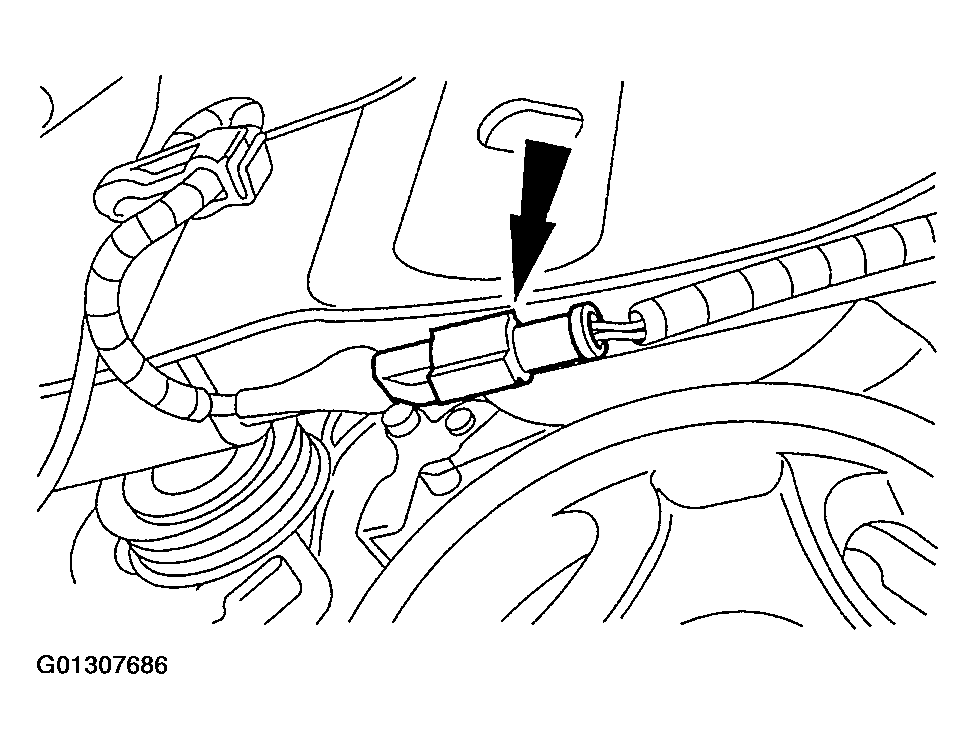

Fig 3: Locating Anti-Lock Brake Wheel Sensor Connector
Courtesy of FORD MOTOR CO.
Position a safety stand under the front subframe.

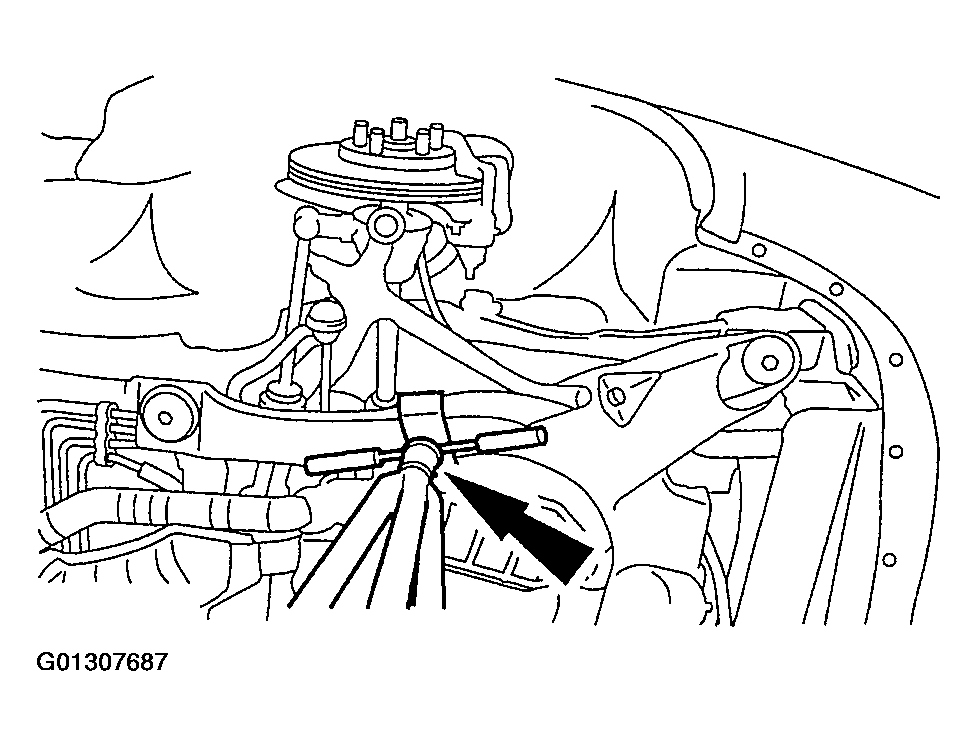

Fig 4: Positioning Safety Stand Under Front Subframe
Courtesy of FORD MOTOR CO.
Lower the front subframe 50.8 mm (2 inches).
- Remove the bolts.
- Lower the subframe.

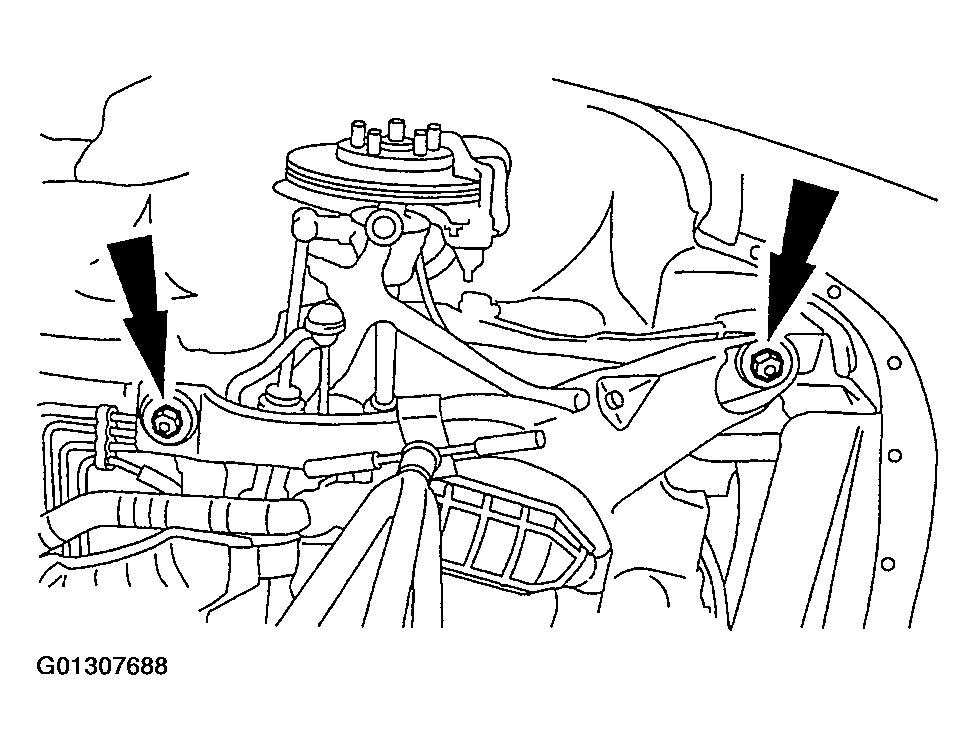

  Fig 5: Locating Front Subframe Bolt
  Courtesy of FORD MOTOR CO.
Using the special tool, remove the crankshaft damper and pulley assembly (6316).

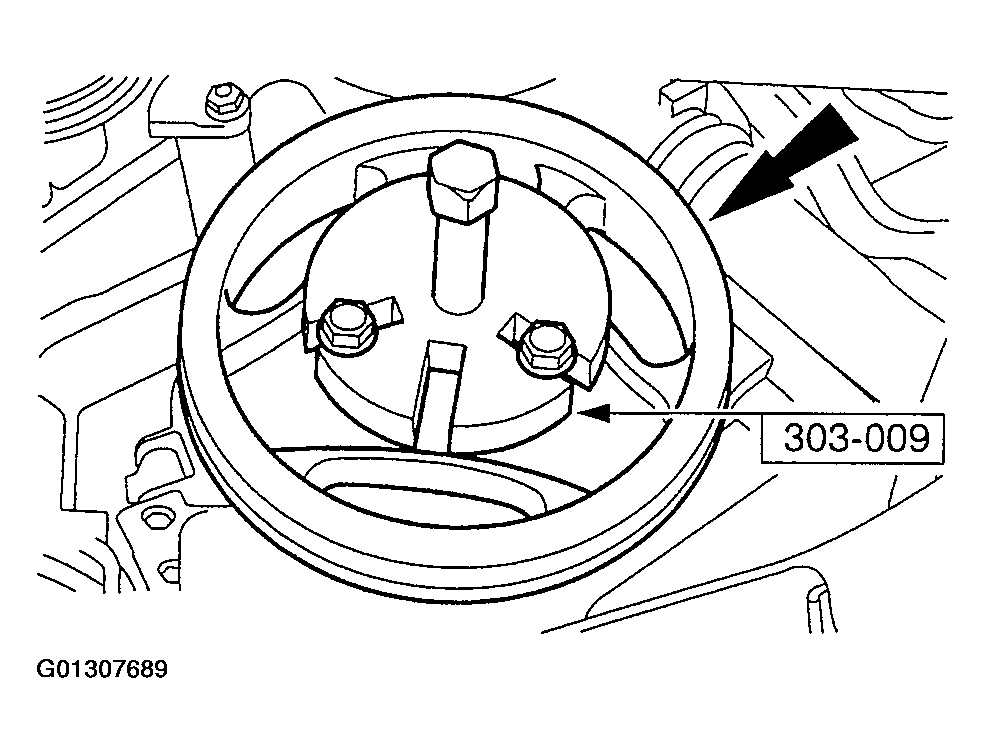

Fig 6: Removing Crankshaft Damper & Pulley Assembly (6316)
Courtesy of FORD MOTOR CO.
