Cylinder Head LH: Removal

CAUTION: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.

Remove the lower intake manifold. For additional information, refer to LOWER INTAKE MANIFOLD .
Remove the LH valve cover. For additional information, refer to VALVE COVER-LH .
Remove the LH exhaust manifold. For additional information, refer to EXHAUST MANIFOLD-LH .
Remove the generator and bracket. For additional information, refer to GENERATOR .

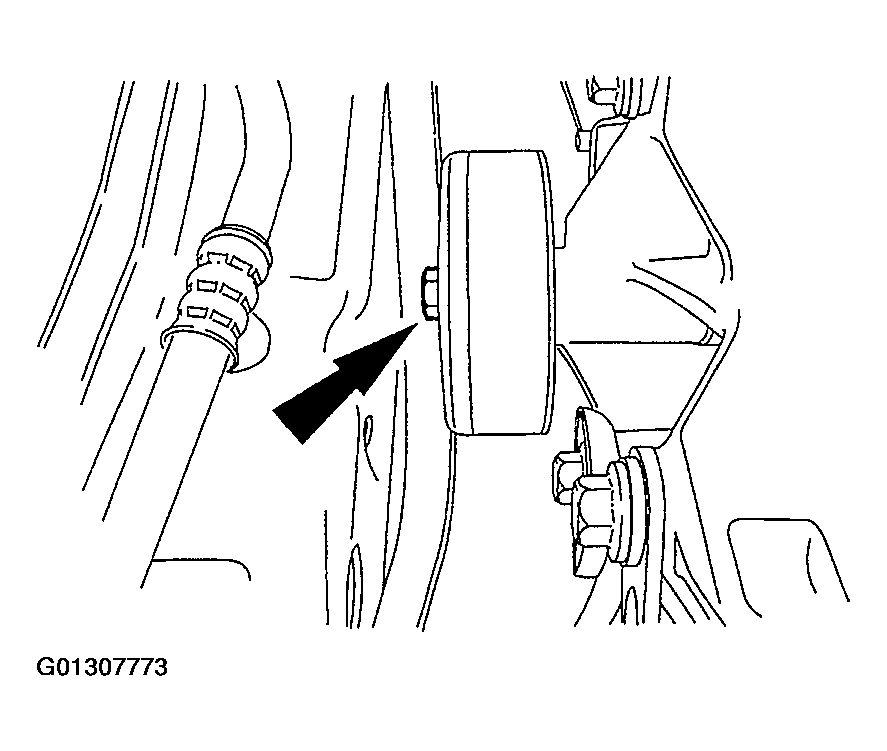

Remove the idler pulley.

Fig 1: Identifying Idler Pulley Bolt
Courtesy of FORD MOTOR CO.

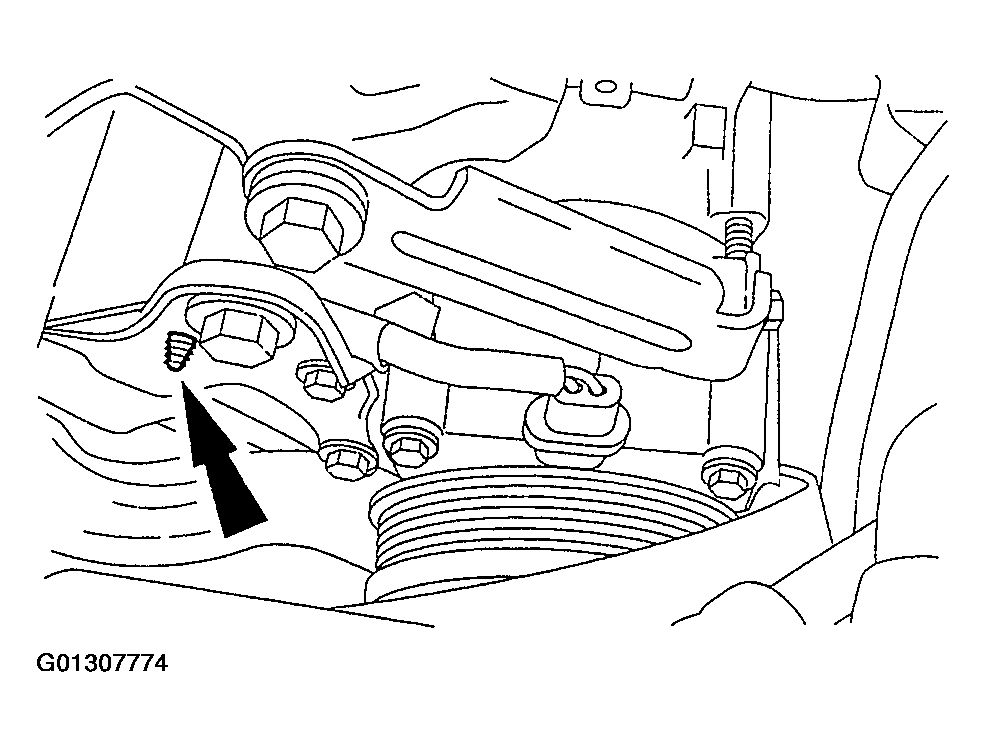

Unclip the A/C wiring harness from the generator bracket brace.

Fig 2: Unclipping A/C Wiring Harness From Generator Bracket Brace
Courtesy of FORD MOTOR CO.

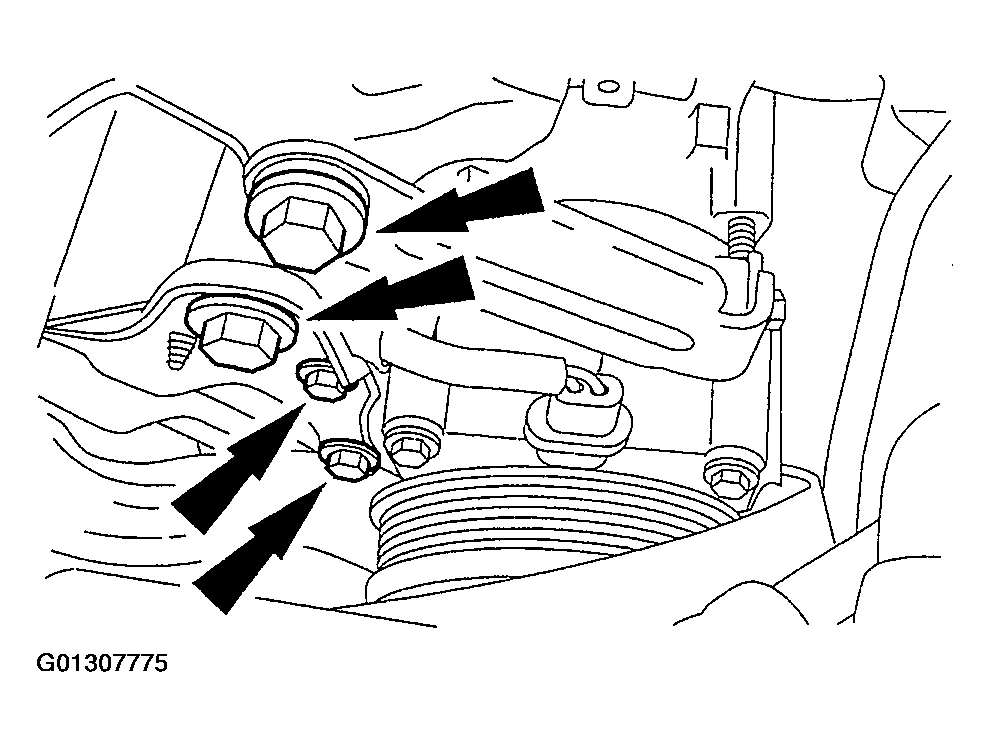

Remove the generator bracket and the bracket brace as an assembly.

Fig 3: Identifying Generator Bracket Brace Bolt
Courtesy of FORD MOTOR CO.

CAUTION: If the components are to be reinstalled, they must be installed in the same position. Mark the components for location.

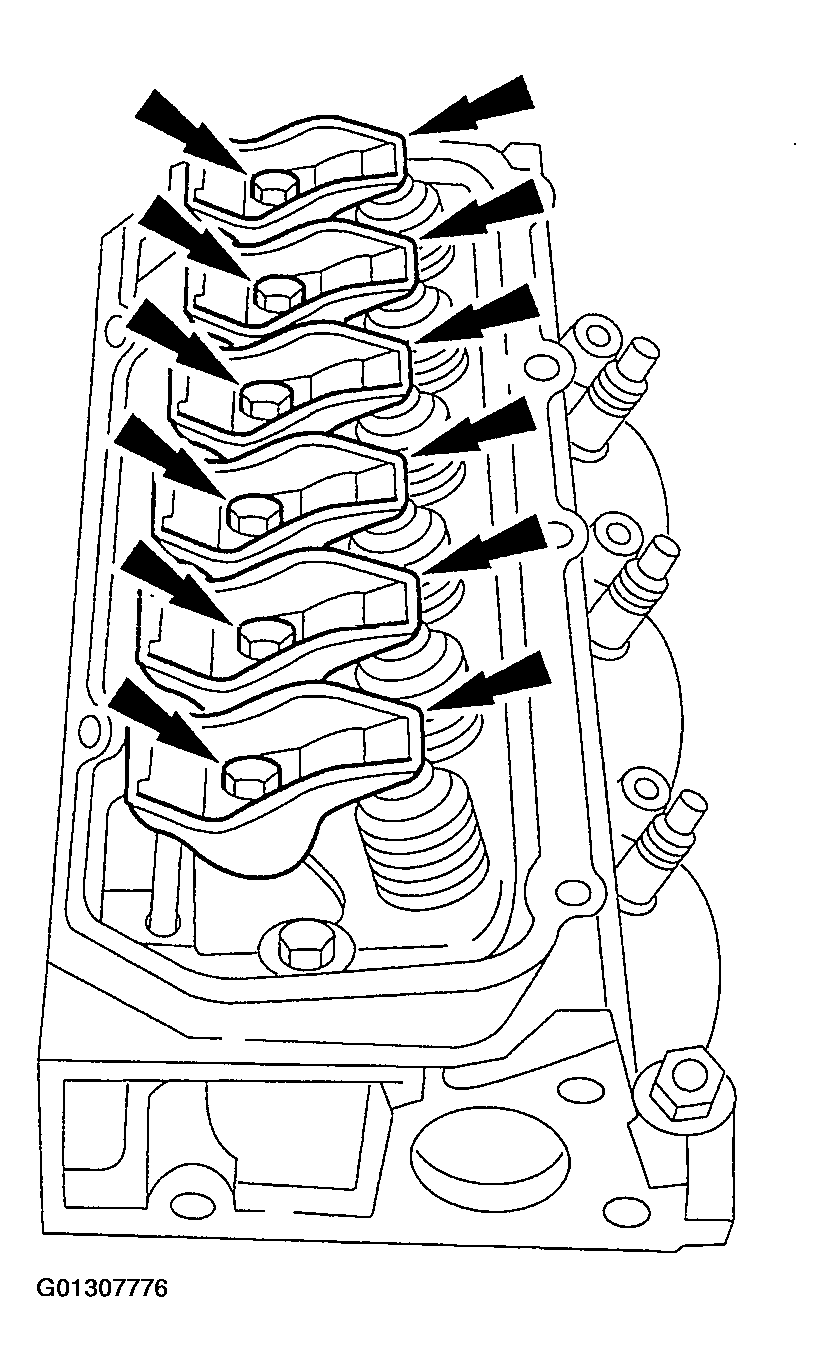

Remove the bolts and the rocker arms.

Fig 4: Identifying Bolts & Rocker Arms
Courtesy of FORD MOTOR CO.
Remove the push rods.

Fig 5: Identifying Push Rods
Courtesy of FORD MOTOR CO.

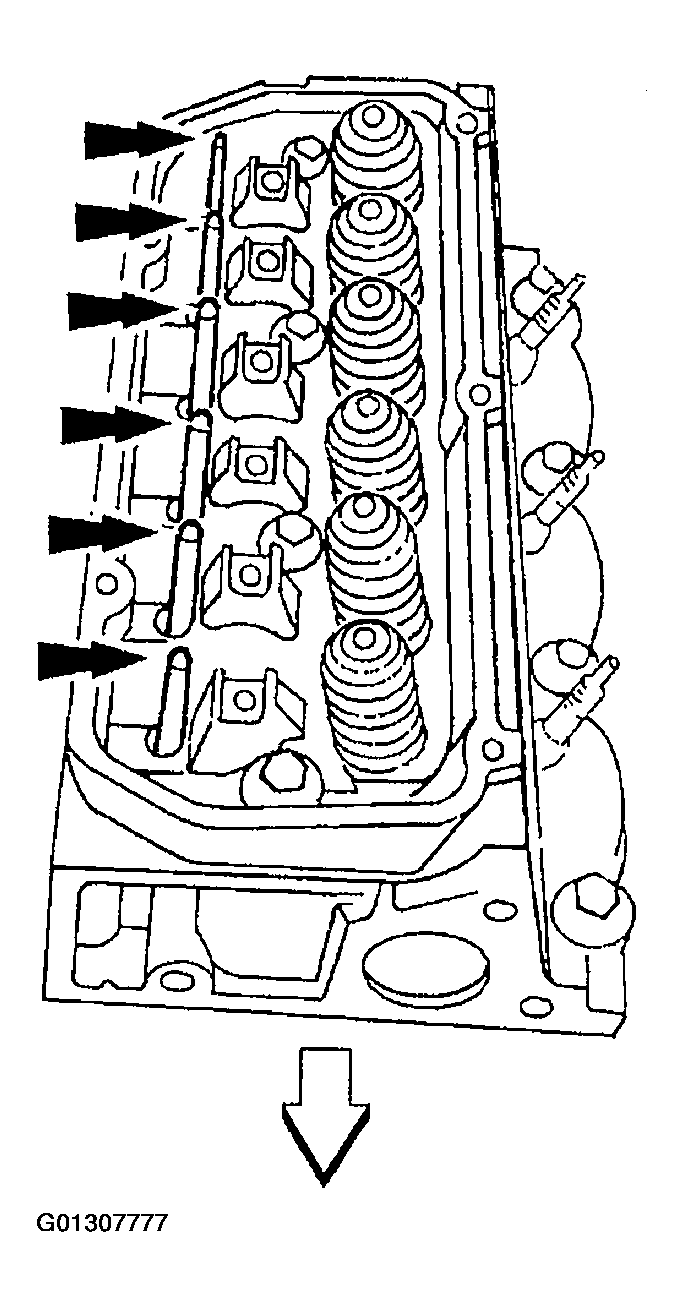

Remove the exhaust manifold lower studs.

Fig 6: Identifying Exhaust Manifold Lower Studs
Courtesy of FORD MOTOR CO.

NOTE: Record the location of long and short bolts for installation.

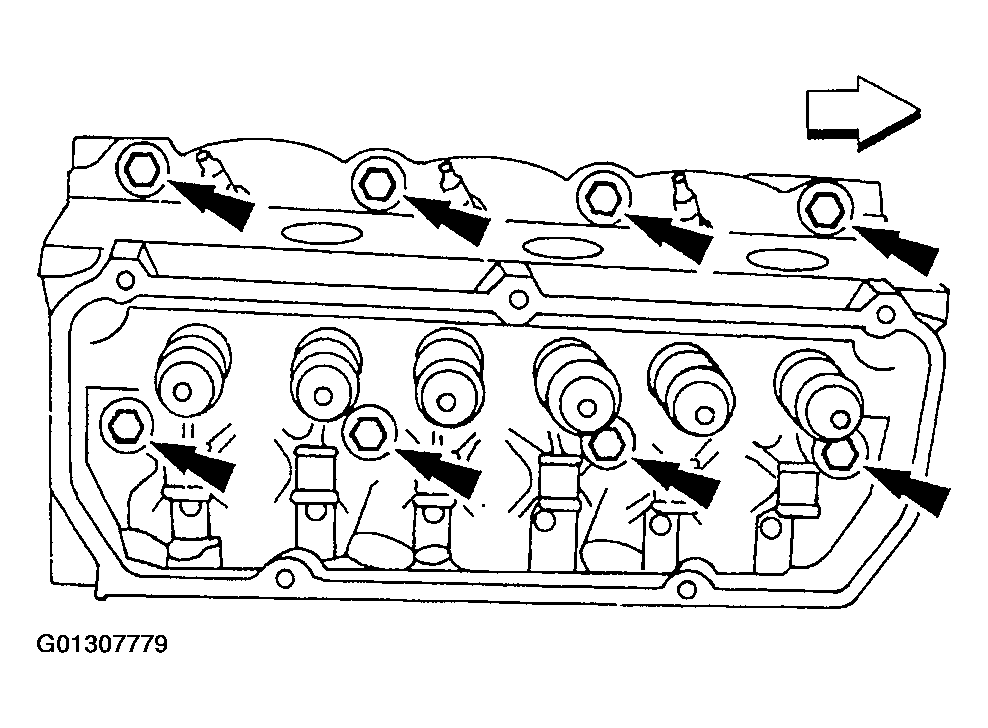

Fig 7: Identifying Cylinder Head Bolts

Courtesy of FORD MOTOR CO.

Remove and discard the bolts.

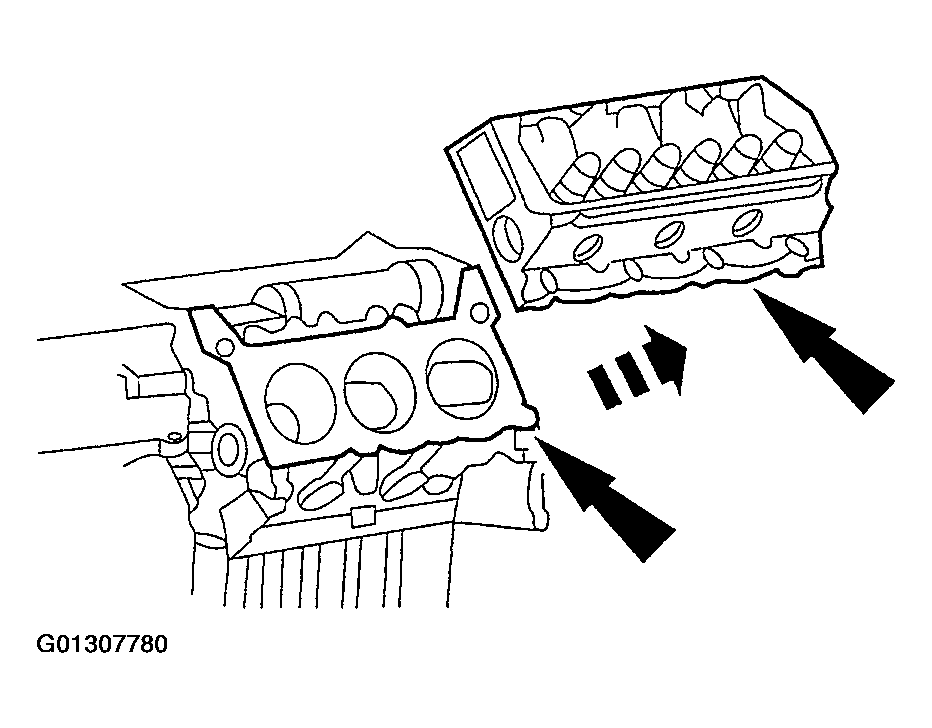

Remove the cylinder head and the cylinder head gasket.

Fig 8: Removing Cylinder Head
Courtesy of FORD MOTOR CO.
