Exhaust Manifold-LH: Removal

  1. Remove the three-way catalytic converter (5F250). For additional information, refer to EXHAUST SYSTEM .
  2. Remove the oil level indicator tube (6754). For additional information, refer to OIL LEVEL INDICATOR AND TUBE .
  3. Disconnect the EGR tube (9D477).
    • Loosen the nut.
    • Separate the tube.

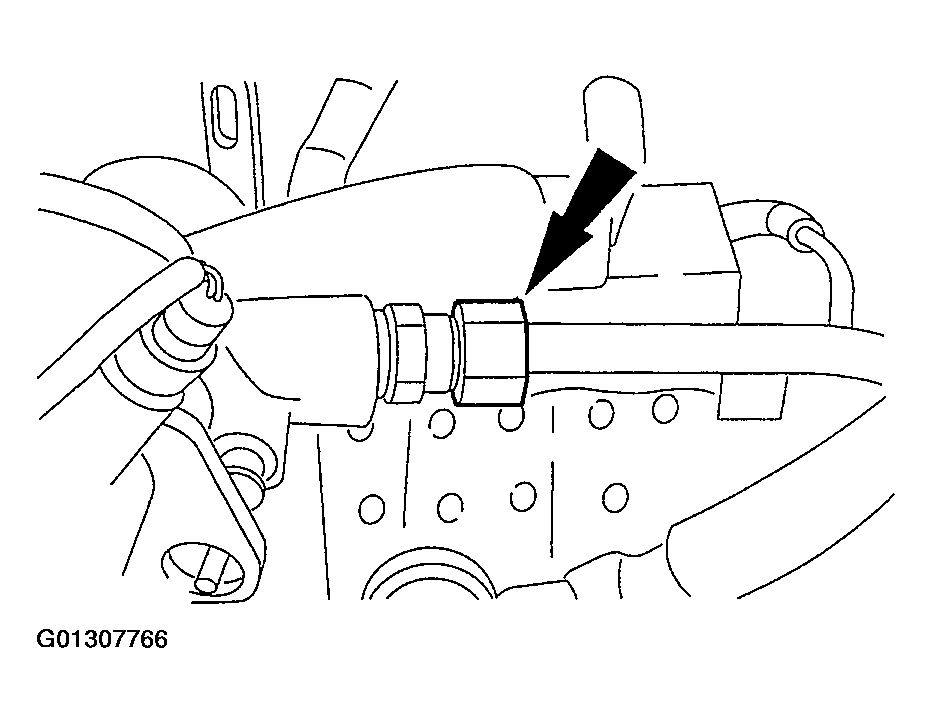

      Fig 1: Identifying EGR Tube (9D477)
      G01307766Courtesy of FORD MOTOR CO.
  4. Remove the exhaust manifold (9431).
    1. Disconnect the spark plug wires.
    2. Remove the nuts.
    3. Remove the exhaust manifold.

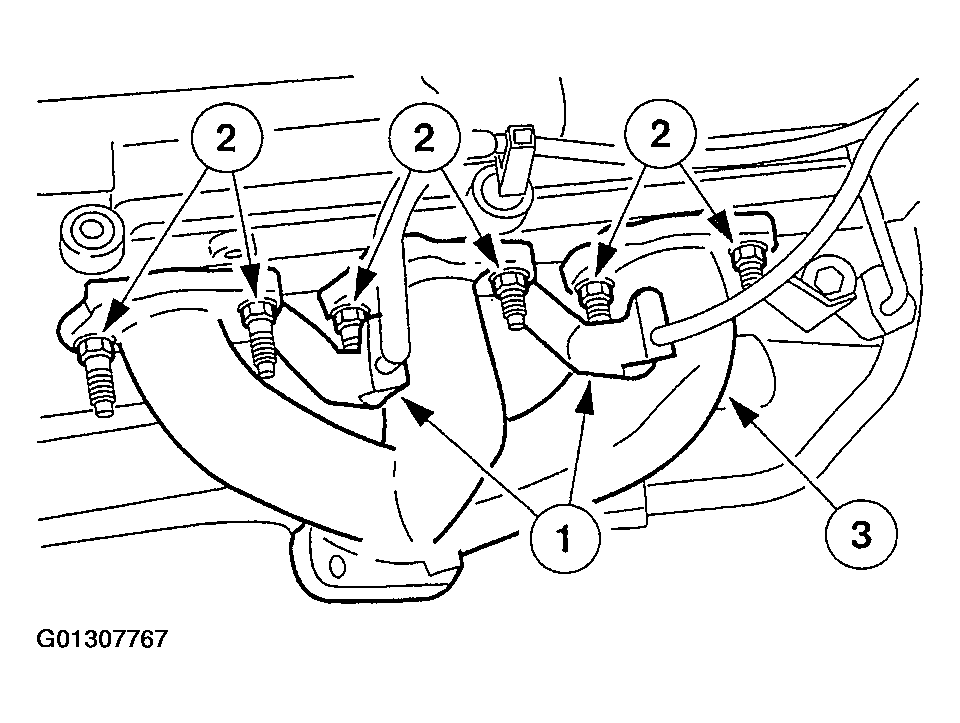

      Fig 2: Removing Exhaust Manifold
      G01307767Courtesy of FORD MOTOR CO.
