Exhaust Manifold-RH: Removal

  1. Remove the dual converter Y-pipe (5F250). For additional information, refer to EXHAUST SYSTEM .
  2. Remove the RH exhaust manifold (9430).
    • Remove the nuts.

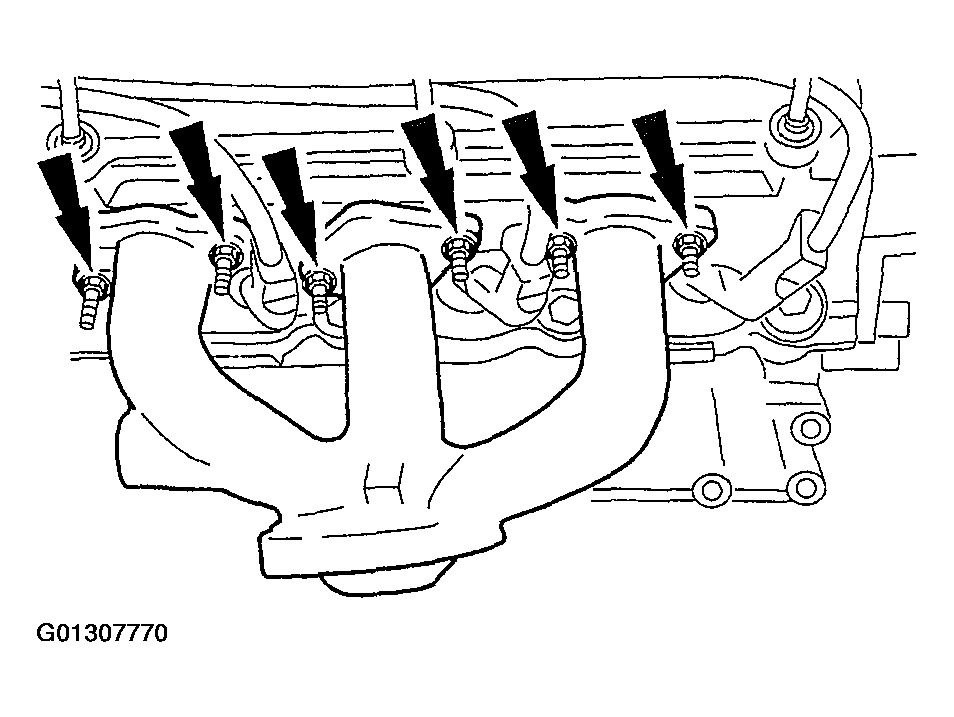

      Fig 1: Identifying RH Exhaust Manifold Nuts
      G01307770Courtesy of FORD MOTOR CO.
