Removal and Installation

CAUTION: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.

Remove the generator. For additional information, refer to GENERATOR .
Remove the idler pulley.

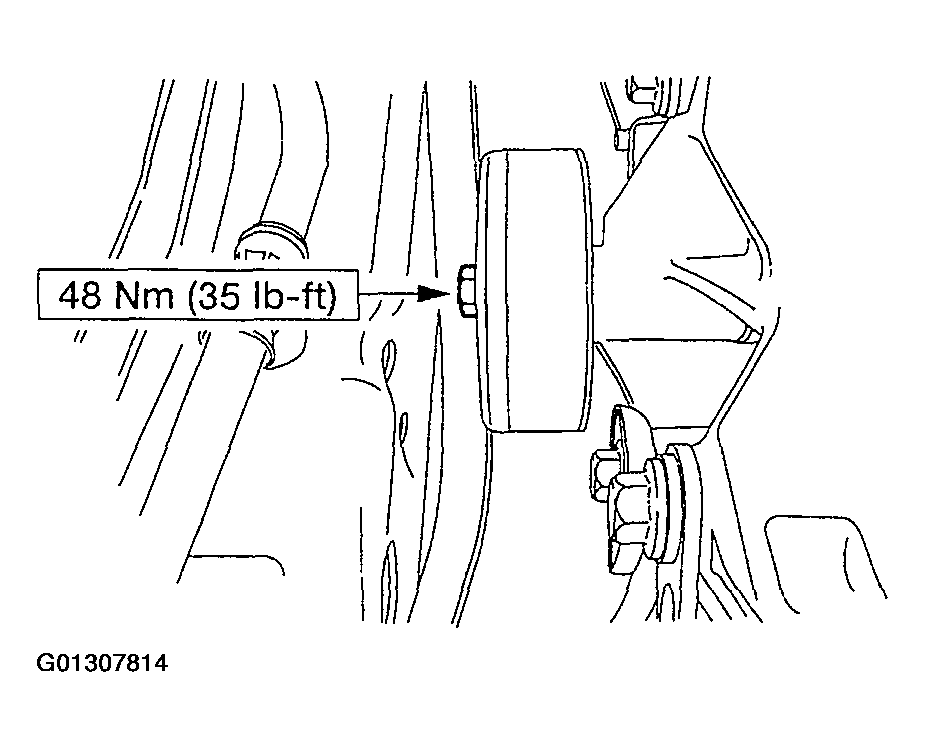

Fig 1: Identifying Idler Pulley Bolt
Courtesy of FORD MOTOR CO.
Unclip the A/C wiring harness from the generator bracket brace.

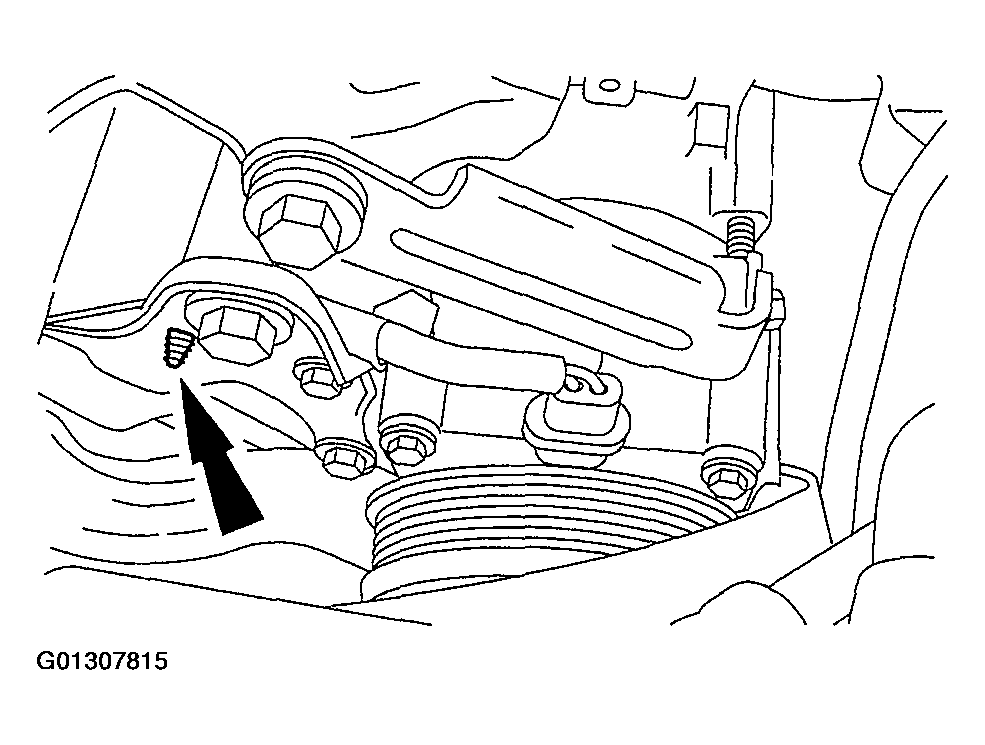

Fig 2: Unclipping A/C Wiring Harness From Generator Bracket Brace
Courtesy of FORD MOTOR CO.
Remove the bolts and the generator bracket and the bracket brace as an assembly from the vehicle.

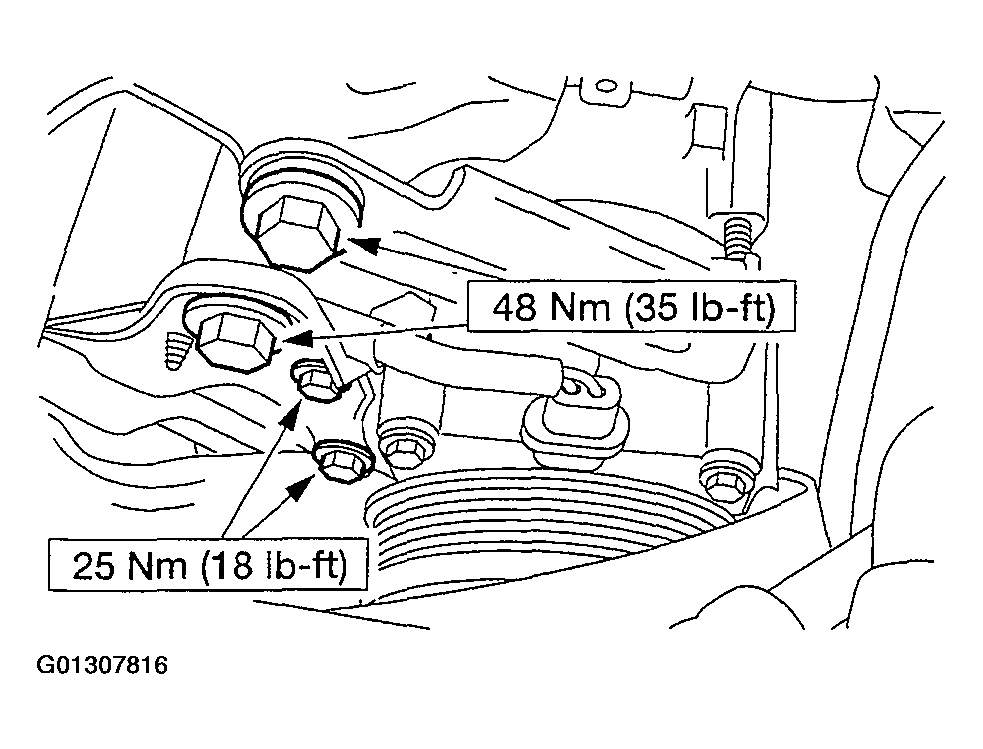

Fig 3: Identifying Generator Bracket Brace Bolts
Courtesy of FORD MOTOR CO.
Disconnect the oil pressure sender electrical connector.

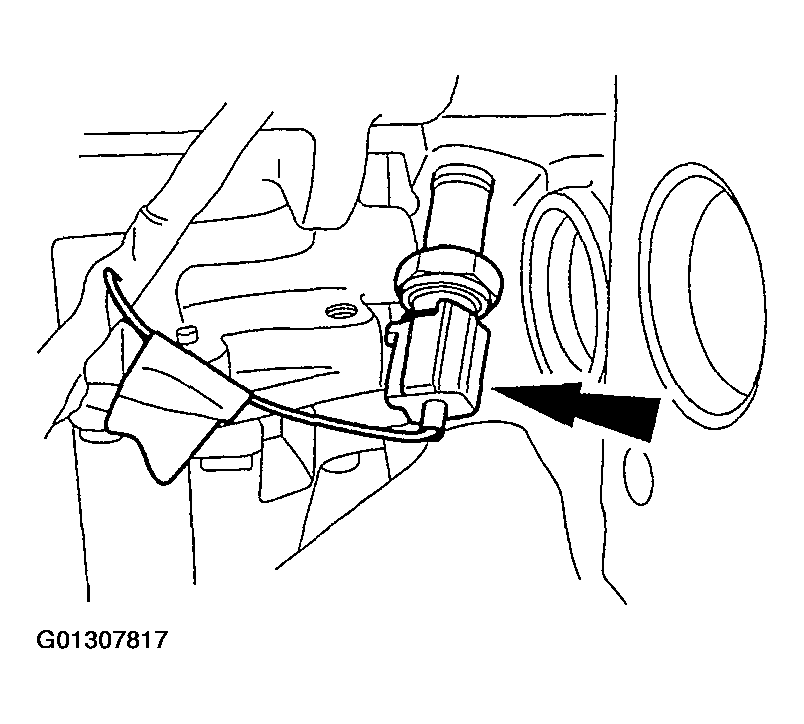

Fig 4: Locating Oil Pressure Sender Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the oil pressure sender.
To install, reverse the removal procedure.

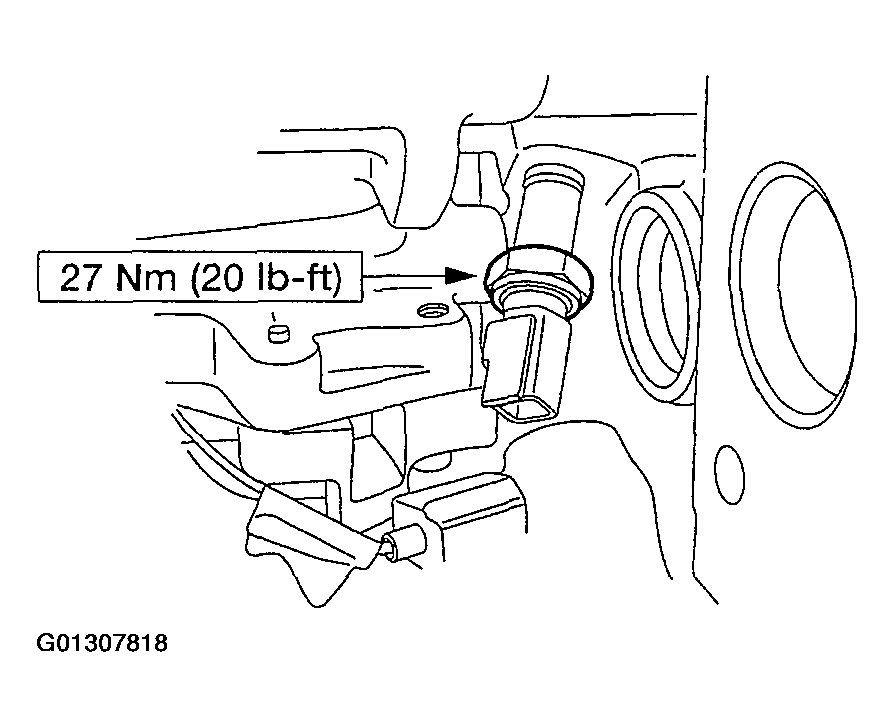

Fig 5: Oil Pressure Sender Tightening Torque

Courtesy of FORD MOTOR CO.
