Removal and Installation

CAUTION: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages or the oil pan, can cause engine failure.

Raise and support the vehicle. For additional information, refer to JACKING & LIFTING .
Remove the drain plug and drain the engine oil.

Fig 1: Identifying Drain Plug
Courtesy of FORD MOTOR CO.
Remove the oil filter.

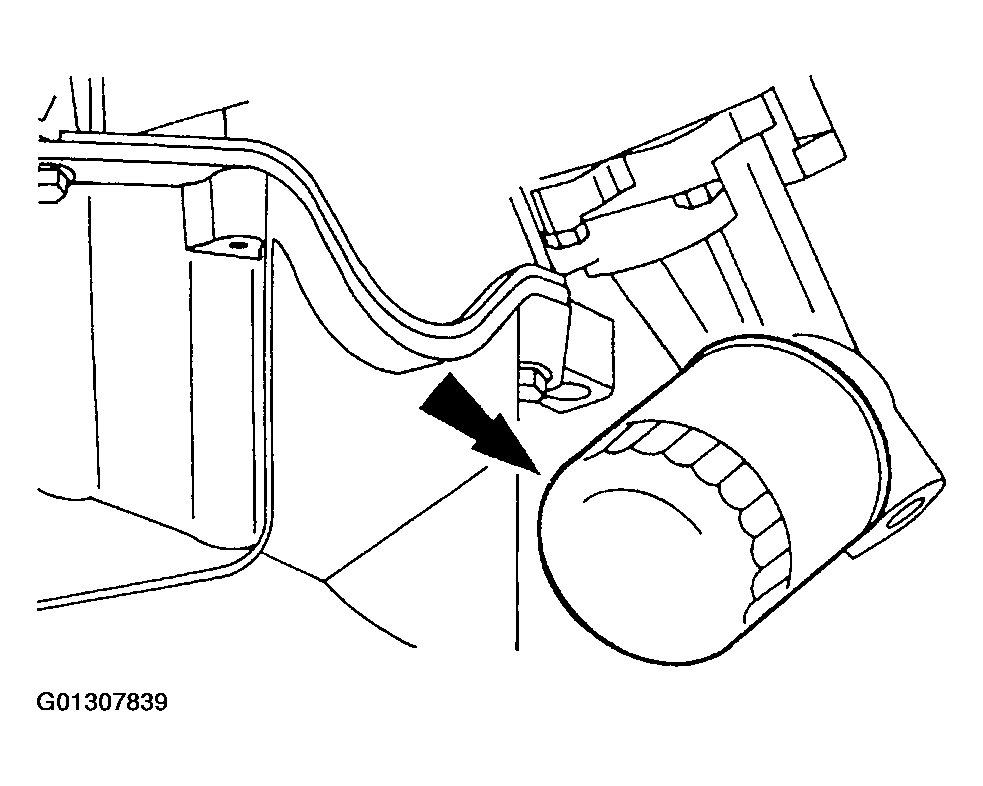

Fig 2: Removing Oil Filter
Courtesy of FORD MOTOR CO.
Remove the oil filter housing bolts.

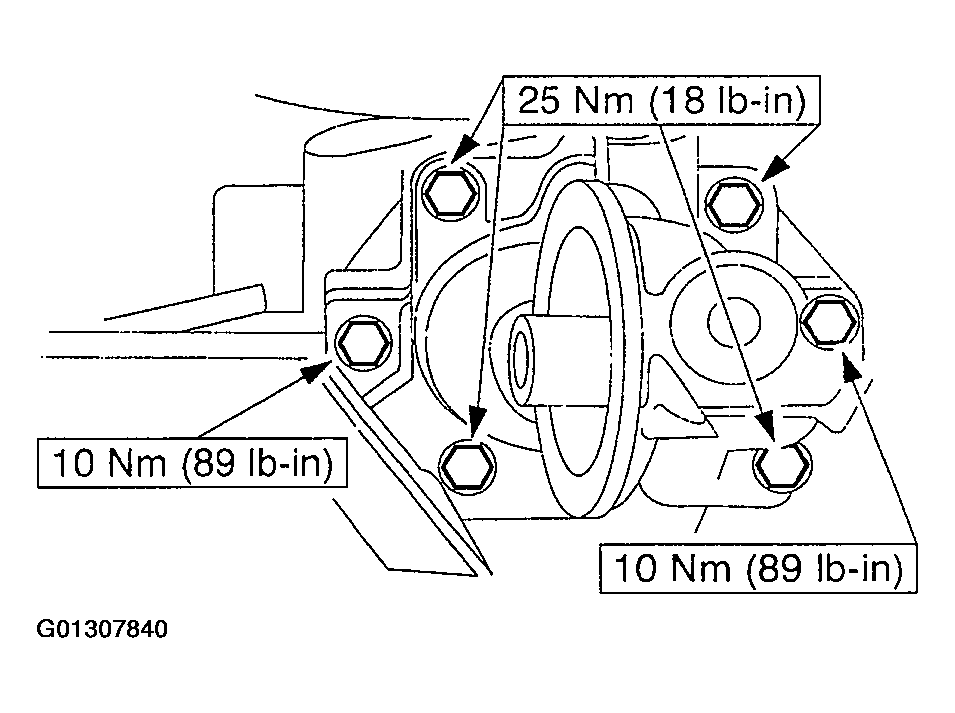

Fig 3: Oil Filter Housing Bolt Tightening Torque
Courtesy of FORD MOTOR CO.
Remove the following:
1. The oil pump drive gear.
2. The oil pump driven gear.
3. The oil pump O-ring seal. Discard the O-ring seal.
4. The oil pump cover.

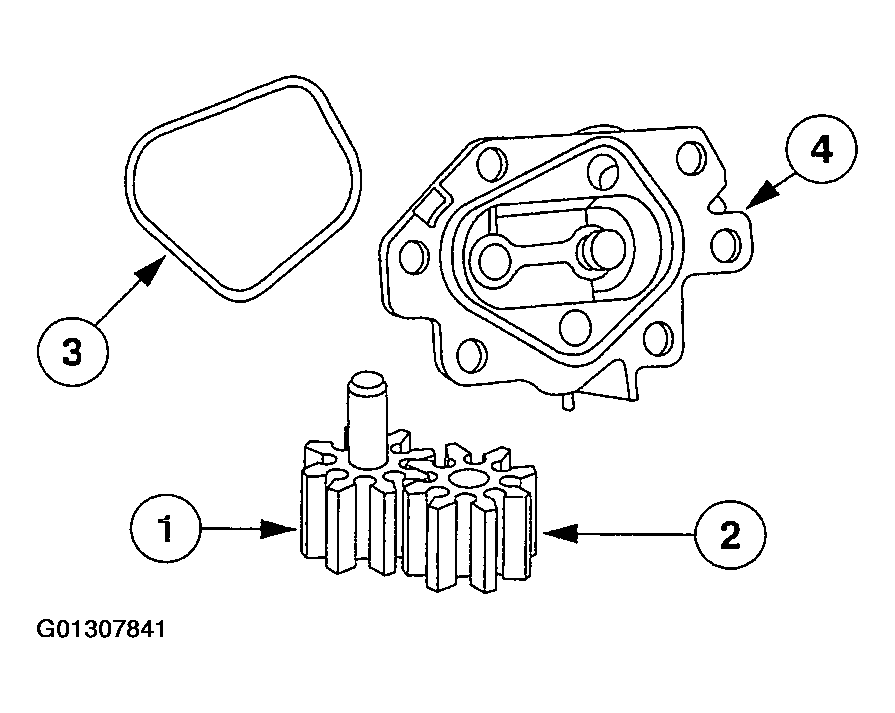

  Fig 4: Exploded View Of Oil Pump
  Courtesy of FORD MOTOR CO.
Clean and inspect the components. Install new components if necessary.
Inspect the face of the oil pump for flatness.

Fig 5: Inspecting Face Of Oil Pump For Flatness
Courtesy of FORD MOTOR CO.

NOTE: Lubricate parts with clean engine oil before assembly.

To install, reverse the removal procedure.
