Removal and Installation

CAUTION: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.
  1. Remove the bolt, then position the oil dipstick tube and bracket aside.

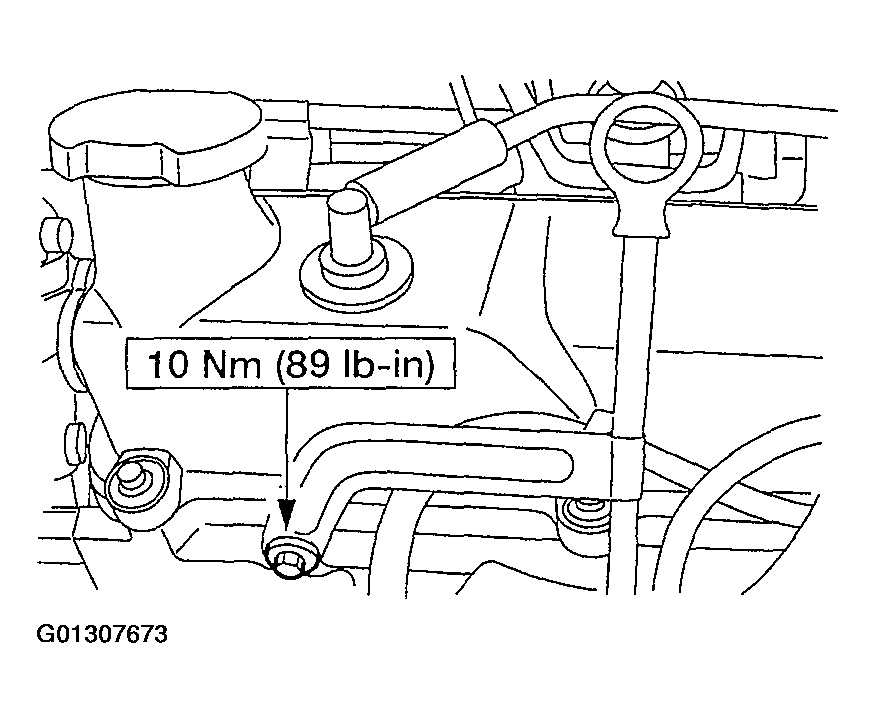

    Fig 1: Identifying Oil Dipstick Tube Bracket Bolt
    G01307673Courtesy of FORD MOTOR CO.
  2. Position the spark plug wires aside.
    • Remove the retainers.

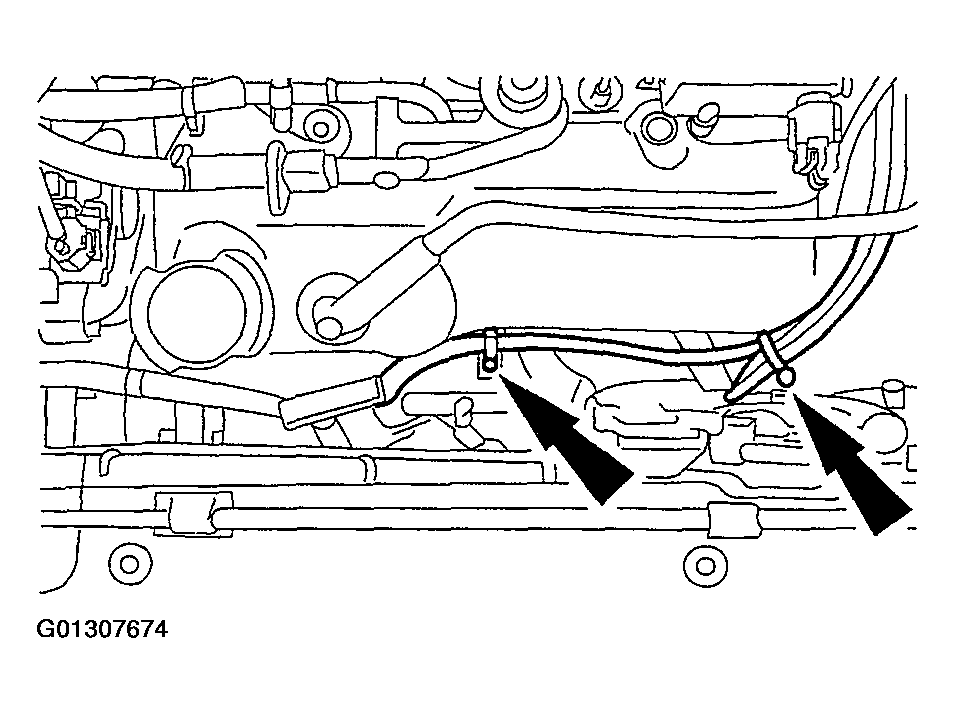

      Fig 2: Identifying Spark Plug Wires
      G01307674Courtesy of FORD MOTOR CO.
  3. Disconnect the positive crankcase ventilation (PCV) valve.

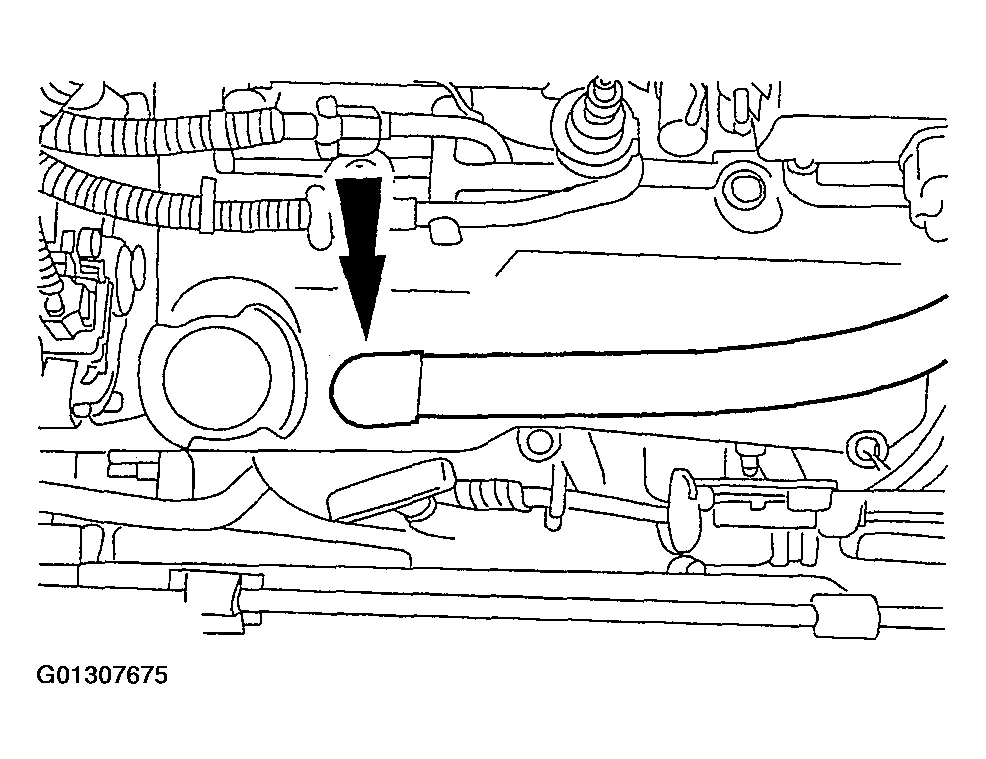

    Fig 3: Identifying Positive Crankcase Ventilation (PCV) Valve
    G01307675Courtesy of FORD MOTOR CO.
    4. NOTE: Do not discard the gasket. It may be reused if it is not damaged.
  4. Remove the valve cover.
    • Remove the bolts.

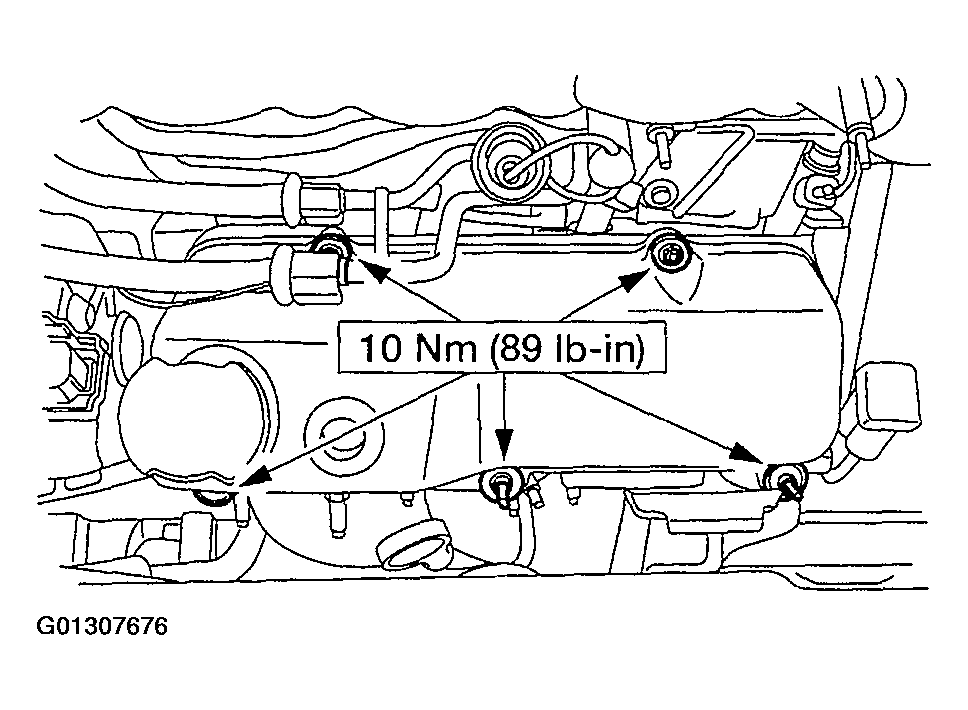

      Fig 4: Identifying Tightening Torque Of Valve Cover Bolt
      G01307676Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
    • Install a new valve cover gasket as necessary.
