Removal and Installation

CAUTION: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.

Remove the cowl. For additional information, refer to FRONT END BODY PANELS .
Disconnect the positive crankcase ventilation (PCV) tube.

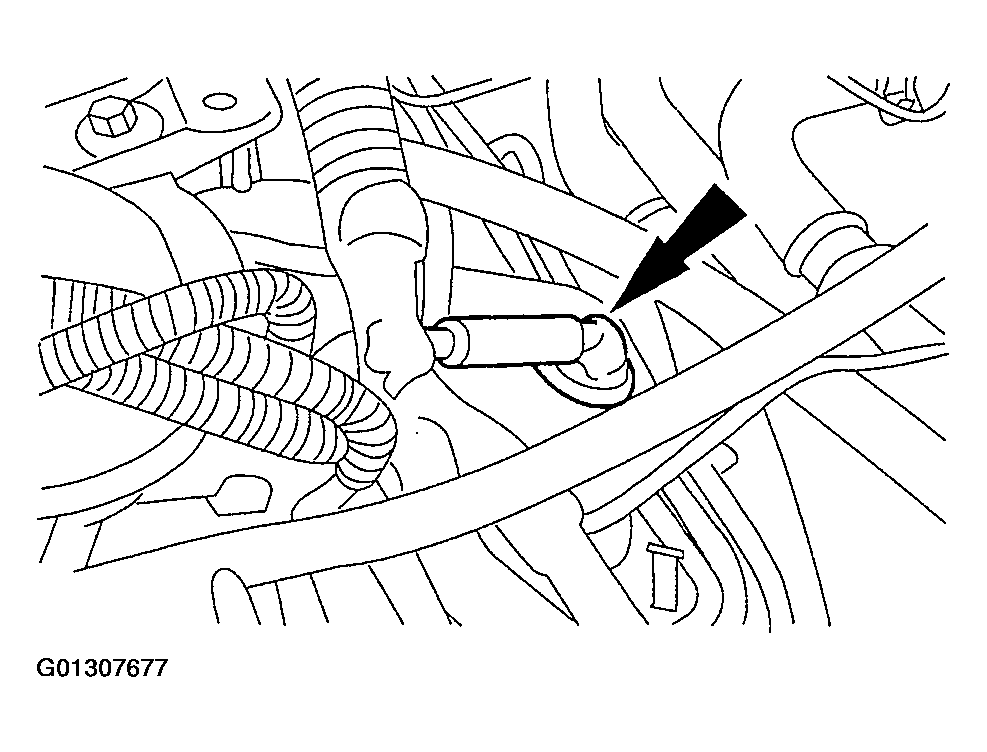

Fig 1: Identifying Positive Crankcase Ventilation (PCV) Tube
Courtesy of FORD MOTOR CO.
Disconnect the brake booster and fuel vapor return hoses.

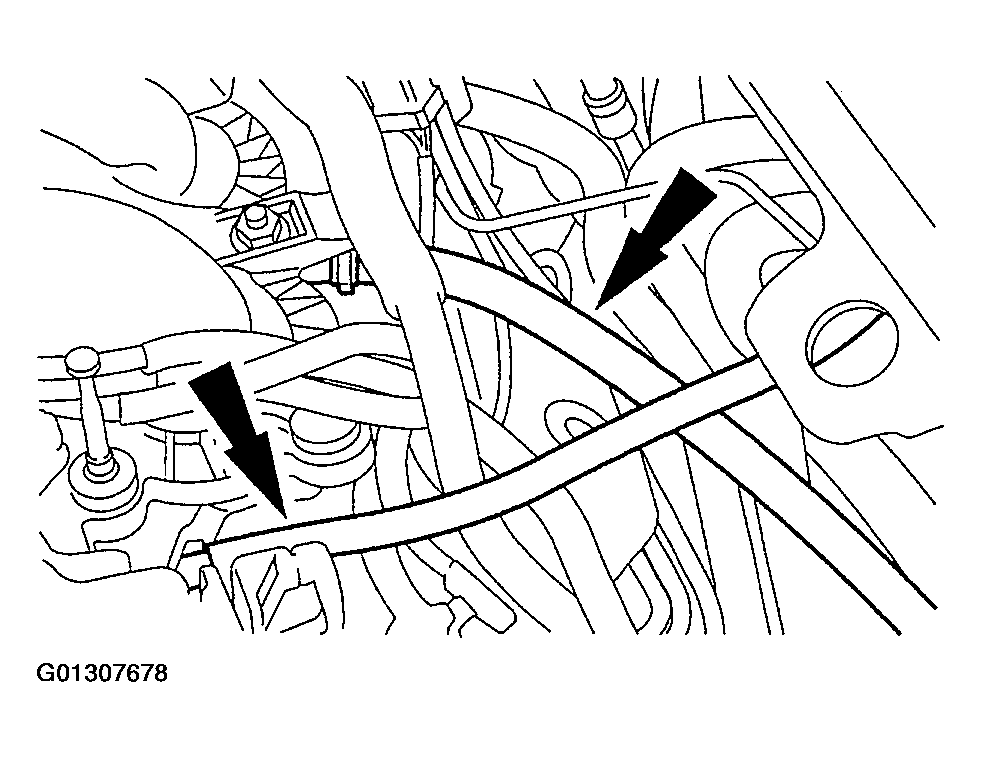

Fig 2: Identifying Brake Booster & Fuel Vapor Return Hoses
Courtesy of FORD MOTOR CO.
Remove the nuts, then position the engine vacuum regulator (EVR) aside.

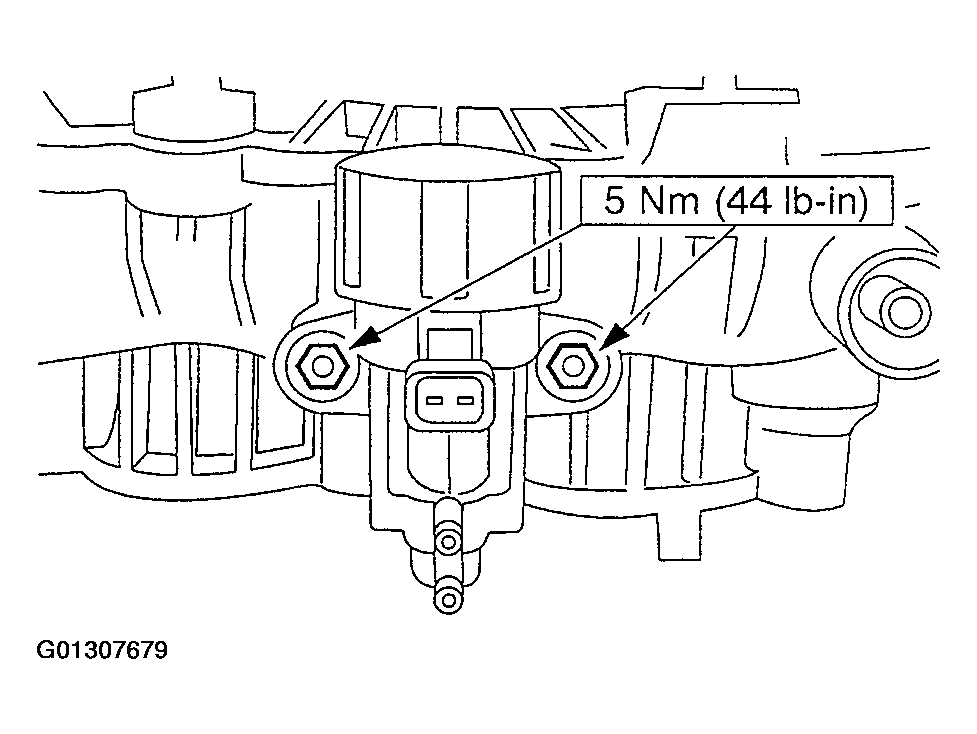

Fig 3: Identifying Engine Vacuum Regulator (EVR) Nut
Courtesy of FORD MOTOR CO.
Remove the ignition coil. For additional information, refer to IGNITION COIL .
Remove the spark plug wire retainers, then position the spark plug wires aside.

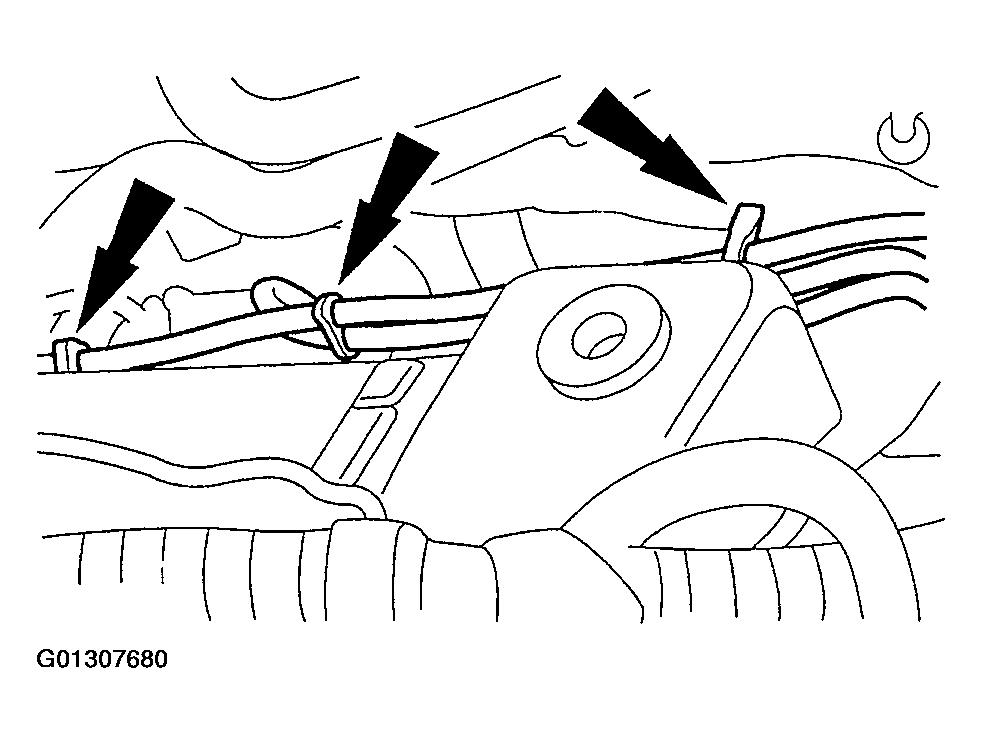

Fig 4: Identifying Spark Plug Wire Retainers
Courtesy of FORD MOTOR CO.

NOTE: Do not discard the gasket. The gasket may be reused if it is not damaged.

Remove the RH valve cover.
1. Remove the stud bolts.
2. Remove the bolts.
3. Remove the valve cover.

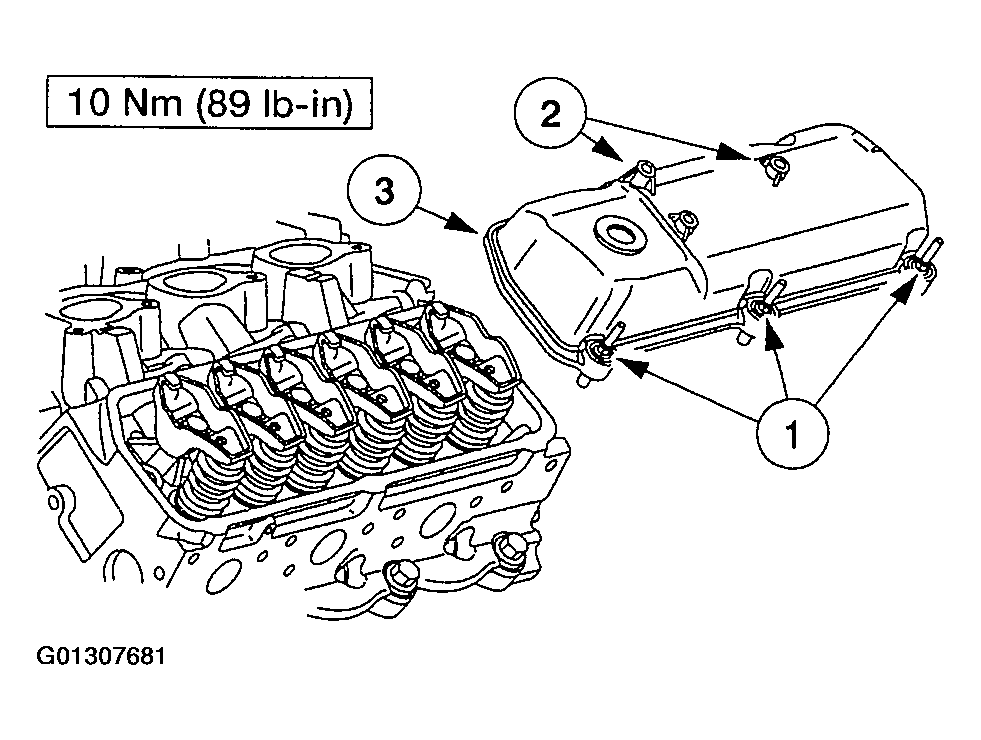

  Fig 5: Removing Valve Cover
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Install a new valve cover gasket as necessary.
