Section 1052 (Exterior Lighting System)
›
Diagnosis And Testing
›
Autolamps
›
Connector Circuit Reference
›
Vehicle Security Module C3203e
Vehicle Security Module C3203e
WARNING:
This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

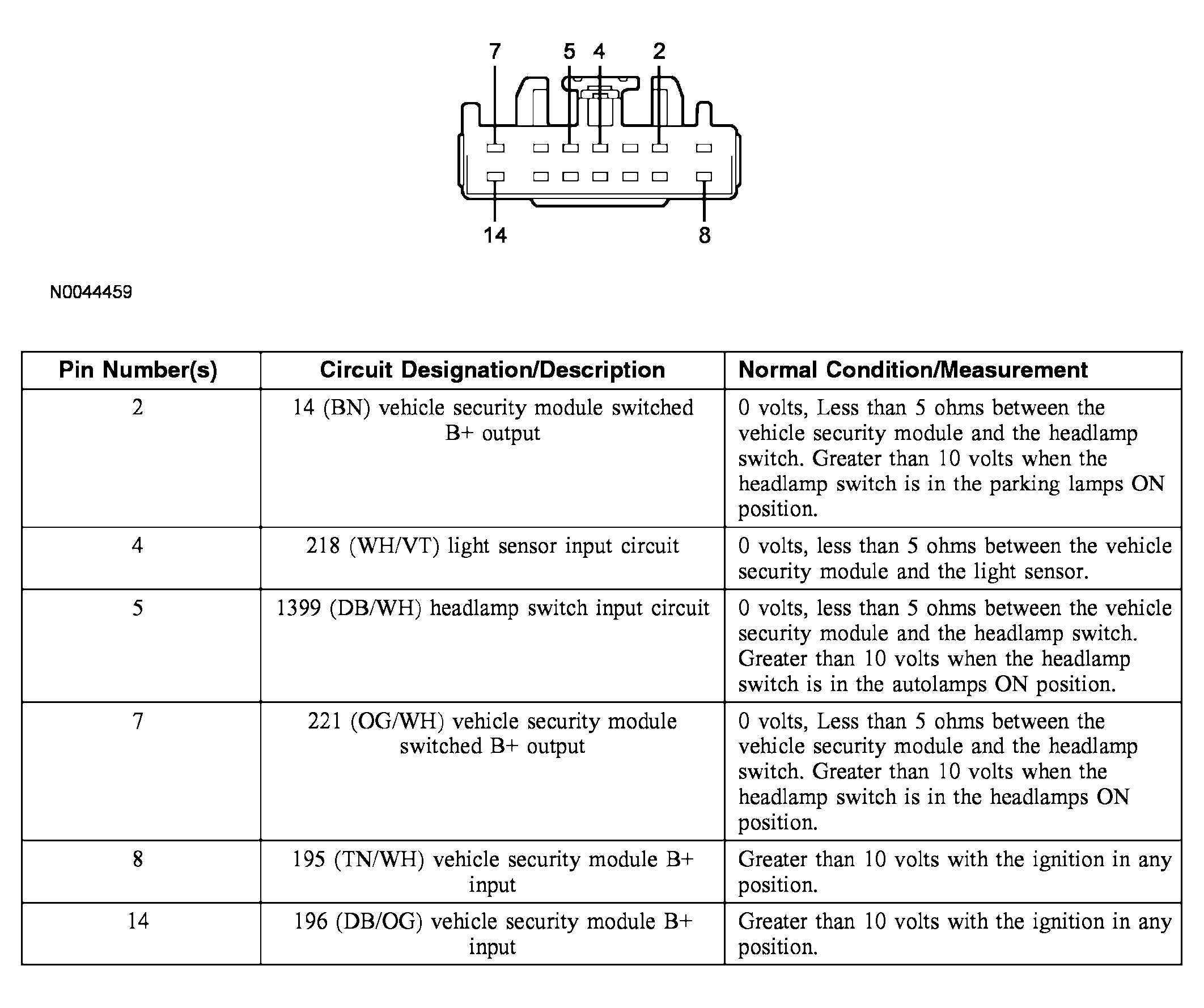

Fig 1: Identifying Vehicle Security Module C3203e Connector Pinouts
Courtesy of FORD MOTOR CO.
