Auxiliary Coolant Pump Relay

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Auxiliary Coolant Pump Relay

Courtesy of FORD MOTOR CO.

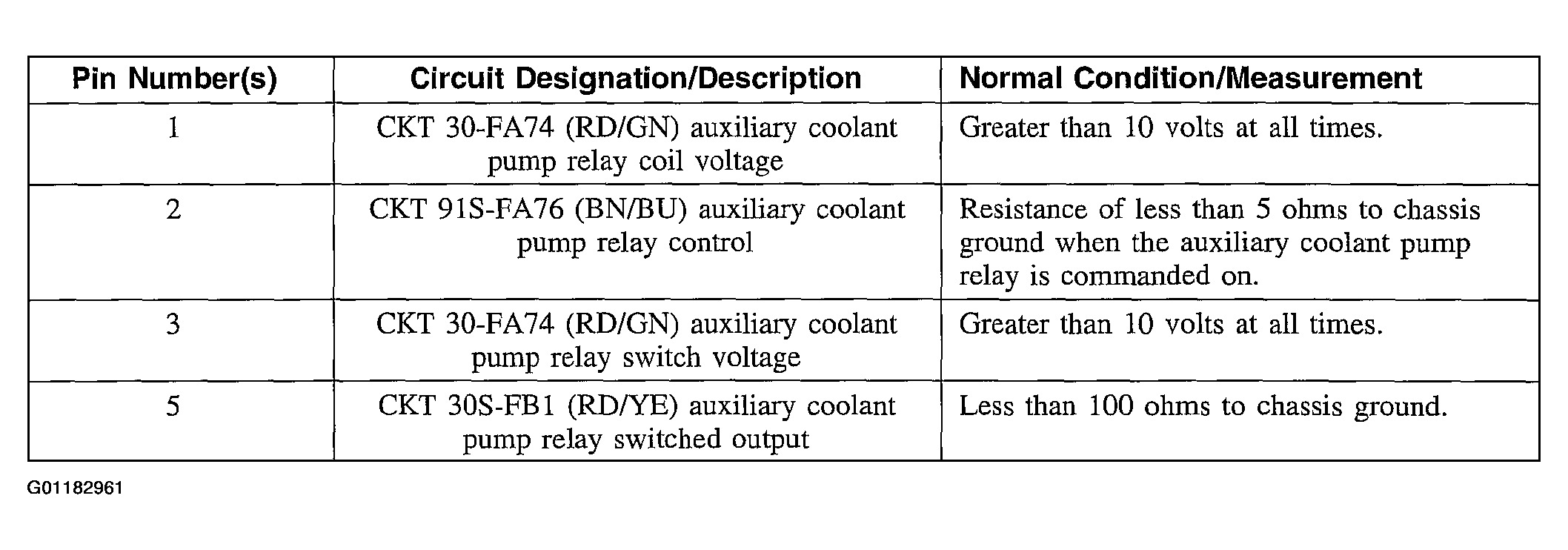

Fig 2: Auxiliary Coolant Pump Relay Pin Specifications Chart

Courtesy of FORD MOTOR CO.
