Section 249 (Engine - 4.6L & 5.4L)
›
Description And Operation
›
Engine Component View
›
Engine Lubrication
Engine Lubrication
WARNING:
This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

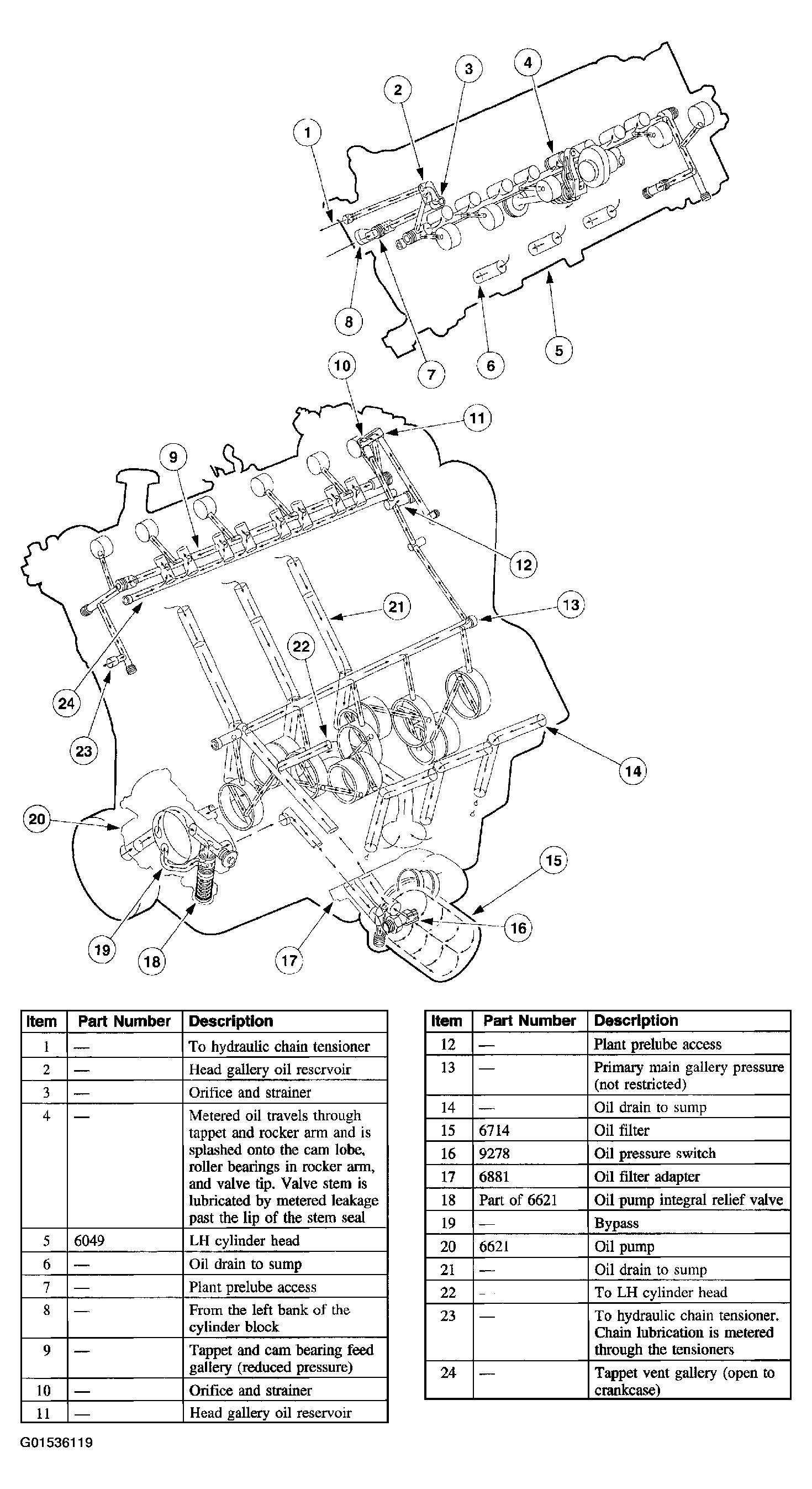

Fig 1: Identifying Engine Lubrication
Courtesy of FORD MOTOR CO.
