Intake Manifold Assembly - 5.4L: Assembly

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Install the water crossover tube.

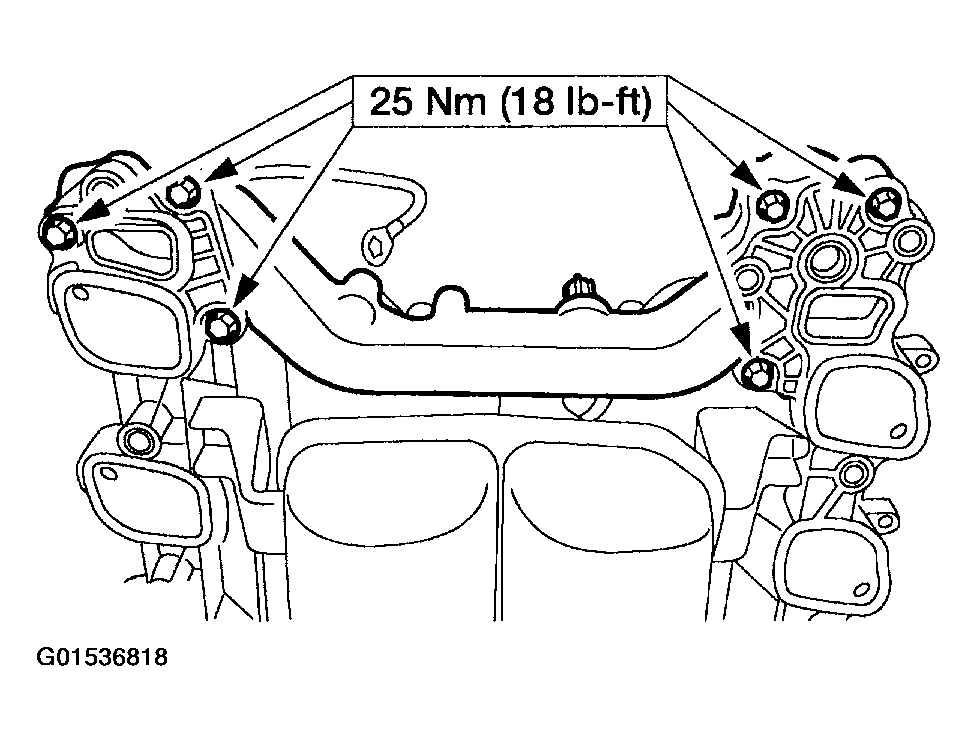

Fig 1: Installing Water Crossover Tube
Courtesy of FORD MOTOR CO.
Install the engine noise shield.

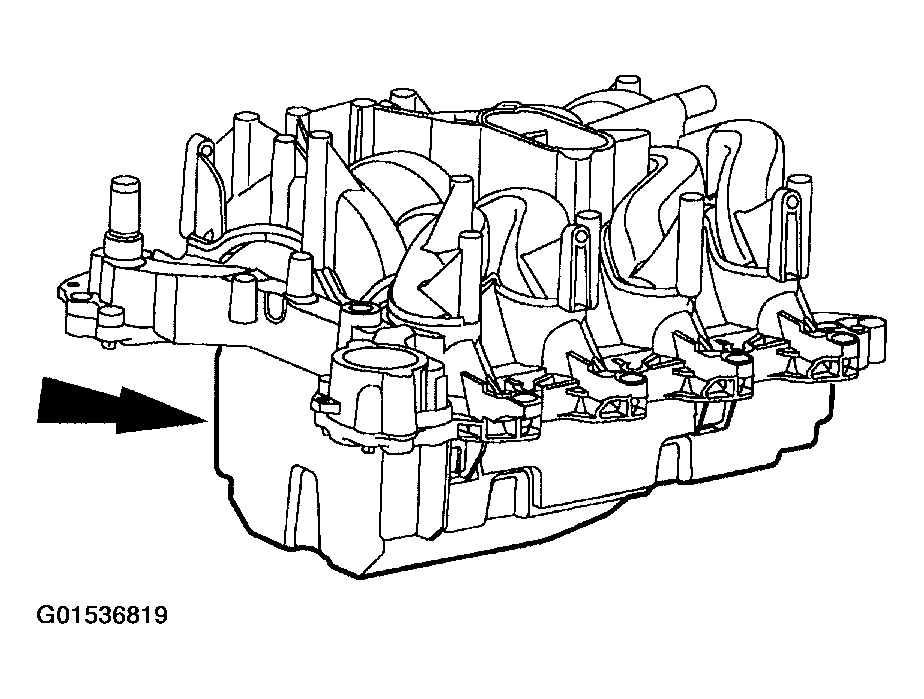

Fig 2: Installing Engine Noise Shield
Courtesy of FORD MOTOR CO.

NOTE: Lubricate the O-ring seals with clean engine oil, to aid installation.

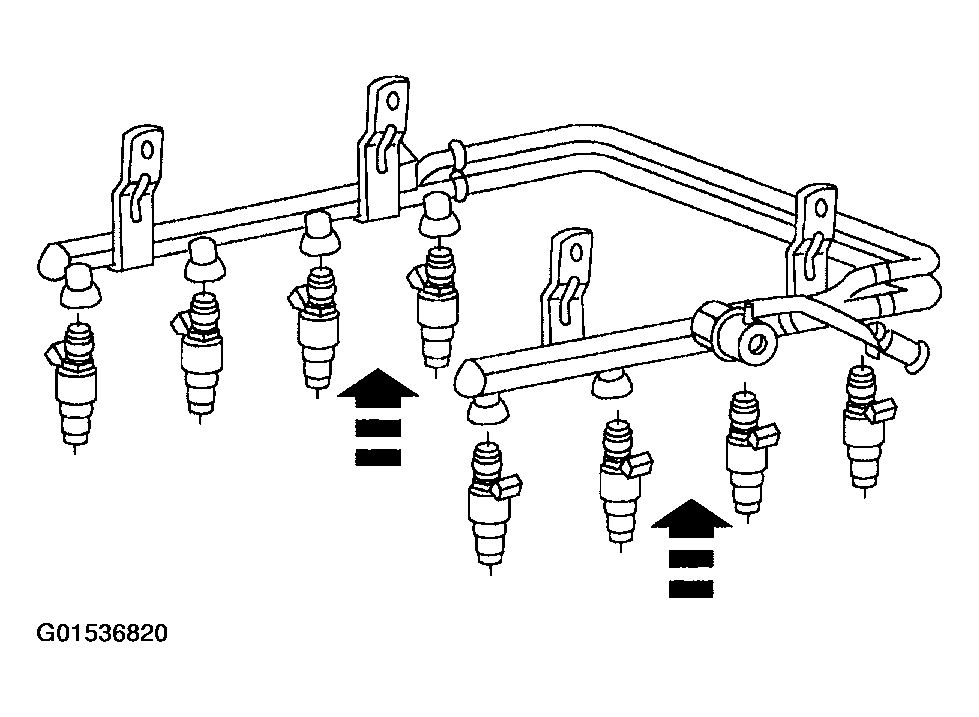

Fig 3: Installing Fuel Injectors Into Fuel Injection Supply Manifold

Courtesy of FORD MOTOR CO.

Install the fuel injectors into the fuel injection supply manifold.
Install the fuel injection supply manifold.

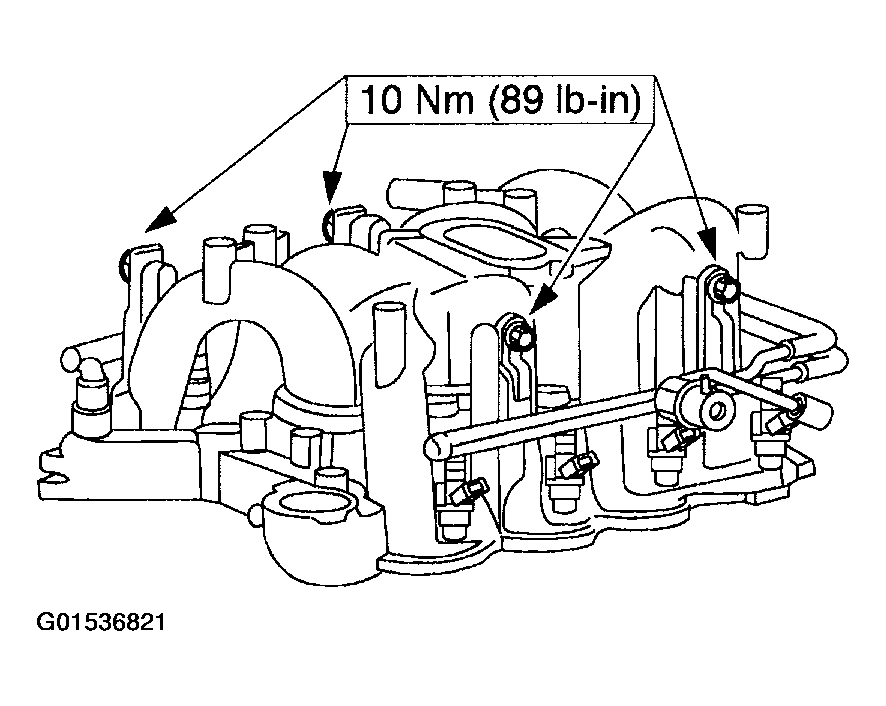

Fig 4: Installing Fuel Injection Supply Manifold
Courtesy of FORD MOTOR CO.
