Piston - Pin Connecting Rod, Floating Pin: Disassembly

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the clips.
    Fig 1: Removing Clips
    G01536792Courtesy of FORD MOTOR CO.
  2. Remove the piston pin (6135) from the piston (6108) and connecting rod assembly.
    Fig 2: Removing Piston Pin From Piston And Connecting Rod Assembly
    G01536793Courtesy of FORD MOTOR CO.
  3. Remove the connecting rod (6200) from the piston.

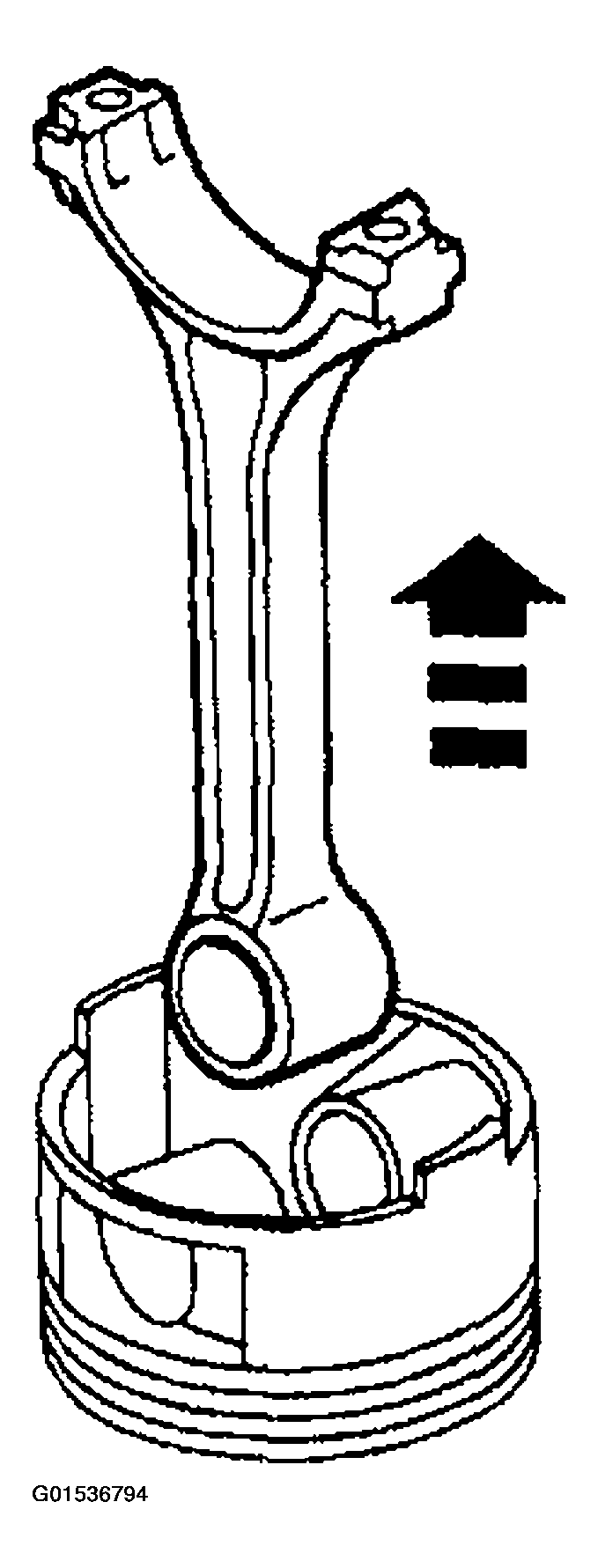

    Fig 3: Removing Connecting Rod
    G01536794Courtesy of FORD MOTOR CO.
  4. Clean and inspect the piston and connecting rod. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .
