Engine Front Cover: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove both of the valve covers. For additional information, refer to VALVE COVER LH , VALVE COVER RH - 4.6L  or VALVE COVER RH - 5.4L .
  3. Remove the radiator. For additional information, refer to ENGINE COOLING .
  4. Remove the water pump. For additional information, refer to ENGINE COOLING .
  5. Raise and support the vehicle.
  6. Remove the top bolts and the lower bolt and position the power steering pump aside.

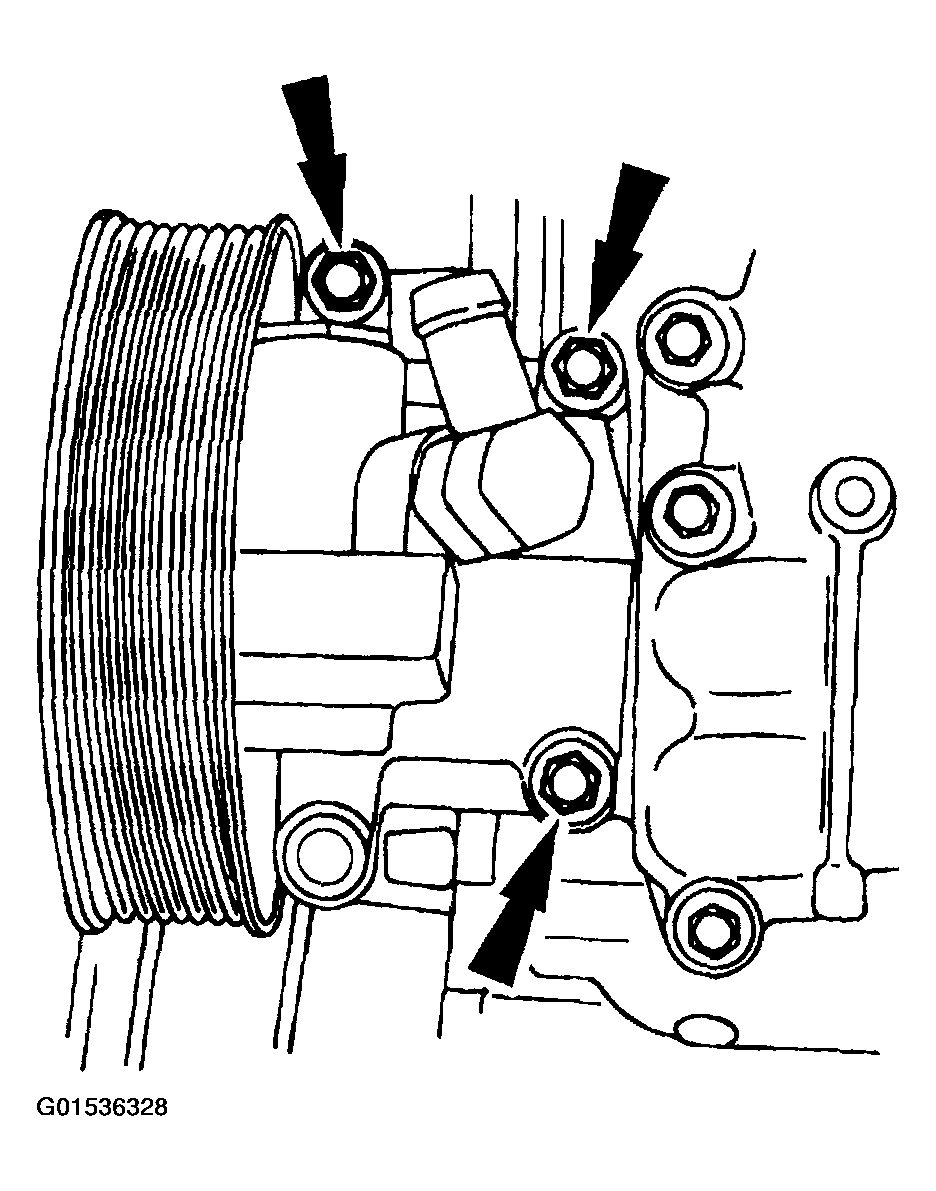

    Fig 1: Removing Power Steering Pump Bolts
    G01536328Courtesy of FORD MOTOR CO.
  7. Disconnect the crankshaft position (CKP) sensor electrical connector.

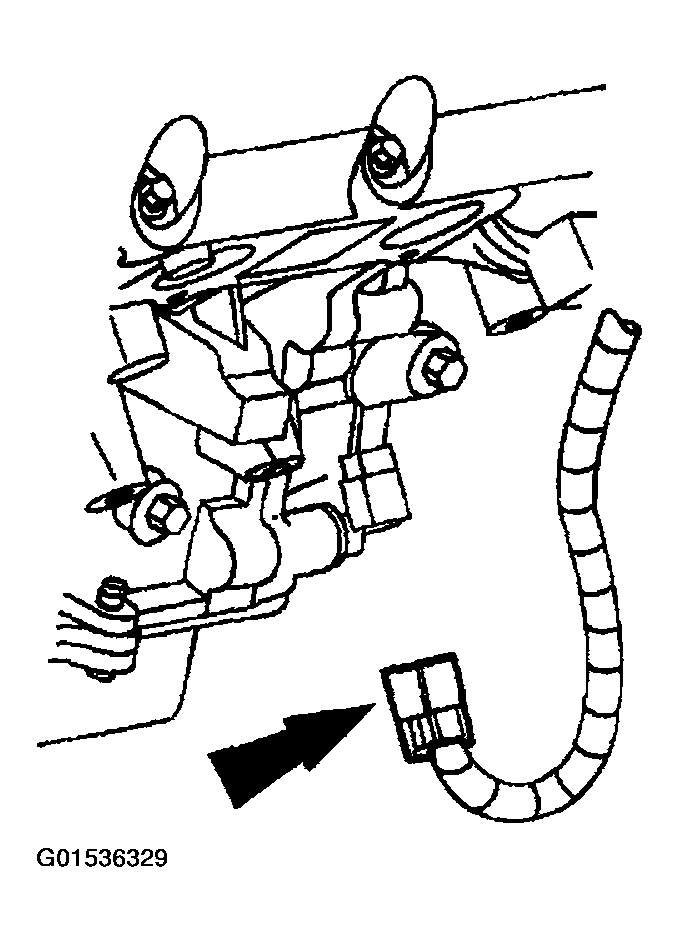

    Fig 2: Disconnecting Crankshaft Position (CKP) Sensor Electrical Connector
    G01536329Courtesy of FORD MOTOR CO.
  8. Remove the drain plug and drain the engine oil.
    Fig 3: Removing Drain Plug
    G01536330Courtesy of FORD MOTOR CO.
  9. Remove the front bolts.

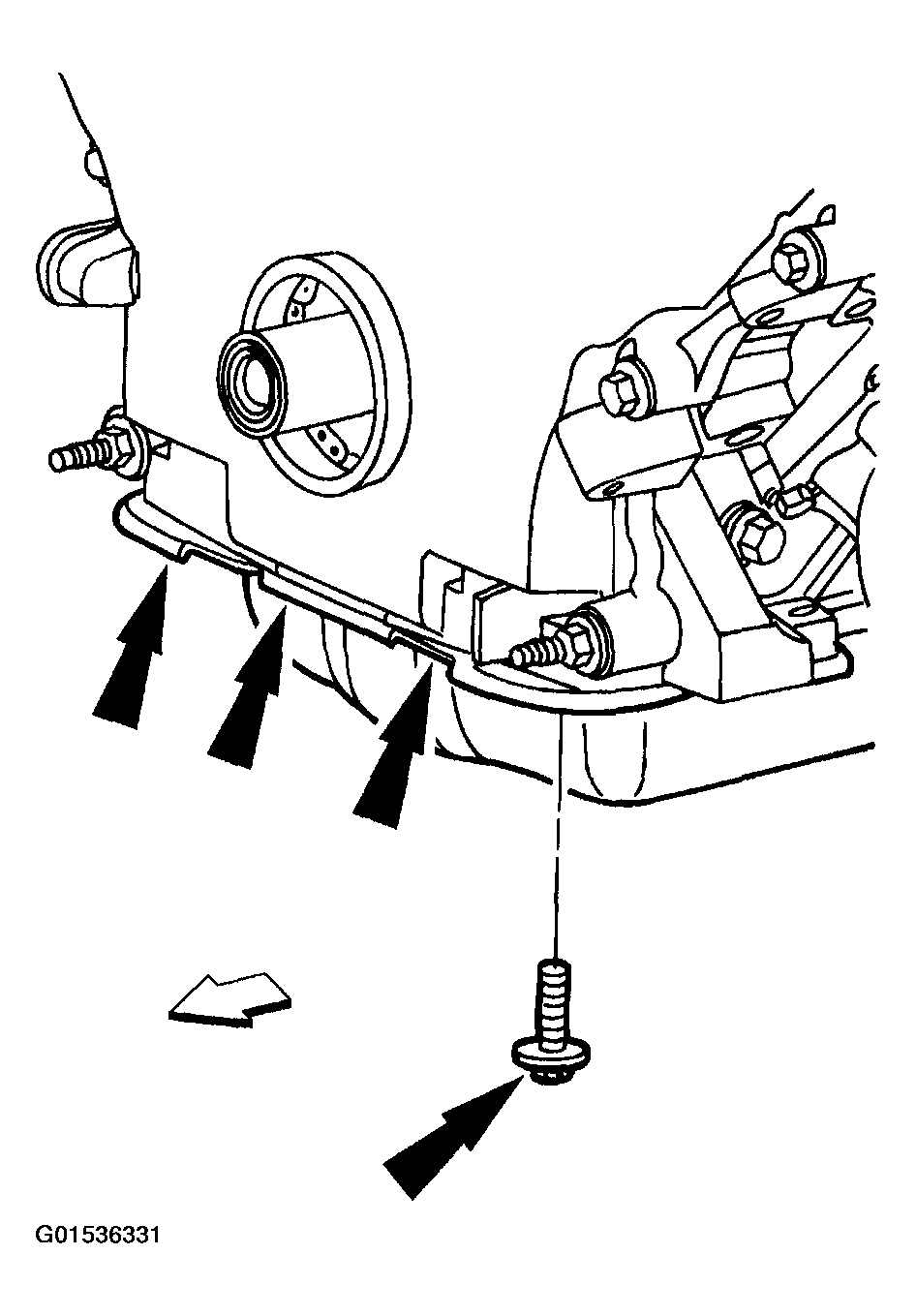

    Fig 4: Removing Front Oil Pan Bolts
    G01536331Courtesy of FORD MOTOR CO.
  10. Remove the crankshaft front seal. For additional information, refer to CRANKSHAFT FRONT SEAL .
  11. Lower the vehicle.
  12. Disconnect the camshaft position (CMP) sensor electrical connection.

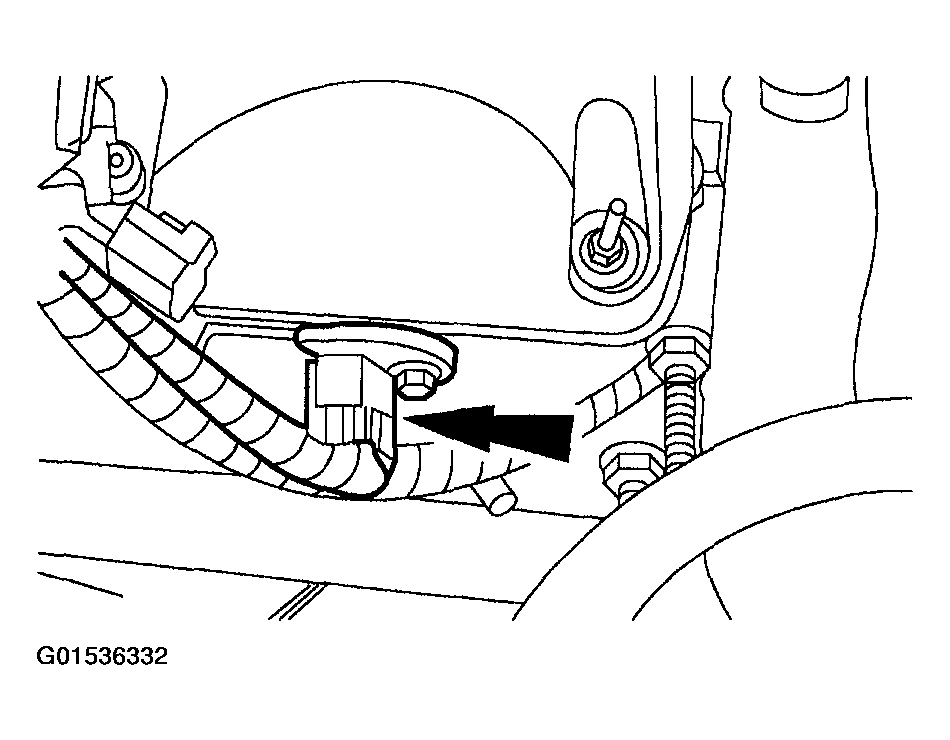

    Fig 5: Disconnecting Camshaft Position (CMP) Sensor Connector
    G01536332Courtesy of FORD MOTOR CO.
  13. Remove the bolt and the belt idler pulley.
    Fig 6: Removing Belt Idler Pulley
    G01536333Courtesy of FORD MOTOR CO.
  14. Remove the bolts.
    Fig 7: Removing Front Cover Bolts
    G01536334Courtesy of FORD MOTOR CO.
    15. CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.
    Fig 8: Removing Engine Front Cover
    G01536335Courtesy of FORD MOTOR CO.
  15. Remove the engine front cover from the front cover to cylinder block dowel.
    • Remove the engine front cover gasket.
    • Clean the mating surfaces with silicone gasket remover and metal surface prep. Follow the directions on the packaging.
    • Inspect the mating surfaces.
