Rocker Arm: Installation

WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

Install the rocker arms.
- Position the rocker arms.
- Hand-start the bolts.
- Tighten the bolts in two stages.
  - Stage 1: Tighten to 5 N.m (44 lb-in).
  - Stage 2: Tighten to 32 N.m (24 lb-ft.).

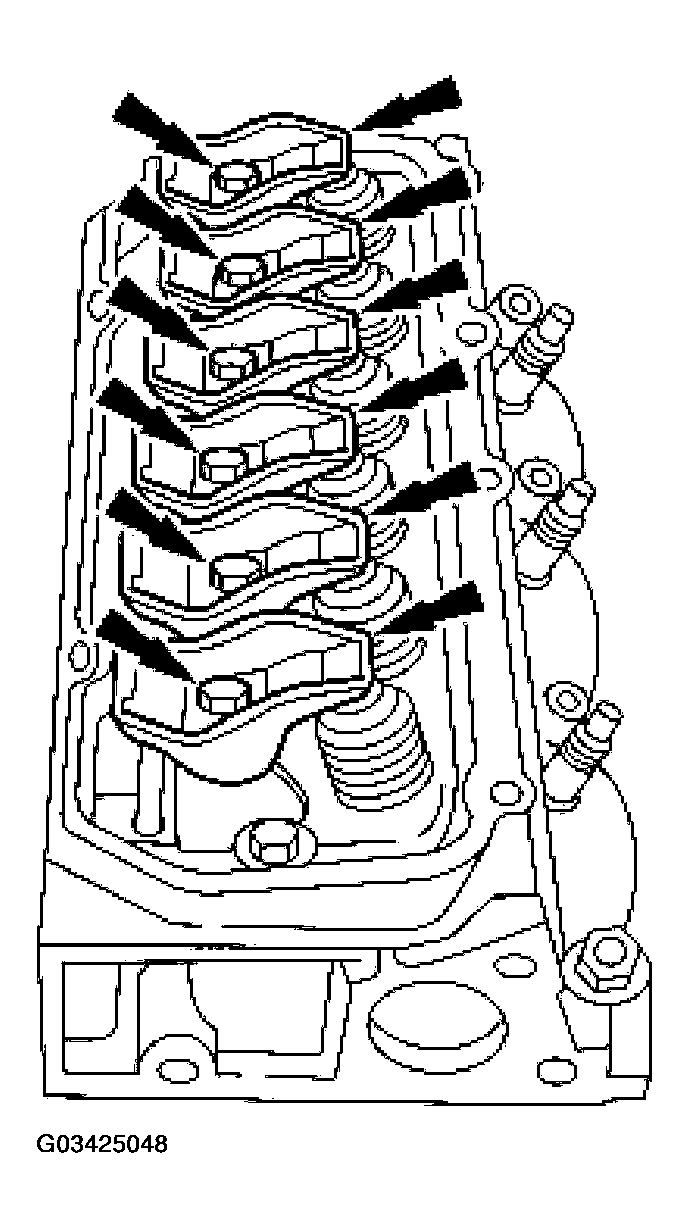

    Fig 1: Installing Rocker Arms
    Courtesy of FORD MOTOR CO.
Install the valve cover. Refer to VALVE COVER - RH and VALVE COVER - LH .
