Keyless Entry Keypad

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. For additional information, refer to INTERIOR TRIM - LS .
  2. Remove the components in the order indicated in the illustration and table.

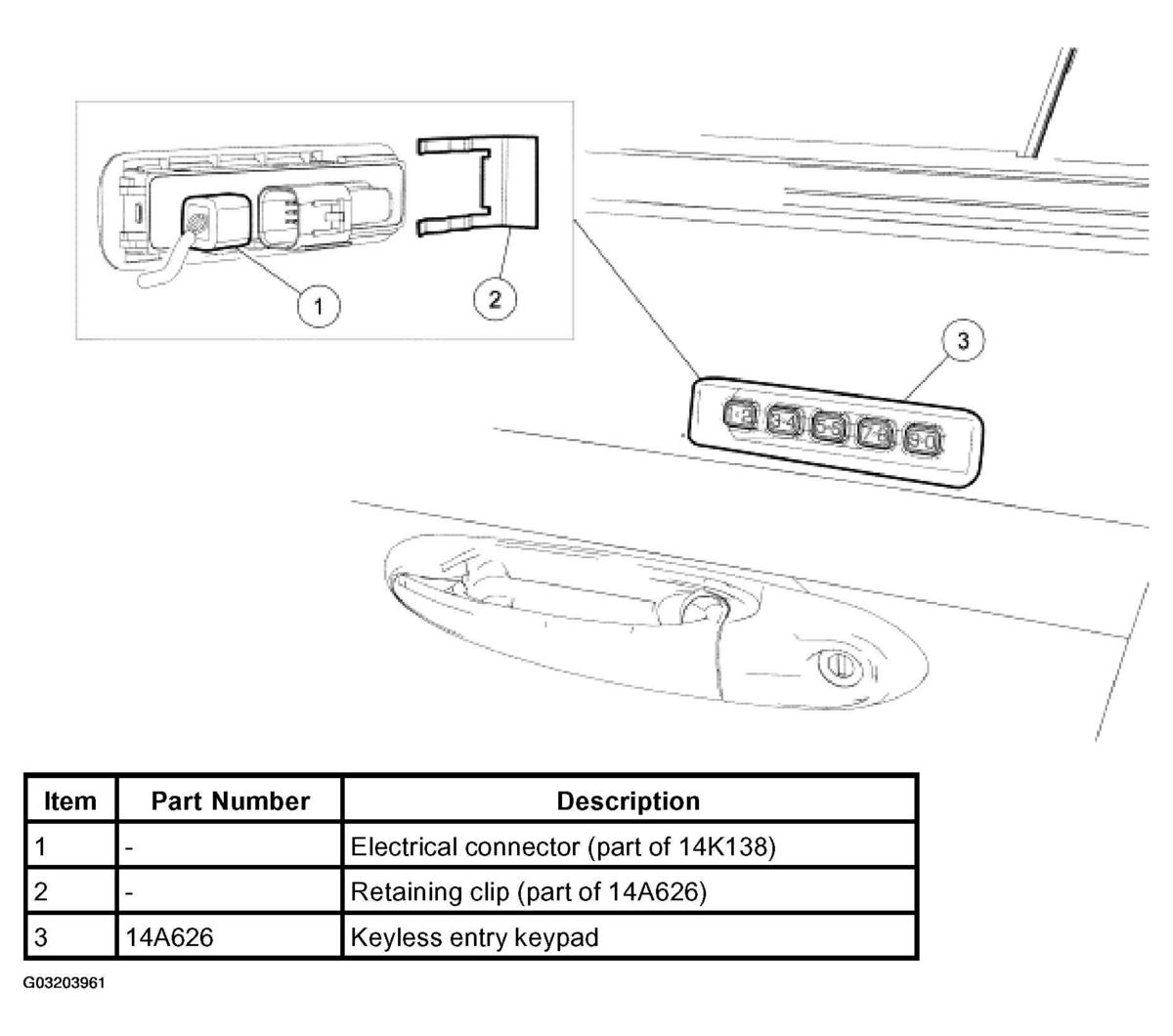

    Fig 1: Identifying Keyless Entry Keypad
    G03203961Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
