Engine - Upper Components

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

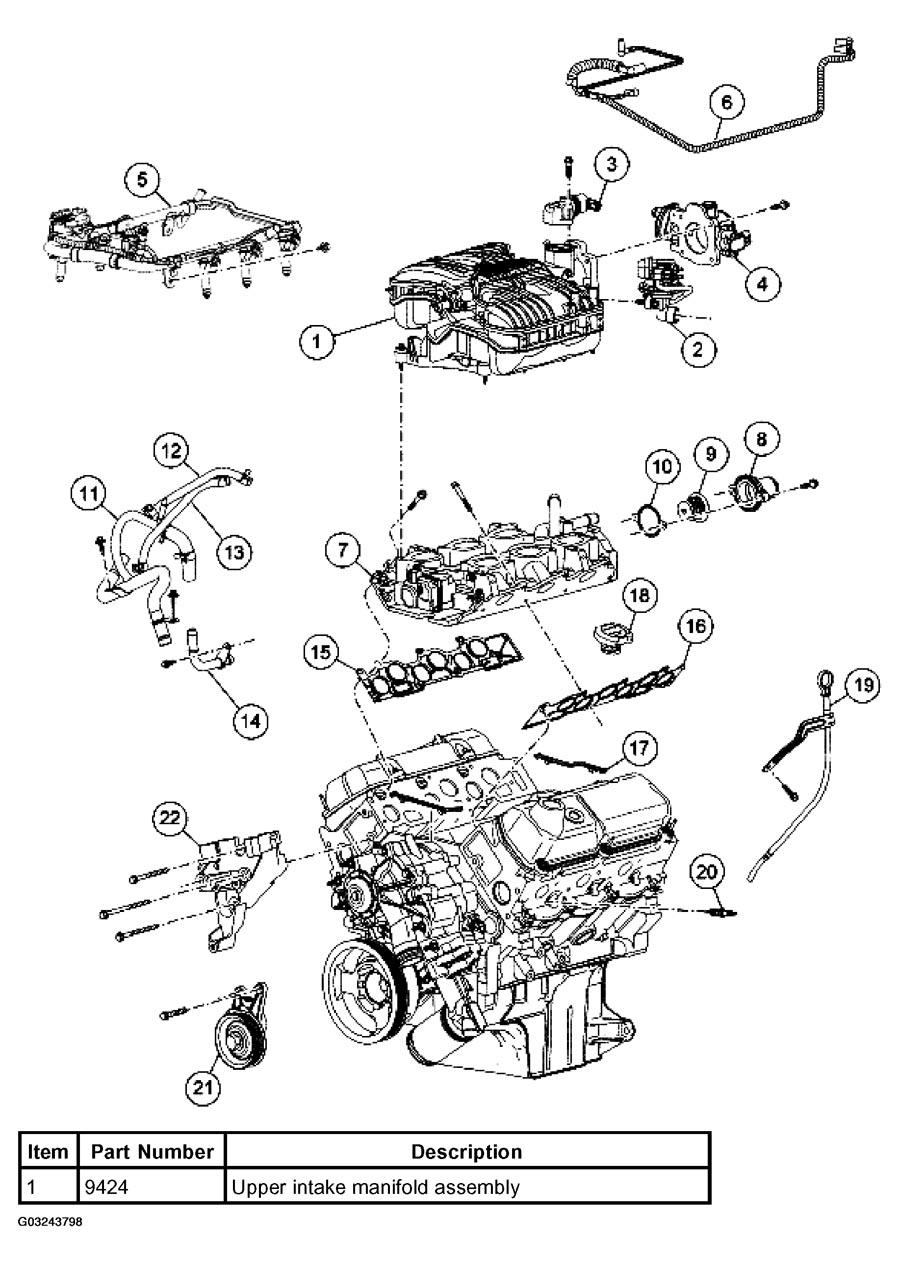

Fig 1: Identifying Engine - Upper Components (Item 1)

Courtesy of FORD MOTOR CO.

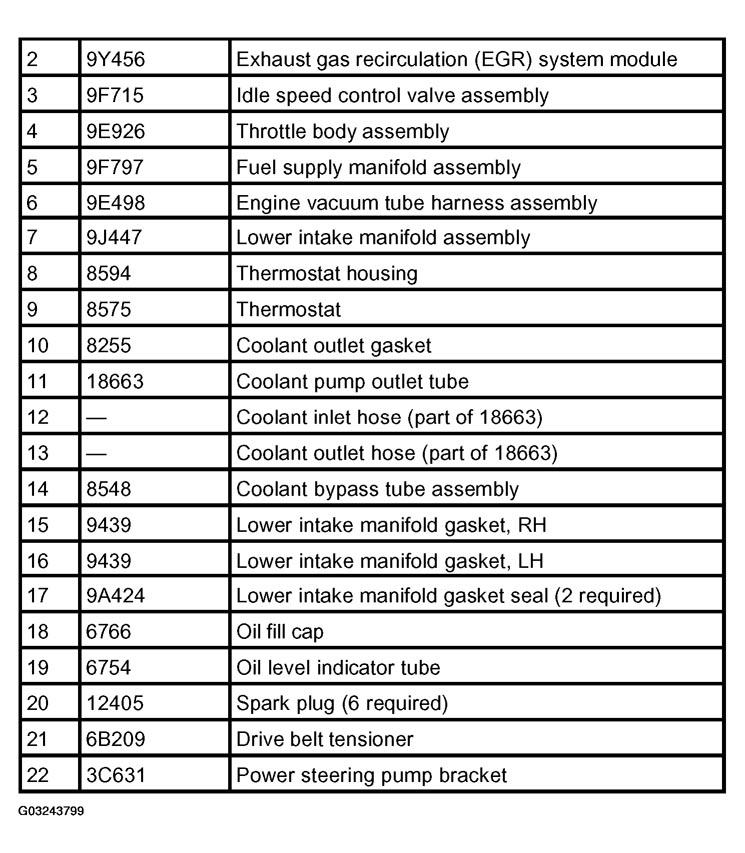

Fig 2: Identifying Engine - Upper Components (Items 2-22)

Courtesy of FORD MOTOR CO.
