Section 585 (Electronic Features)
›
Diagnosis And Testing
›
Navigation System
›
Connector Circuit Reference
›
Anti-lock Brake System Module C155
Anti-lock Brake System Module C155
WARNING:
This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

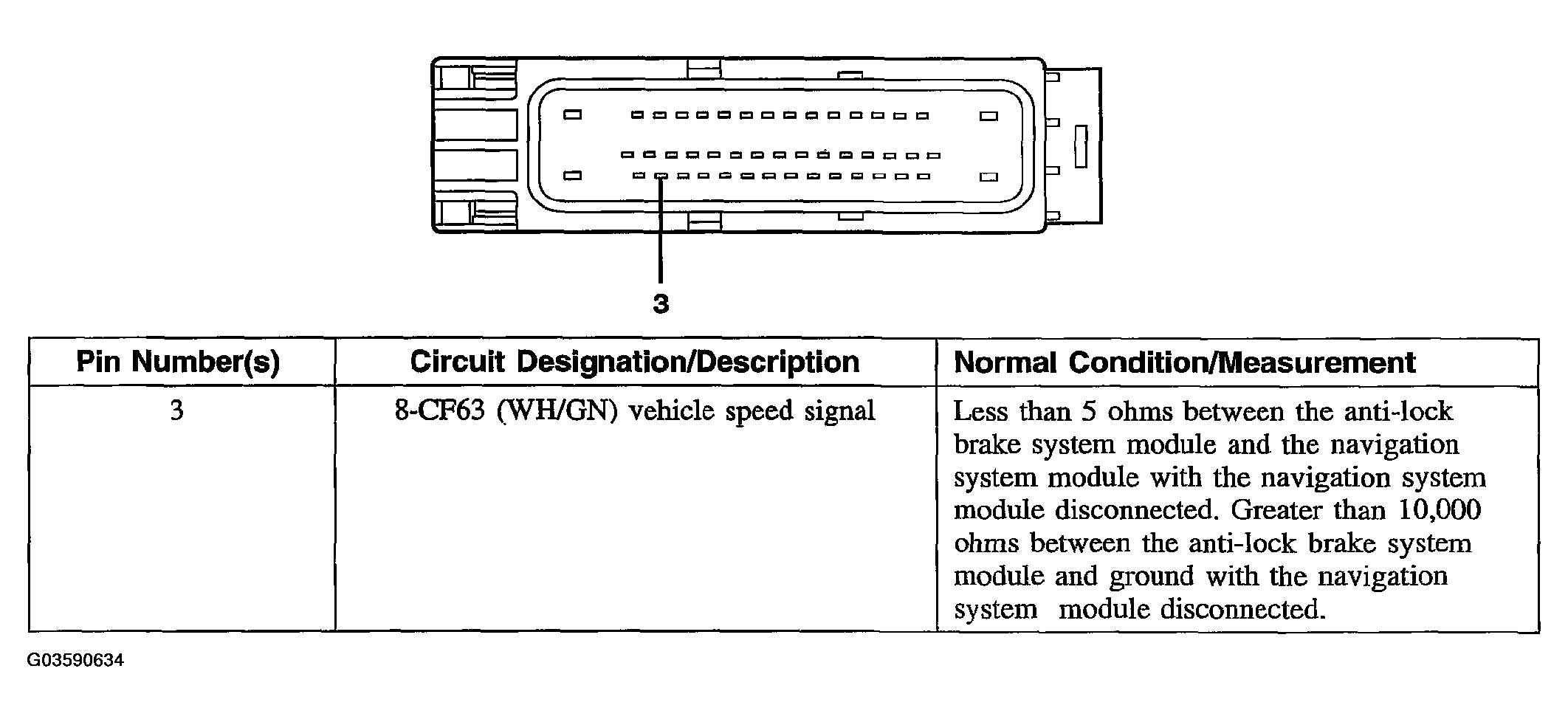

Fig 1: Identifying Anti-Lock Brake System Module C155
Courtesy of FORD MOTOR CO.
