Safety Belt Buckle - Front Row: Removal

  1. Move the seat fully forward.
  2. Remove the cover.
    Fig 1: Removing Safety Belt Buckle Cover
    G03457005Courtesy of FORD MOTOR CO.
  3. Remove the safety belt buckle.
    Fig 2: Removing Safety Belt Buckle
    G03457006Courtesy of FORD MOTOR CO.
  4. Disconnect the electrical connectors.

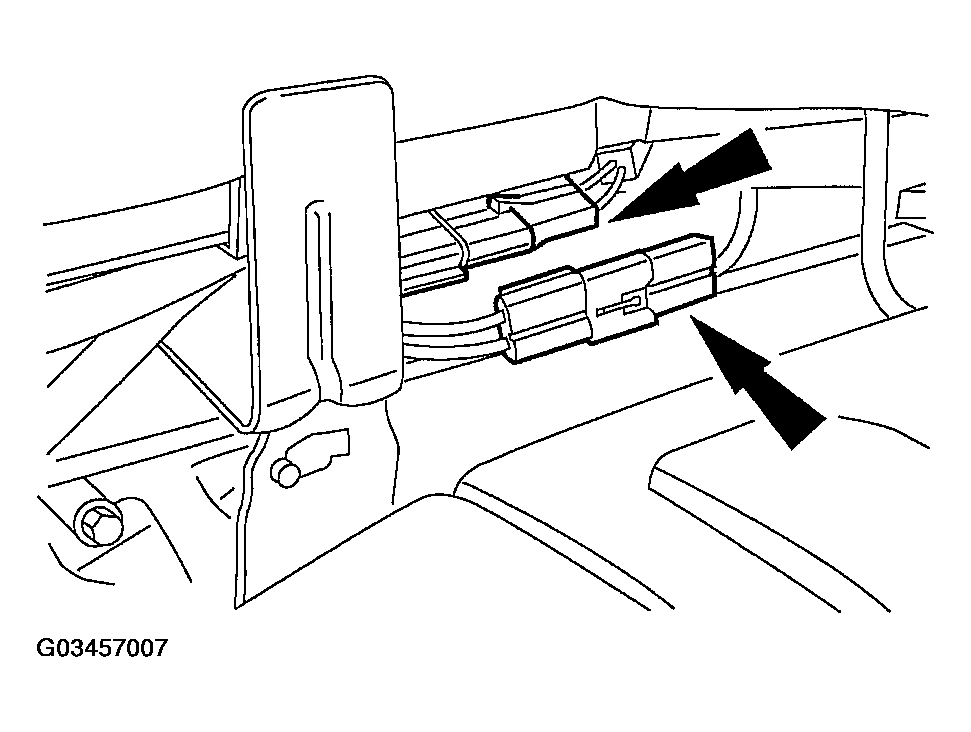

    Fig 3: Disconnecting Electrical Connectors
    G03457007Courtesy of FORD MOTOR CO.
