Removal And Installation: Pump-CII: Removal

  1. Remove the drive belt. For additional information, refer to ACCESSORY DRIVE .
  2. Disconnect the power steering reservoir pump hose (3E525).

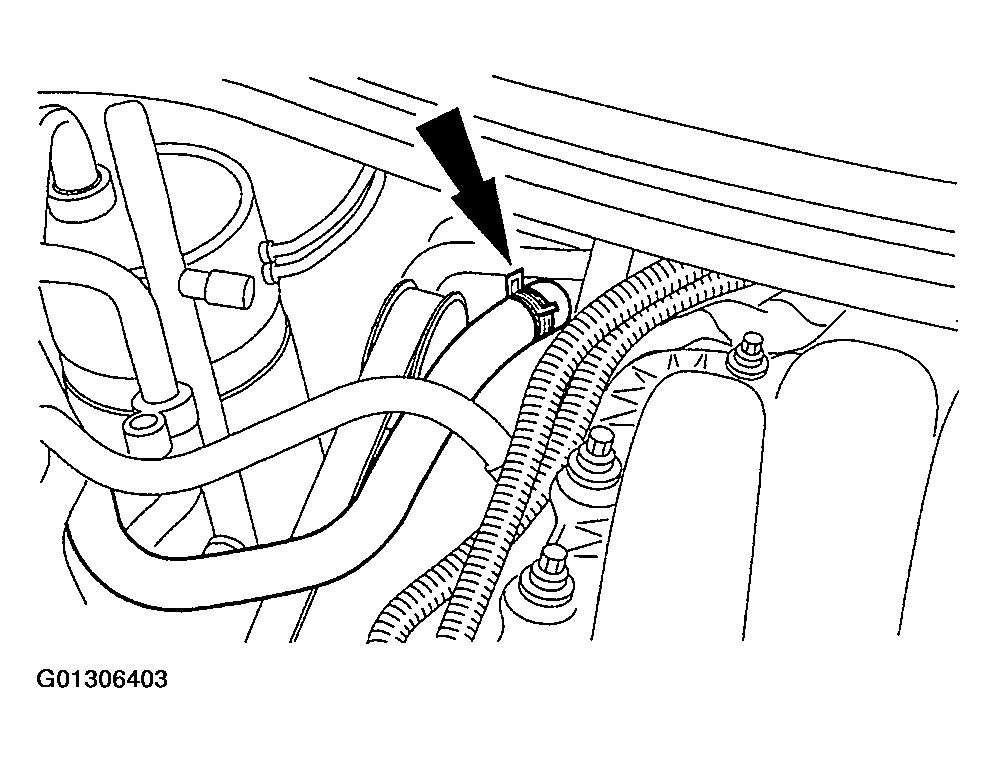

    Fig 1: Disconnecting Power Steering Reservoir Pump Hose
    G01306403Courtesy of FORD MOTOR CO.
  3. Disconnect the power steering hose (3A719). Remove and discard the seal.

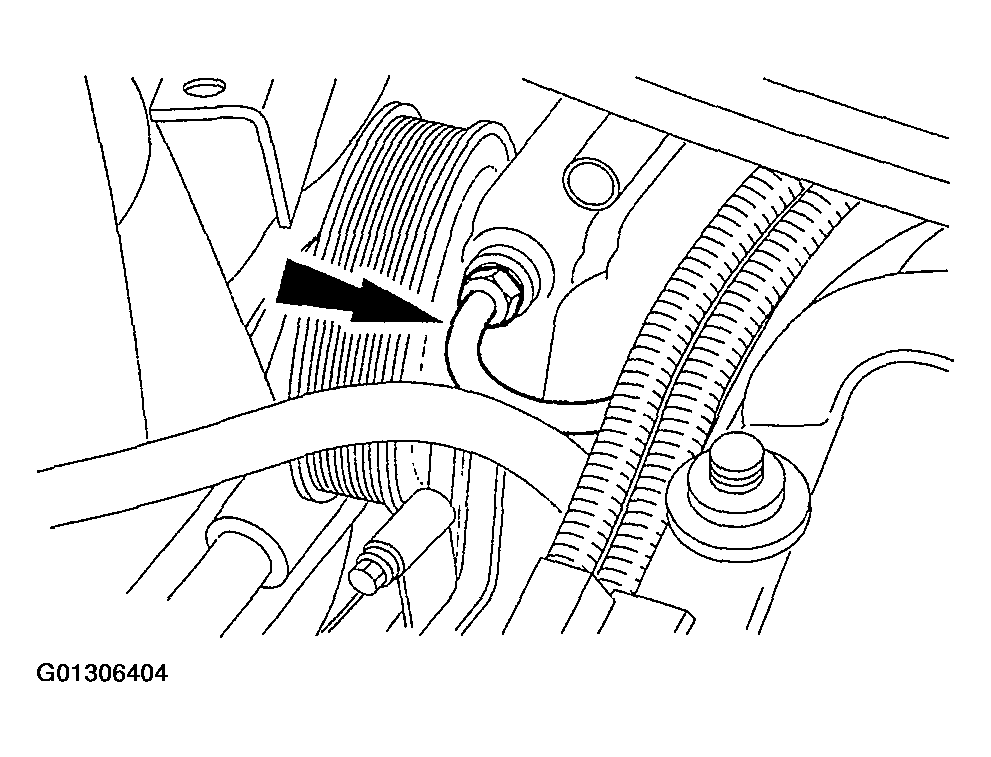

    Fig 2: Disconnecting Power Steering Hose
    G01306404Courtesy of FORD MOTOR CO.
  4. Remove the four bolts, two brackets and power steering pump (3A674).

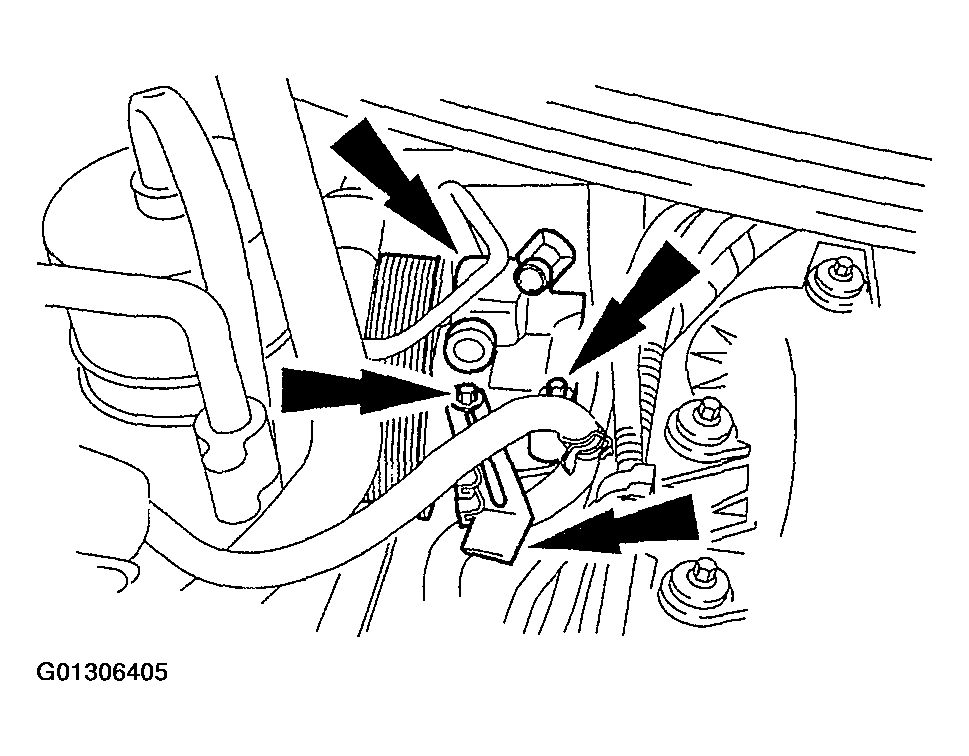

    Fig 3: Removing Four Bolts
    G01306405Courtesy of FORD MOTOR CO.
  5. Remove the power steering pump pulley. For additional information, refer to PULLEY - CIII PUMP .
