Automatic Transmission Cooling
›
Diagnosis And Testing
›
Transaxle Cooling
›
Symptom Chart
Symptom Chart

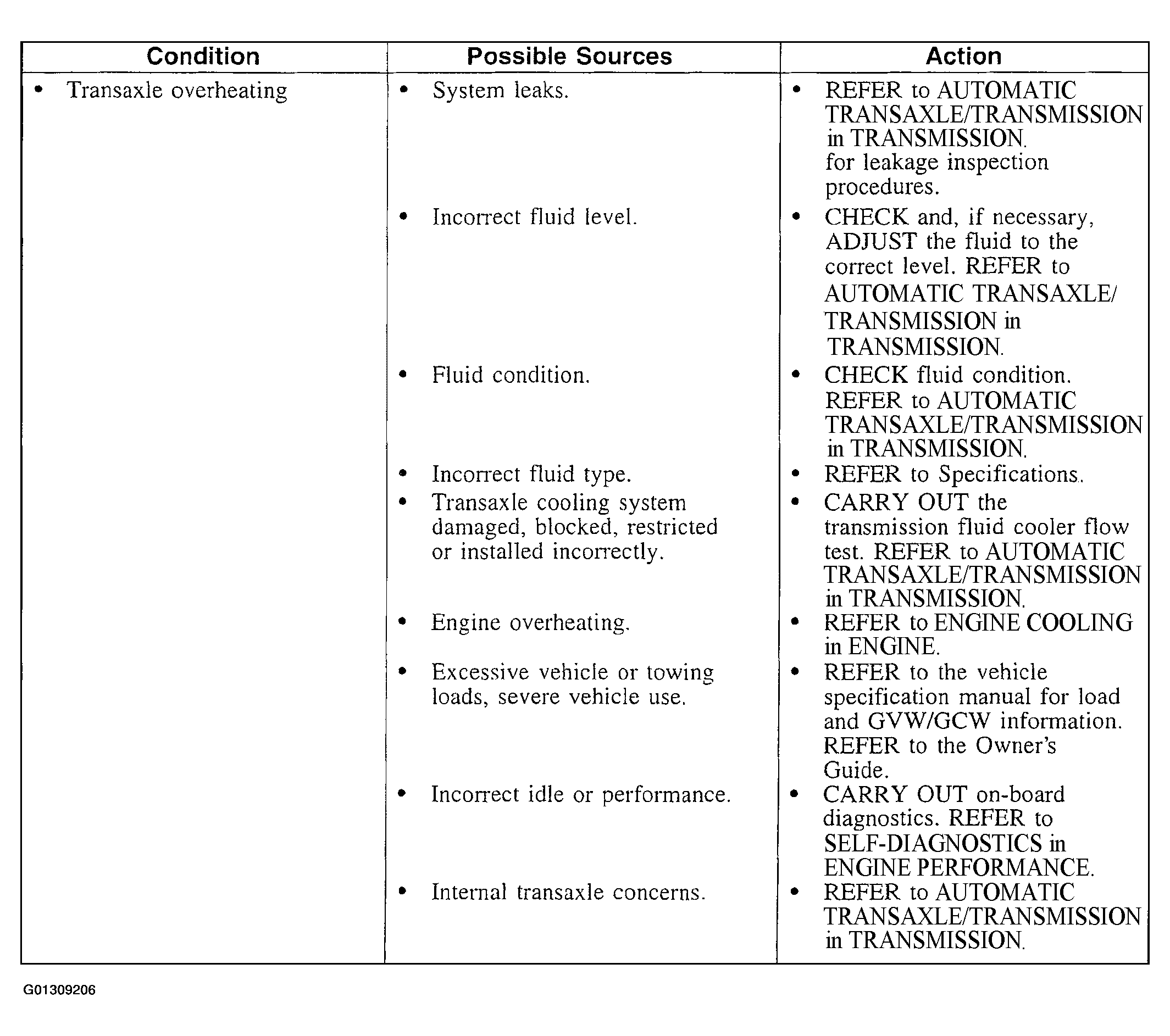

Fig 1: Transaxle Cooling System Problem Symptom Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
