Pinpoint Test C: The Control Linkage Is Binding

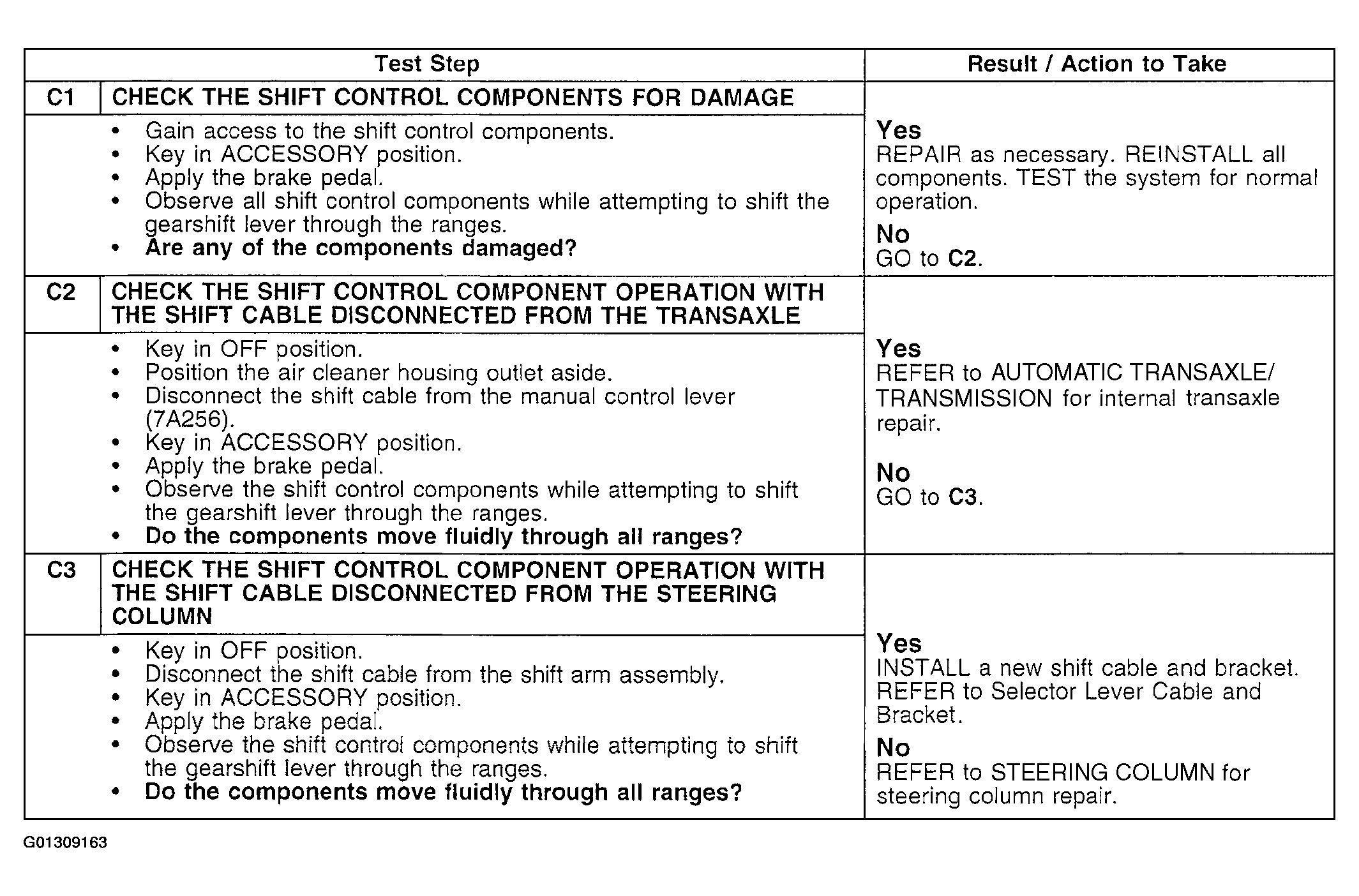

Fig 1: Pinpoint Test C: Control Linkage Is Binding (Steps C1-C3)
G01309163Courtesy of FORD MOTOR CO.
