External Controls
›
Symptom Chart
Symptom Chart

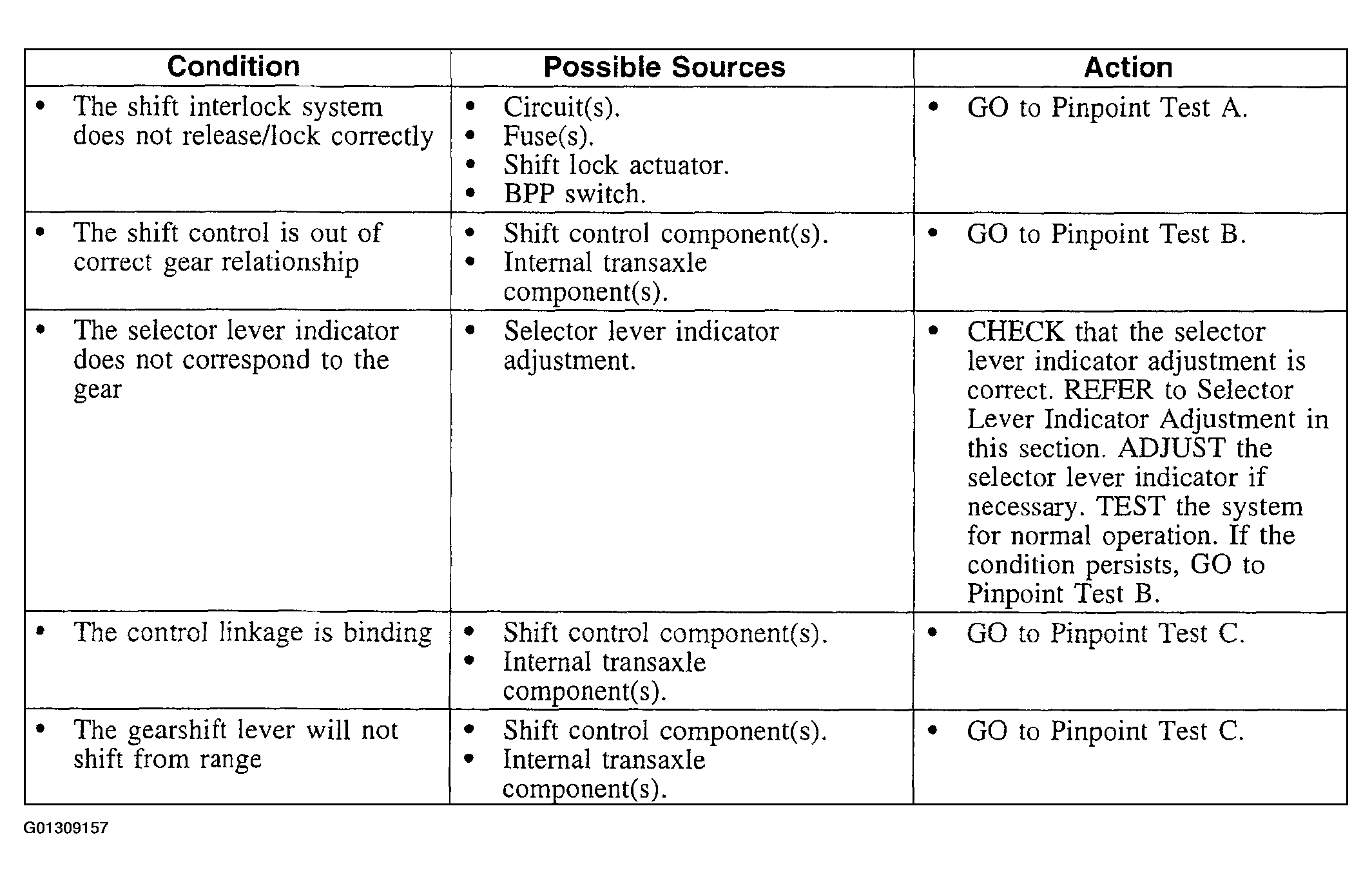

Fig 1: Automatic Transaxle/Transmission External Controls Problems Symptom Chart (1 Of 2)
Courtesy of FORD MOTOR CO.

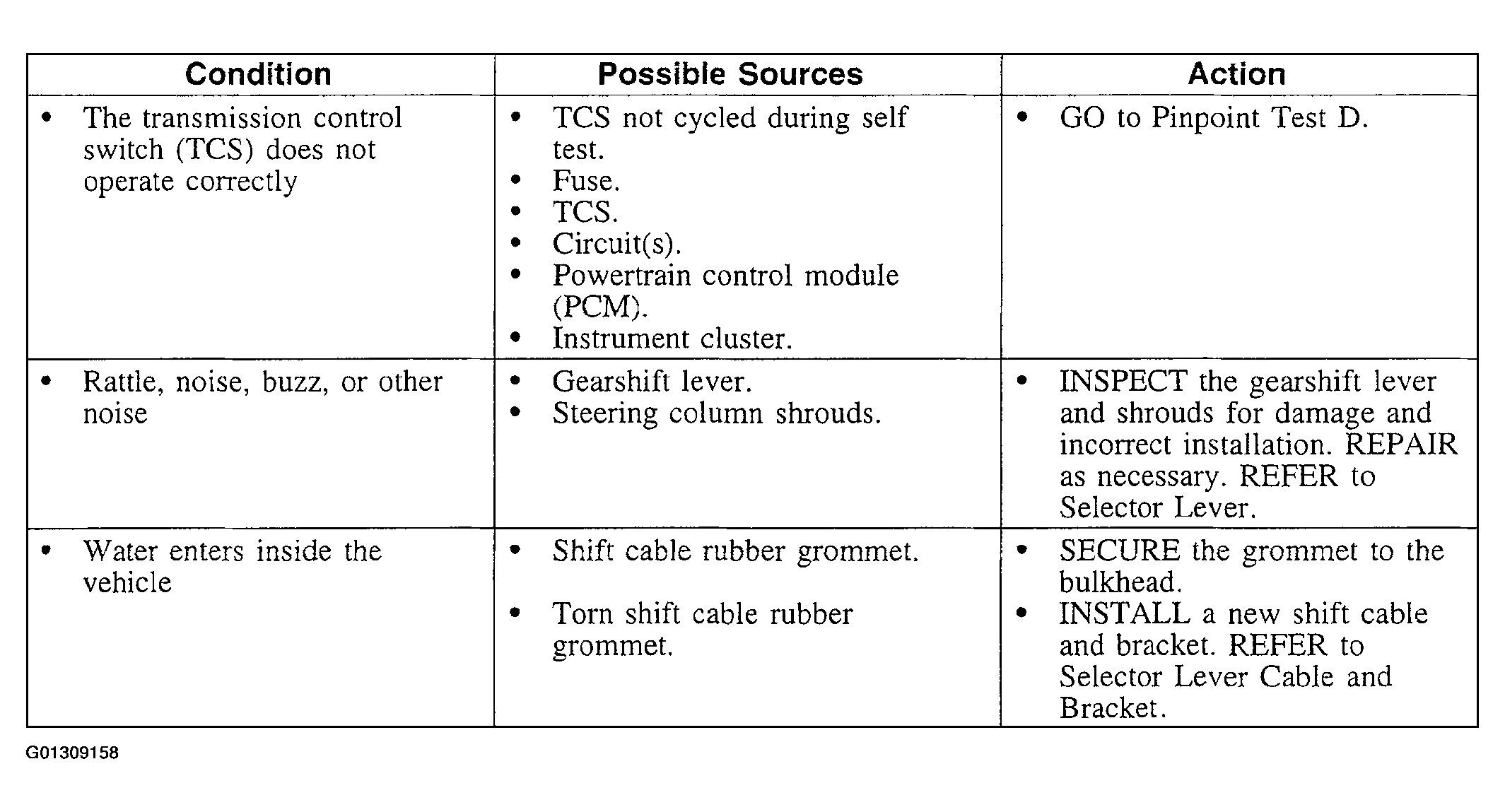

Fig 2: Automatic Transaxle/Transmission External Controls Problems Symptom Chart (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
