Main Control Components

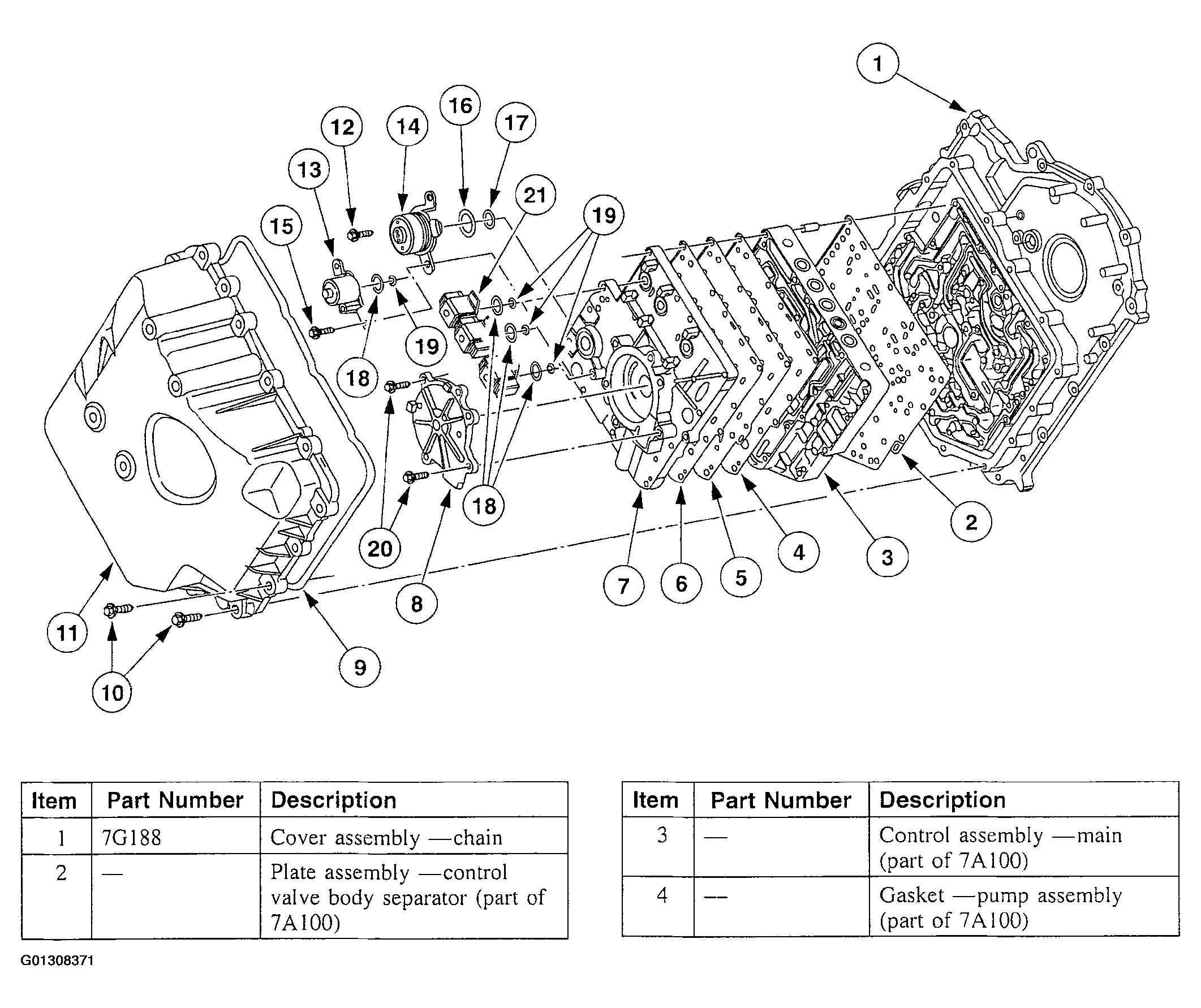

Fig 1: Locating Transaxle Main Control Components (1 Of 2)
Courtesy of FORD MOTOR CO.

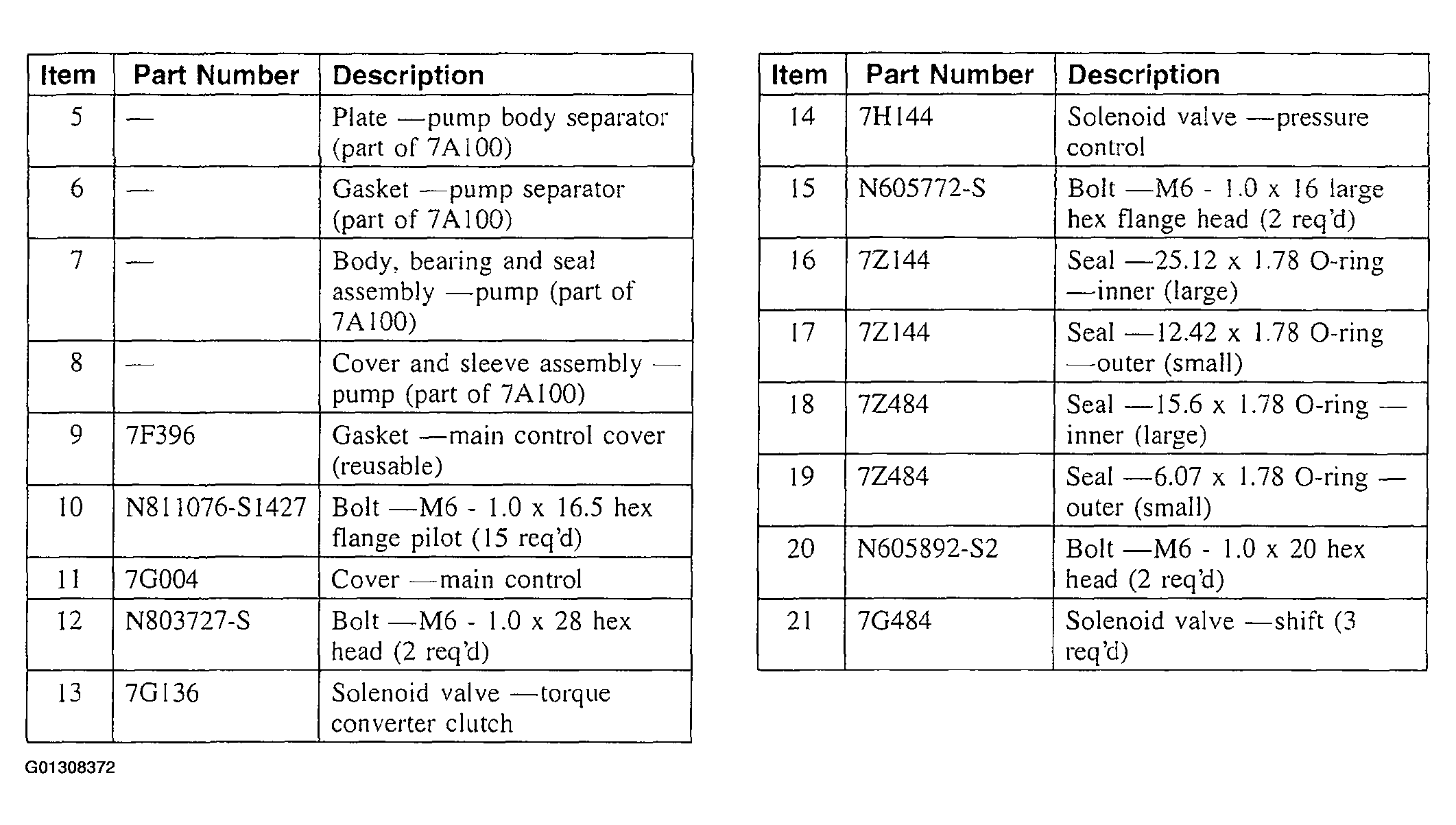

Fig 2: Locating Transaxle Main Control Components (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
