Main Components and Functions

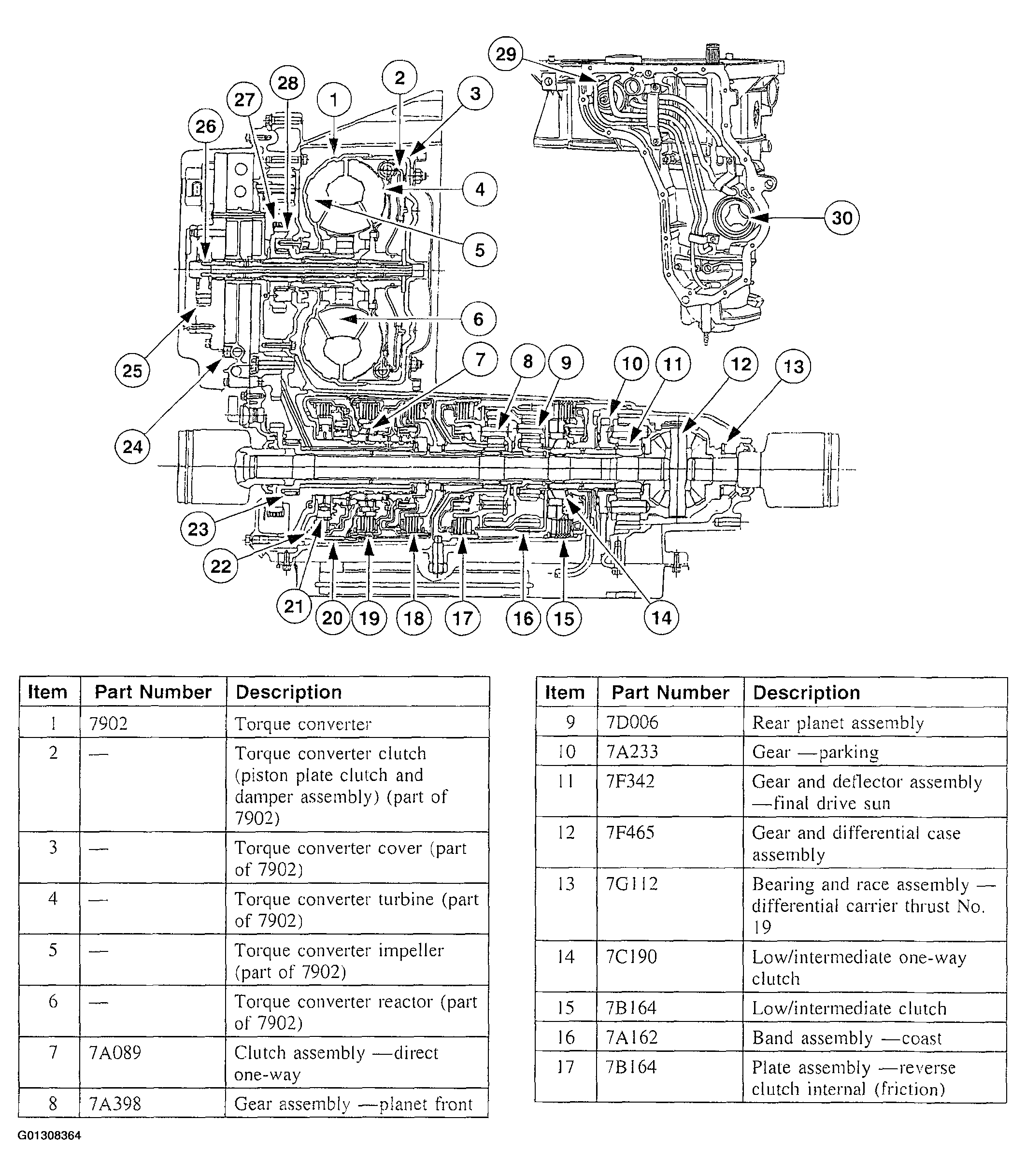

Fig 1: Locating Transaxle Main Components
G01308364Courtesy of FORD MOTOR CO.

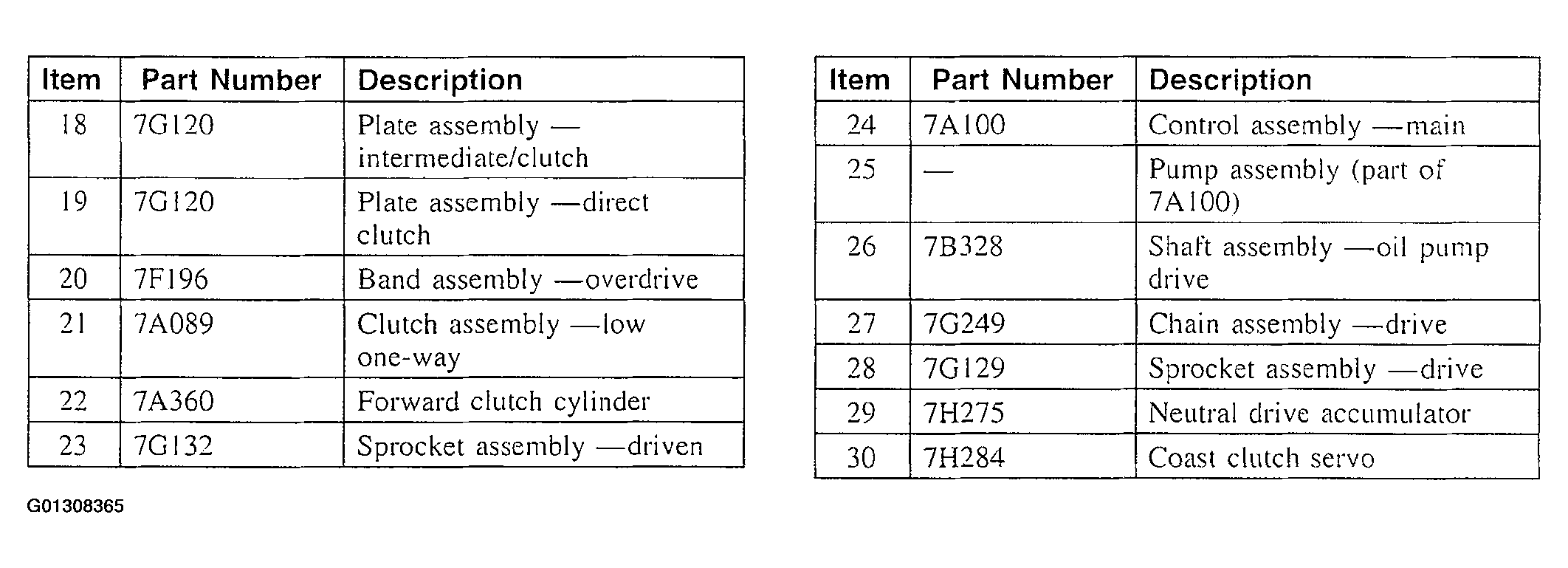

Fig 2: Transaxle Main Components Description
G01308365Courtesy of FORD MOTOR CO.
