Drive Sprocket/Turbine Shaft: Assembly

  1. Make sure that the seals are mated correctly.
    Fig 1: Identifying Correct Installation Of Seal
    G01308823Courtesy of FORD MOTOR CO.
  2. Install the drive sprocket/turbine shaft seal and O-ring.
    • Install the drive sprocket/turbine shaft O-ring.
    • Install the drive sprocket/turbine shaft seal.

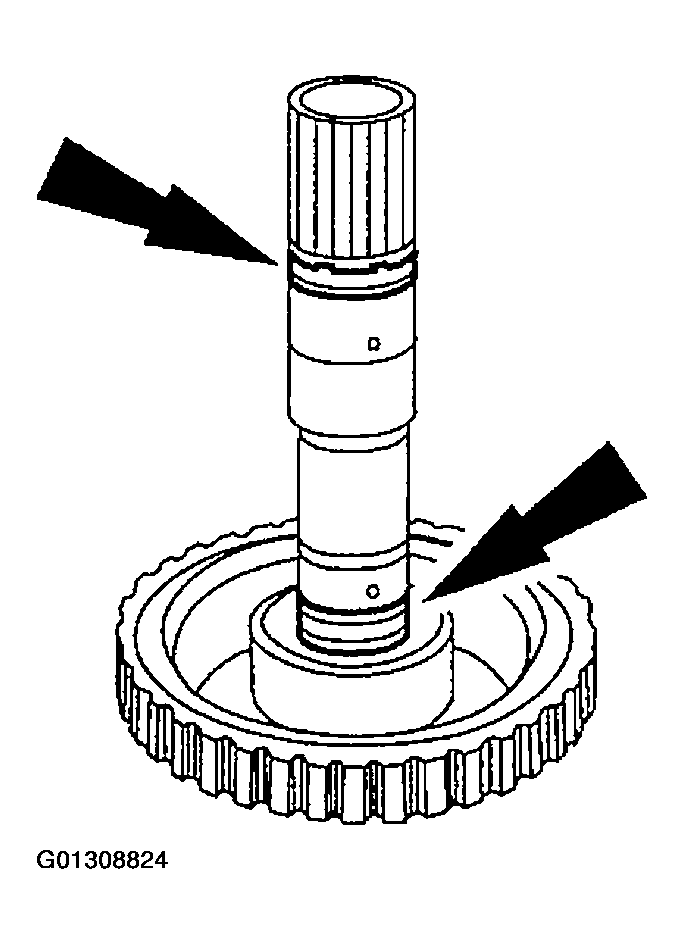

      Fig 2: Installing Drive Sprocket/Turbine Shaft Seal And O-Ring
      G01308824Courtesy of FORD MOTOR CO.
  3. Install the turbine shaft front seal.

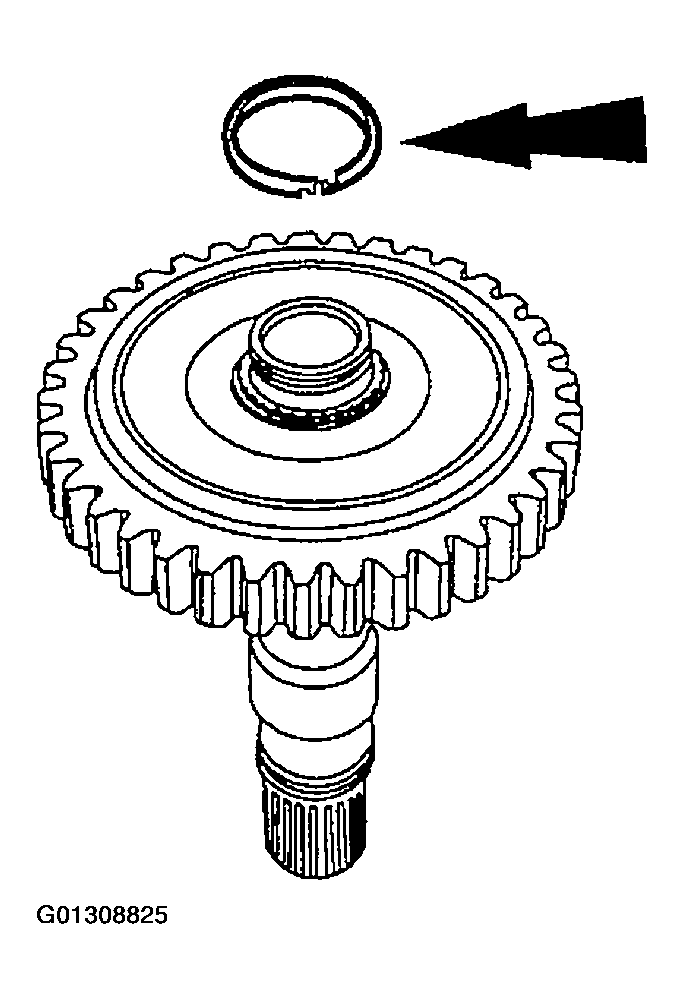

    Fig 3: Installing Turbine Shaft Front Seal
    G01308825Courtesy of FORD MOTOR CO.
  4. Make sure that the seal is locked correctly.
    Fig 4: Identifying Correct Installation Of Seal
    G01308826Courtesy of FORD MOTOR CO.
