Sun and Shell Assembly - Disassembly: Notes

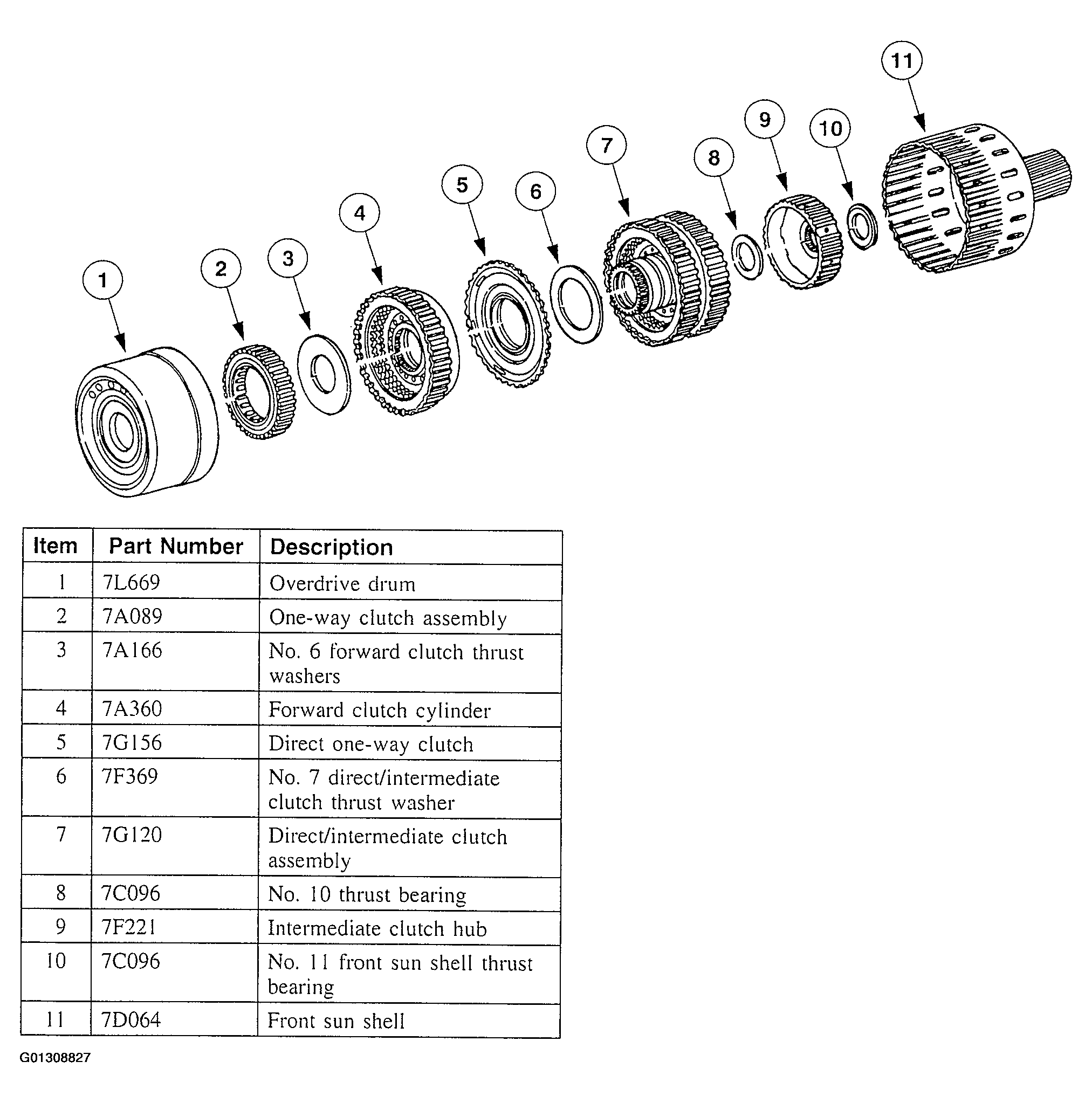

Fig 1: Exploded View Of Sun And Shell Assembly
G01308827Courtesy of FORD MOTOR CO.
