Band and Clutch Application Chart A

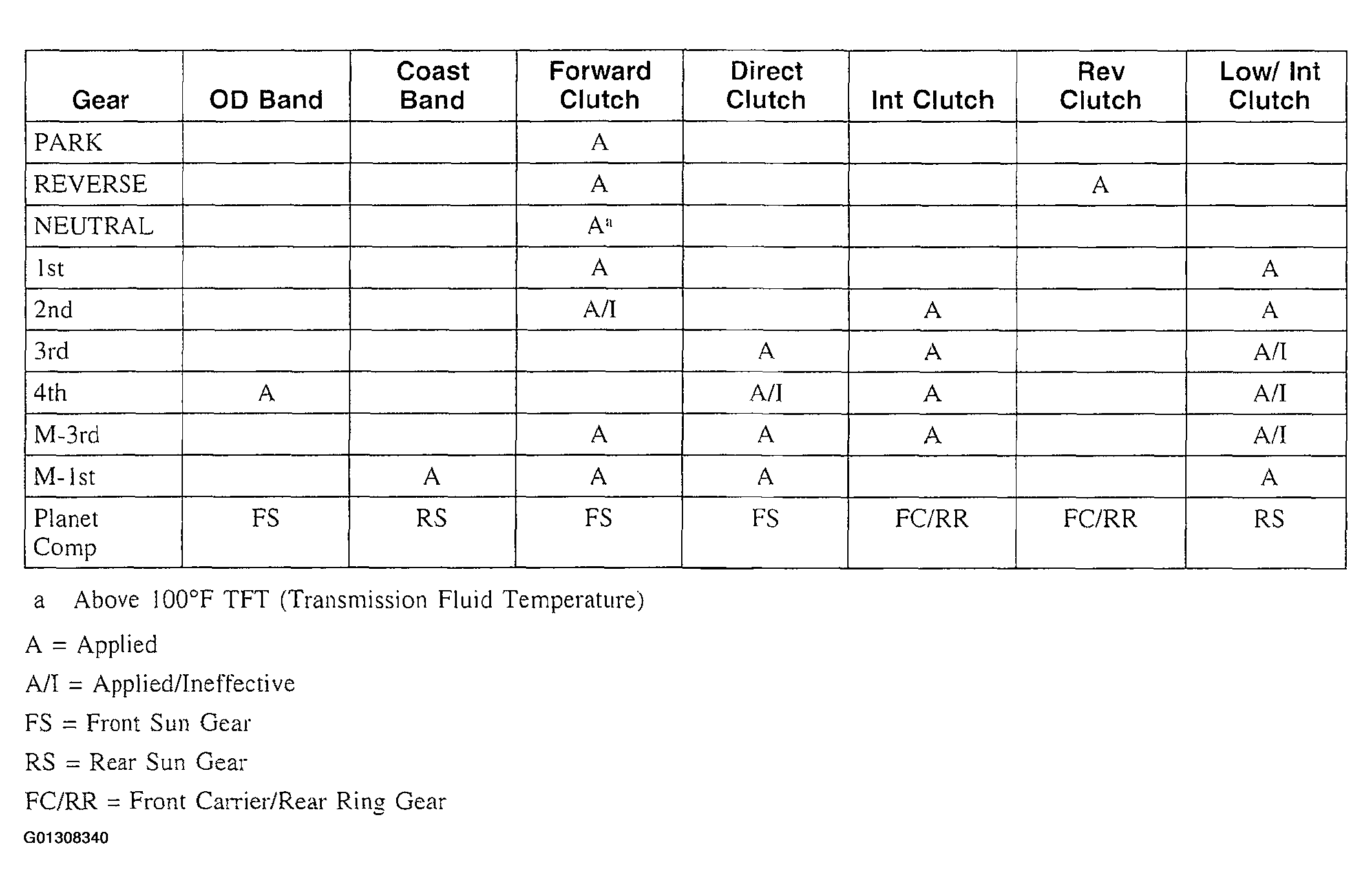

Fig 1: Band and Clutch Application Chart A
G01308340Courtesy of FORD MOTOR CO.
