Home › Ford › 2003 › Windstar Limited › Repair and Diagnosis › Engine Mechanical › Mechanical › Engine › Description And Operation › Engine › Engine-External Components

Engine-External Components

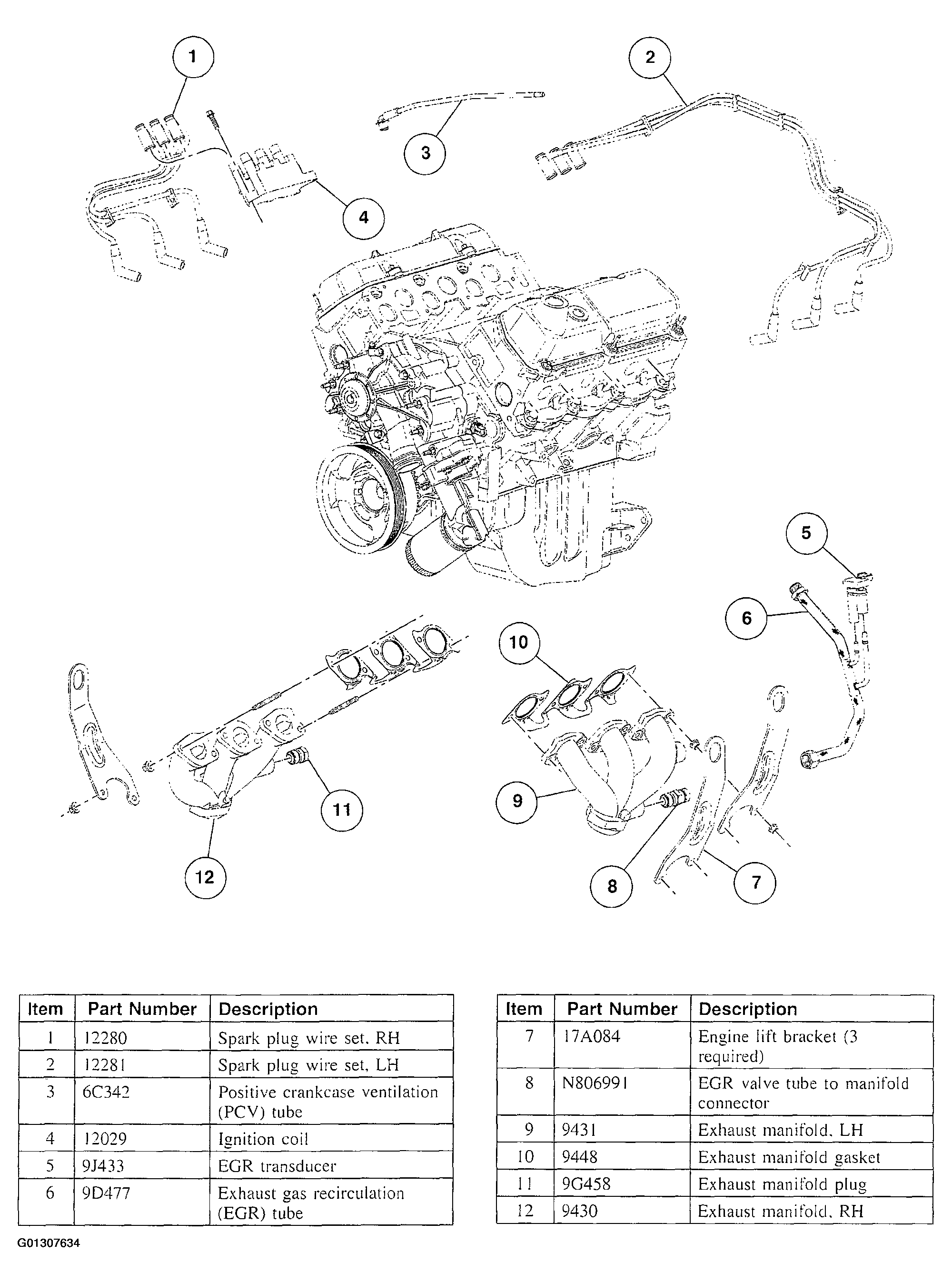

Fig 1: Exploded View Of Engine-External Components
G01307634Courtesy of FORD MOTOR CO.
